Description
Description

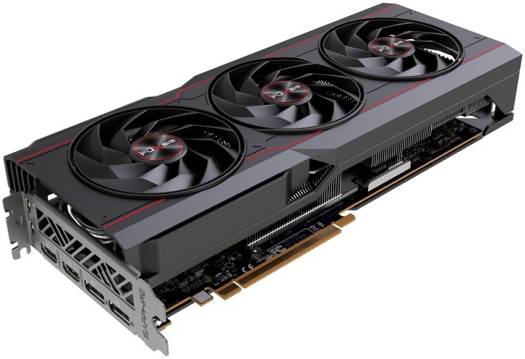

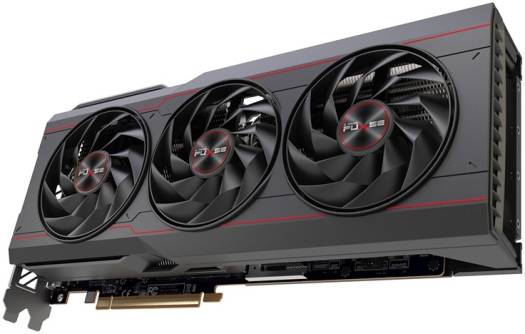

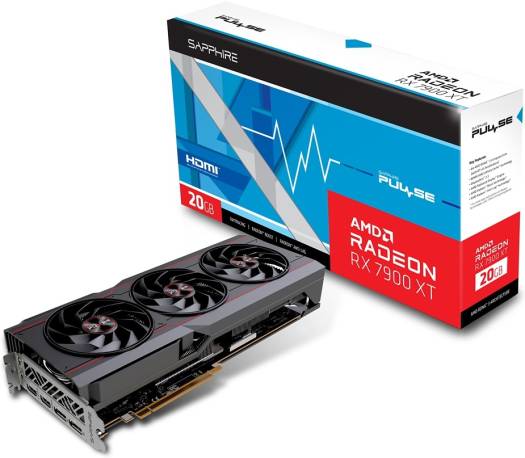

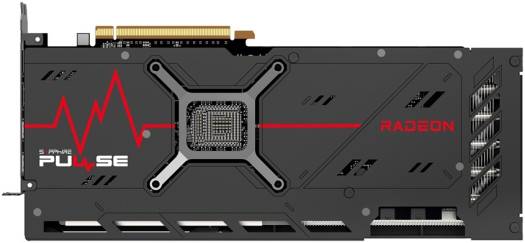

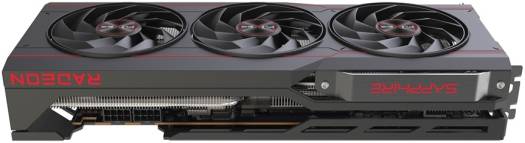

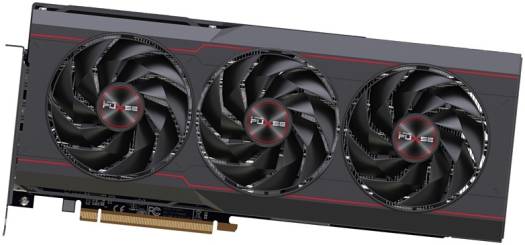

Description for SAPPHIRE PULSE AMD Radeon RX 7900 XT Gaming OC Graphics Card, 20GB DDR6 320 bit Memory, 2450 MHz Boost Clock, 5376 Stream Processors, 20Gbps Memory Speed, PCI-E 4.0 x16, HDMI, DP | S88-1E471-120HA
- GPU: Boost Clock: Up to 2450 MHz
- GPU: Game Clock: Up to 2075 MHz
- Memory: 20GB/320 bit DDR6. 20 Gbps Effective
- Stream Processors: 5376
- RDNA™ 3 Architecture
- Ray Accelerator: 84
Specifications
GPU
AMD Radeon™ RX 7900 XT Graphics Card
5nm GPU
AMD RDNA™ 3 ArchitectureEngine Clock
- Boost Clock: Up to 2450 MHz
- Game Clock: Up to 2075 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
5376Compute Units
84 CU (with RT+AI Accelerators)Infinity Cache
80MBRay Accelerators
84Memory Size/Bus
20GB/320 bit GDDR6Memory Clock
20 Gbps EffectiveDisplays
Maximum 4 DisplaysResolution
- HDMI™: 7680×4320
- DisplayPort 2.1: 7680×4320
Interface
PCI-Express 4.0 x16
Output
- 2x HDMI
- 2x DisplayPort
BIOS Support
- UEFI
Game Index
4K
Sapphire Features
- Premium Digital Power Design
- Ultra High Performance Conductive Polymer Aluminum Capacitors
- Fuse Protection
- High TG Copper PCB
- Optimized Composite Heatpipe
- Tri-X Technology
- Intelligent Fan Control
- Precision Fan Control
- Metal Backplate
- Two-Ball Bearing Fans
- Angular Velocity Fan Blade
- TriXX Supported
- TriXX Boost
- Graphics Card Supporter
AMD Features
- AMD RDNA™ 3 Gaming Architecture
- 84 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
- 80MB AMD Infinity Cache™ technology
- DisplayPort™ 2.1
- AMD Radiance Display™ Engine
- AMD Radeon™ Boost technology*
- AMD Radeon™ Anti-Lag* technology*
- 20GB GDDR6 on 320-Bit Memory Bus
- PCI® Express 4.0 ready
- AMD FidelityFX™ technologies*
- AMD FidelityFX™ Super Resolution technology*
- Microsoft® DirectX® 12 Ultimate
- Microsoft® DirectStorage
- Vulkan® Optimized
- AMD smart technologies*
- AMD Software: Adrenalin Edition™ application
- AMD Noise Suppression*
- AMD Privacy View*
- AMD Radeon™ Super Resolution technology*
- AMD Link*
- AMD Freesync™ technology
Cooling
3 Fans
Form Factor
2.7 slot, ATX
Dimension: 313(L)X 133.75(W)X 52.67 (H)mmPower Consumption
331W Total Board Power
OS
Linux®, Windows® 10, and Windows 11. 64-bit operating system required
System Requirement
- Minimum 750 Watt Power Supply
- 2 x 8-pin Power Connector.
- PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
- Minimum 8GB of system memory. 16GB recommended.
Additional Information
