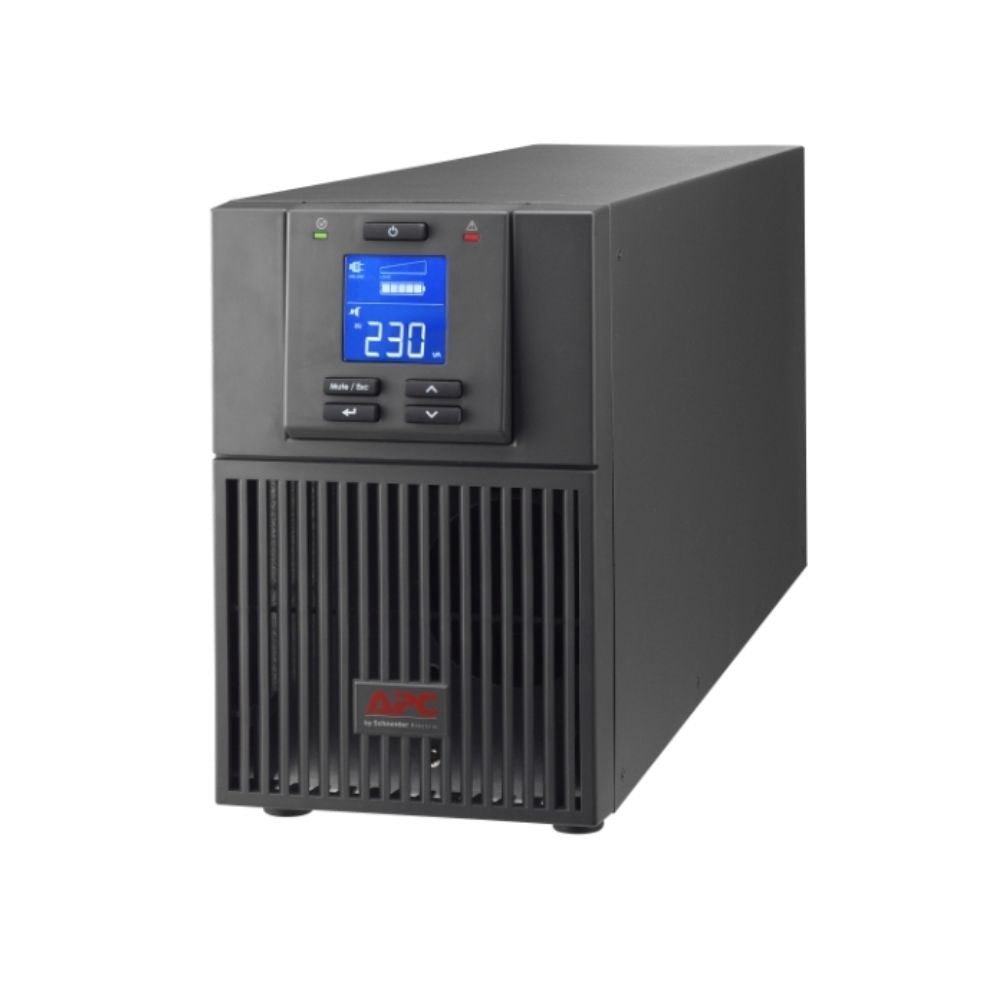

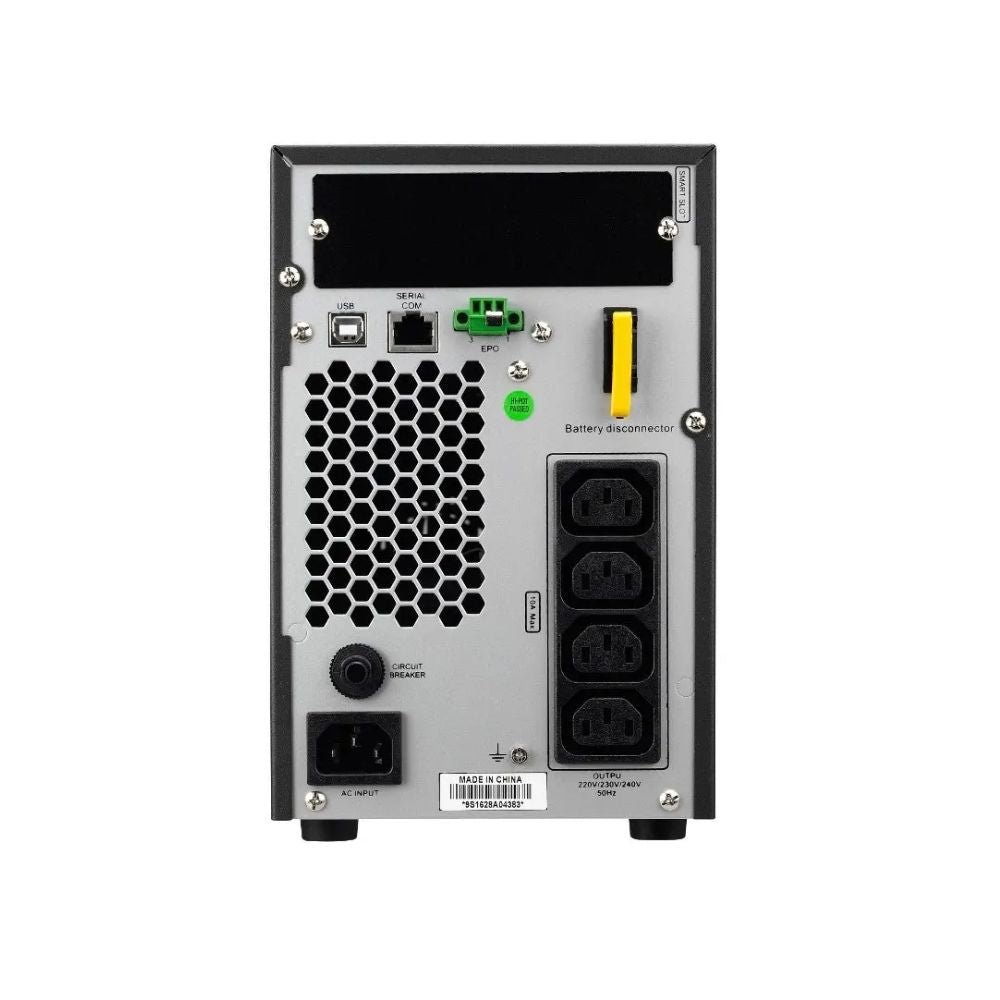

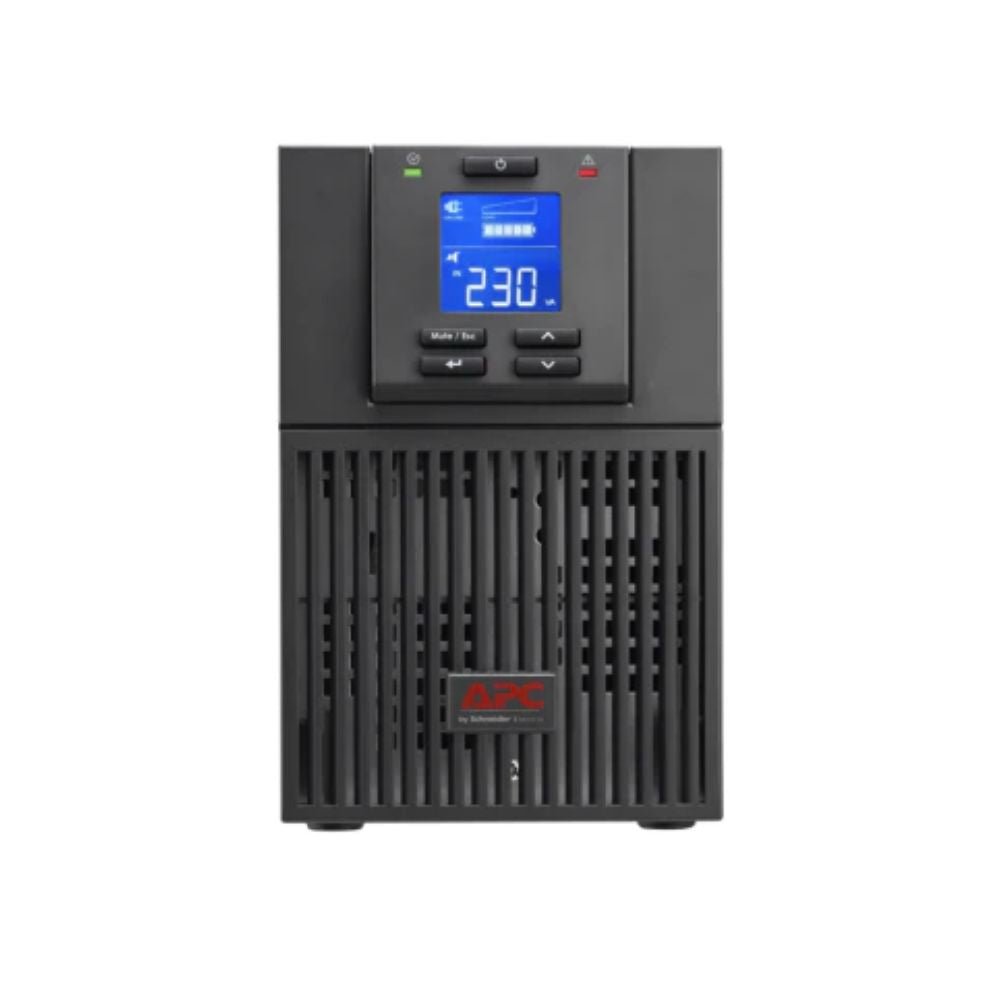

APC Easy UPS On-Line. Key specifications include run time: 1600W, 4min 2s; main input voltage: 230 V; product or component type: Uninterruptible power supply (UPS).
Product specifications
| Part number | SRV2KI |
|---|---|
| Run Time | 1600W, 4min 2s |
| Main Input Voltage | 230 V |
| Product or component type | Uninterruptible power supply (UPS) |
| Other Input Voltage | 220 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V |
| Rated power in W | 1600 W |
| Rated power in VA | 2000 VA |
| Input Connection Type | IEC 60320 C14 |
| output connection type | 4 IEC 60320 C13 |
| Cable length | 1.50 m |
| Number of cables | 1 |
| Provided equipment | 1 IEC 60320 C13 to Schuko power cable |
| Battery type | Lead-acid battery |
| Battery voltage | 48 V |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 4 h |
| Battery life | 3…5 year(s) |
| Battery charger power | 70 W rated |
| Max runtime | 4 min |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Colour | Black (RAL 7010) |
| height | 23.8 cm |
| Width | 14.5 cm |
| Depth | 40 cm |
| Net weight | 16.8 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| USB compatible | Yes |
| Mounting position | Vertical |
| Input voltage limits | 110…285 V half load |
| Network frequency | 40…70 Hz auto sensing |
| Maximum configurable power in VA | 2000 VA |
| Maximum configurable power in W | 1600 W |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Harmonic distortion | 3% |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Efficiency | 88 % (full load) |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| bypass type | Internal bypass (automatic and manual) |
| Crest factor | 03:01 |
| Standards | EN/IEC 62040-1:2019/A11:2021 |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0…3000 m |
| Ambient air temperature for storage | -20…50 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…15000 m |
| Acoustic level | 50 dBA |
| Heat dissipation | 745 Btu/h |
| IP degree of protection | IP20 |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| control panel | Multifunction LCD status and control console |
| Surge energy rate | 600 J |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 35.5 cm |
| Package 1 Width | 23.5 cm |
| Package 1 Length | 52.5 cm |
| Package 1 Weight | 18.1 kg |
