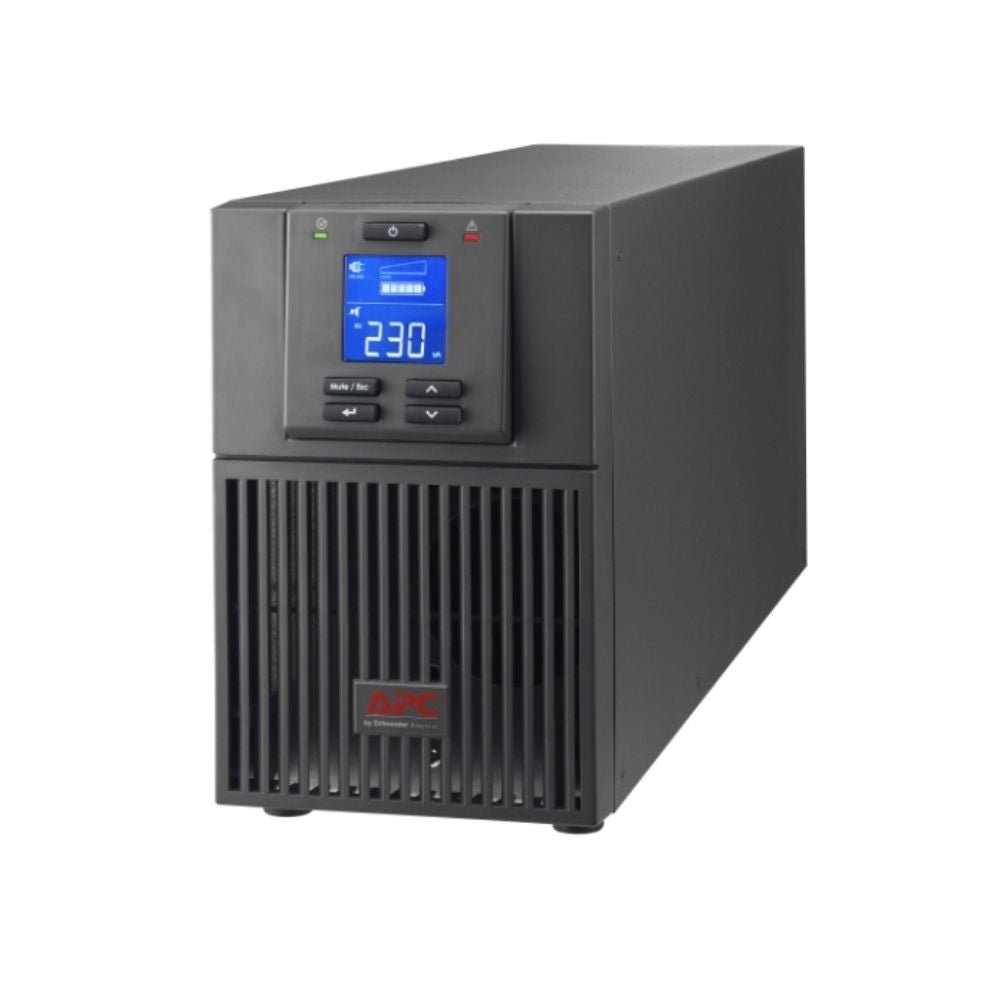

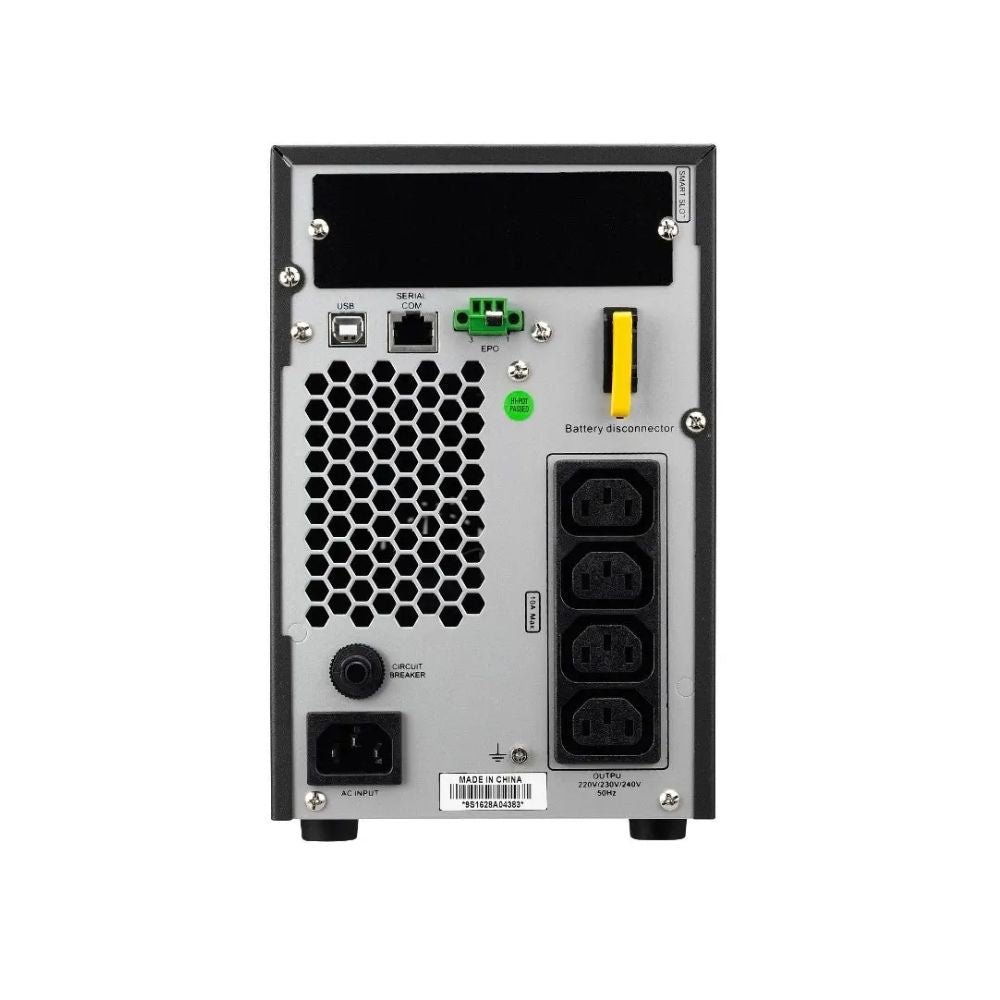

APC Smart-UPS RC 2000VA. Key specifications include main input voltage: 230 V; other input voltage: 220 V; main output voltage: 230 V.
Product specifications
| Part number | SRC2KI |
|---|---|
| Main Input Voltage | 230 V |
| Other Input Voltage | 220 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V |
| Rated power in W | 1600 W |
| Rated power in VA | 2000 VA |
| Input Connection Type | IEC 60320 C14 |
| output connection type | 4 IEC 60320 C13 |
| Cable length | 1.22 m |
| Number of cables | 1 |
| Battery type | Lead-acid battery |
| Provided equipment | Basic UPS signalling RS-232 cable |
| Number of battery filled slots | 1 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Battery voltage | 48 V |
| Battery charger power | 144 W rated |
| Battery life | 3…5 year(s) |
| Extended runtime | 0 |
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| Colour | Charcoal |
| height | 26 cm |
| Width | 14.5 cm |
| Depth | 39.7 cm |
| Net weight | 18 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | Yes |
| Mounting position | Vertical |
| Network frequency | 50/60 Hz |
| Input voltage limits | 160…280 V |
| Load power factor | 0.8 |
| Maximum configurable power in W | 1600 W |
| Harmonic distortion | Less than 3 % |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Crest factor | 03:01 |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Output harmonic distortion | < 3% linear load |
| bypass type | Built-in bypass |
| Maximum configurable power in VA | 2000 VA |
| Standards | EN/IEC 62040-1:2019/A11:2021 |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % |
| Ambient air temperature for storage | -20…50 °C |
| Storage Relative Humidity | 0…95 % |
| Acoustic level | 50 dBA |
| Free slots | 1 |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Emergency power off | Yes |
| Surge energy rate | 600 J |
| Noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Data line protection | RJ45 modem/fax protection (four wire dual line) |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 23 cm |
| Package 1 Width | 59 cm |
| Package 1 Length | 32.5 cm |
| Package 1 Weight | 19.8 kg |
