Description for ASUS PRIME B850M-F M-ATX AM5 Motherboard, AMD B850 Chipset, 2x DDR5 DIMM Slots, Up to 128GB Max Memory, 1x PCIe 5.0 x16, 2x M.2 Slots, WiFi & BT Connectivity | 90MB1N80-M0EAY0

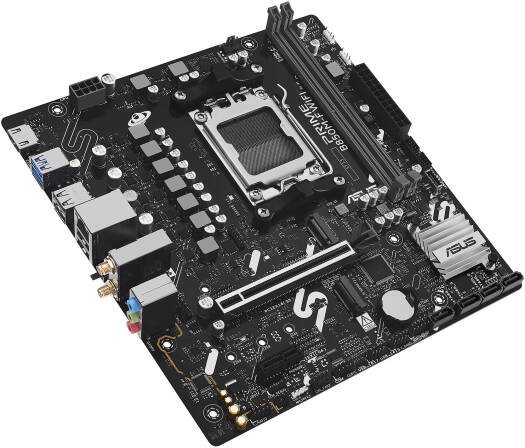

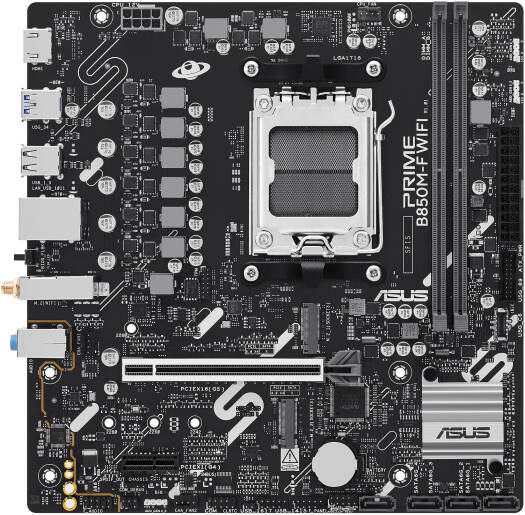

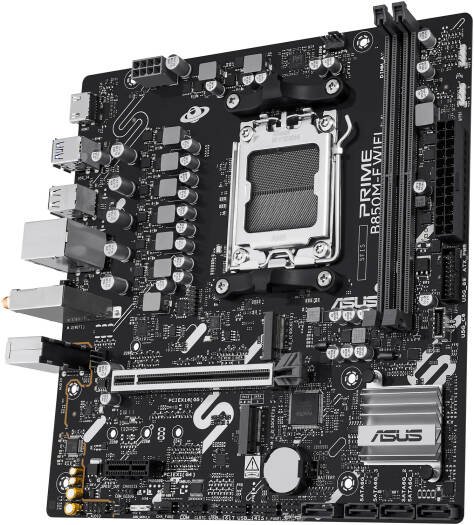

ASUS PRIME B850M-F WIFI
Based on the AMD B850 chipset, the ASUS PRIME B850M-F WIFI motherboard is designed to accommodate AMD Ryzen 7000/8000/9000 processors on socket AM5. It is ideal for assembling a gaming or multimedia configuration. More affordable than the X870 chipset, it supports DDR5, PCI-Express 5.0 graphics cards and PCIe 5.0 M.2 SSDs.
Specifications
| Processor Support | AMD AM5 |
| CPUs Supported | 1 |
| Chipset | AMD B850 |
| Memory Slots | 2 × DDR5 DIMM (288-pin) |
| Memory Type | DDR5 |
| Memory Technology | Dual Channel |
| Supported Memory Speeds | DDR5 4800–8400 MHz |
| Max Memory per Slot | 64 GB |
| Max Total Memory | 128 GB |
| Integrated Graphics | No (CPU-dependent) |
| PCIe x16 Slot | 1 × PCIe 5.0 x16 |
| Additional PCIe Slot | 1 × PCIe 4.0 x16 (x4) |
| Multi-GPU Support | No |
| Audio Chipset | Integrated |
| Audio Channels | 8 |
| Ethernet | 1 × Gigabit LAN (10/100/1000 Mbps) |
| Wireless | Wi-Fi 6 (AX), Bluetooth 5.3 |
| RAID Support | Yes (0, 1, 5, 10) |
| SATA Ports | 4 × SATA 6 Gb/s |
| M.2 Slots | 2 (1× PCIe 5.0 x4, 1× PCIe 4.0 x4) |
| Rear I/O | 2× USB 3.0, 4× USB 2.0, HDMI, RJ-45, 3× Audio Jack, 2× SMA |
| Internal Connectors | ATX 24-pin, CPU 8-pin, USB 2.0, USB 3.0, USB-C, RGB, S/PDIF, Serial |
| Form Factor | Micro-ATX |
| Dimensions | 226 × 222 mm |
| Overclocking Support | No |
| Intended Use | Gaming |
| LED Lighting | No |
