Product overview

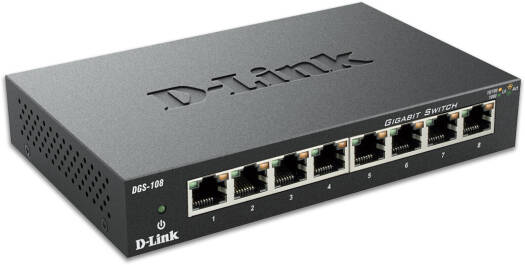

D-Link 8-Port Gigabit Unmanaged Desktop Switch for connecting network devices.
Configuration and features: 8x 10/100/1000BASE-T Ports; 20 Mbps Full-Duplex Data Transfer Rates; 192 KB RAM Buffer; Auto MDI/MDIX Adjustment for All Ports; Black.
Product details: device interfaces: 8 10/100/1000BASE-T ports; media interface exchange: Auto MDI/MDIX adjustment for all ports; transmission method: Store-and-forward; mac address table: 4K entries.
Specifications
| Brand | D-Link |
|---|---|
| Product reference | DGS-108 |
| Product type | network switch |
| Device interfaces | 8 10/100/1000BASE-T ports |
| Standards | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow Control, IEEE 802.1p QoS, IEEE 802.3az Energy-Efficient Ethernet (EEE) |
| Media interface exchange | Auto MDI/MDIX adjustment for all ports |
| Transmission method | Store-and-forward |
| Data transfer rates | Ethernet: 10 Mbps (half-duplex), 20 Mbps (full-duplex), Fast Ethernet: 100 Mbps (half-duplex), 200 Mbps (full-duplex), Gigabit Ethernet: 2000 Mbps (full-duplex) |
| Packet filtering/forwarding rates | Ethernet: 14,880 pps per port, Fast Ethernet: 148,800 pps per port, Gigabit Ethernet: 1,488,000 pps per port |
| Mac address table | 4K entries |
| Mac address learning | Automatic update |
| Ram buffer | 192 KB |
| Leds | Power (per unit): Yes, Link/Activity/Speed (per port): Yes |
| Dimensions | 162 x 102 x 28 mm (3.54 x 2.83 x 1.06 inches) |
| Weight | 415 grams (0.92 lbs) |
| Power | 5V/1 A |
| Power consumption | Powered on (standby): DC input: 0.4 W, Maximum: AC input: 4.62 W, DC input: 3.05 W |
| Temperature | Operating: 0 to 45 °C (32 to 104 °F), Storage: -10 to 70 °C (14 to 158°F) |
| Humidity | Operating: 0% to 95% non-condensing, Storage: 0% to 95% non-condensing |
| Mtbf | 621,163 hours |
| Heat dissipation | Maximum: 10.40 BTU/h |
| Safety | CUL, CB, LVD, CCC, BSMI |
| Emi/emc | FCC Class B, CE Class B, RCM, CCC |
| Software features | ICES-003 Class B, BSMI |
| L2 features | IGMP Snooping |
| Power (per unit) | Yes, Link/Activity/Speed (per port): Yes |
| Powered on (standby) | DC input: 0.4 W, Maximum: AC input: 4.62 W, DC input: 3.05 W |
| Maximum | 10.40 BTU/h |
| Title configuration | 8x 10/100/1000BASE-T Ports; 20 Mbps Full-Duplex Data Transfer Rates; 192 KB RAM Buffer; Auto MDI/MDIX Adjustment for All Ports; Black |
Choosing this product
Compare port speeds and uplink types. For PoE devices, check both the per-port limit and the total power budget against the connected equipment.
