Product overview

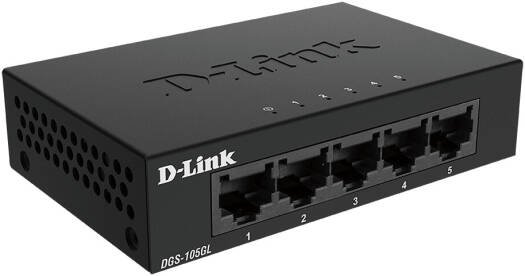

D-Link DGS-105GL 5-Port Gigabit Unmanaged Desktop Switch for connecting network devices.
Configuration and features: Metal Casing; Energy Efficient; Fanless; Supports 10 Gbps; 3.55 Watts Power; 10 Gbps Switching Fabric; Black.
Product details: device interfaces: 5 x 10/100/1000 Mbps LAN ports; switching capacity: 10 Gbps switching fabric; transmission method: Store-and-forward; mac address table size: 2K.
Specifications
| Brand | D-Link |
|---|---|
| Product reference | DGS-105GL |
| Product type | network switch |
| Device interfaces | 5 x 10/100/1000 Mbps LAN ports |
| Switching capacity | 10 Gbps switching fabric |
| Transmission method | Store-and-forward |
| Mac address table size | 2K |
| Packet filtering/forwarding rates | – Ethernet: 14,880 pps per port |
| Led indicators | – Per port: Link/Activity |
| Dimensions | 100 x 64 x 24 mm (3.94 x 2.52 x 0.94 inches) |
| Weight | 160 g |
| Power | DC 5 V / 1 A |
| Power consumption | Maximum: 3.55 watts |
| Mtbf | 1,455,562 hours |
| Maximum heat dissipation | 12.11 BTU/h |
| – ethernet | 14,880 pps per port |
| – fast ethernet | 148,800 pps per port |
| – gigabit ethernet | 1,488,000 pps per port |
| – per port | Link/Activity |
| – per device | Power |
| Maximum | 3.55 watts |
| Title configuration | Metal Casing; Energy Efficient; Fanless; Supports 10 Gbps; 3.55 Watts Power; 10 Gbps Switching Fabric; Black |
Choosing this product
Compare port speeds and uplink types. For PoE devices, check both the per-port limit and the total power budget against the connected equipment.
