Description
Description

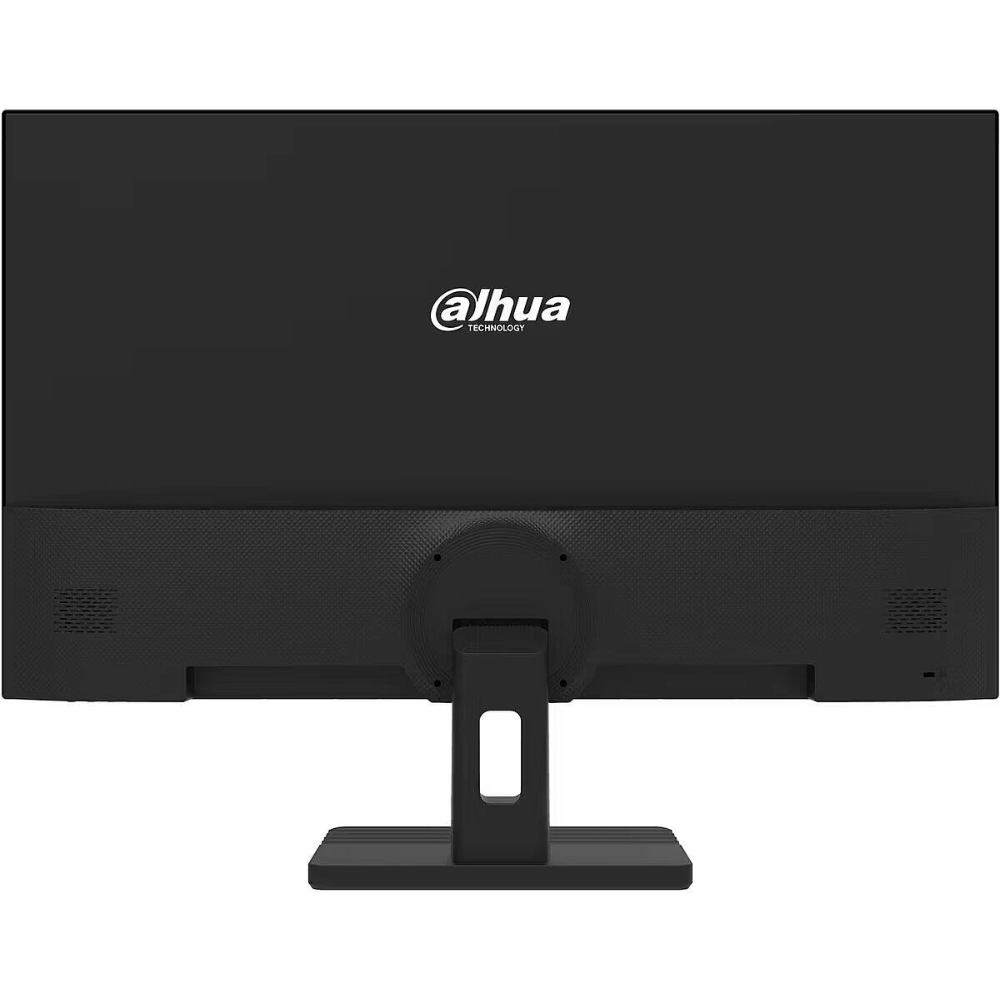

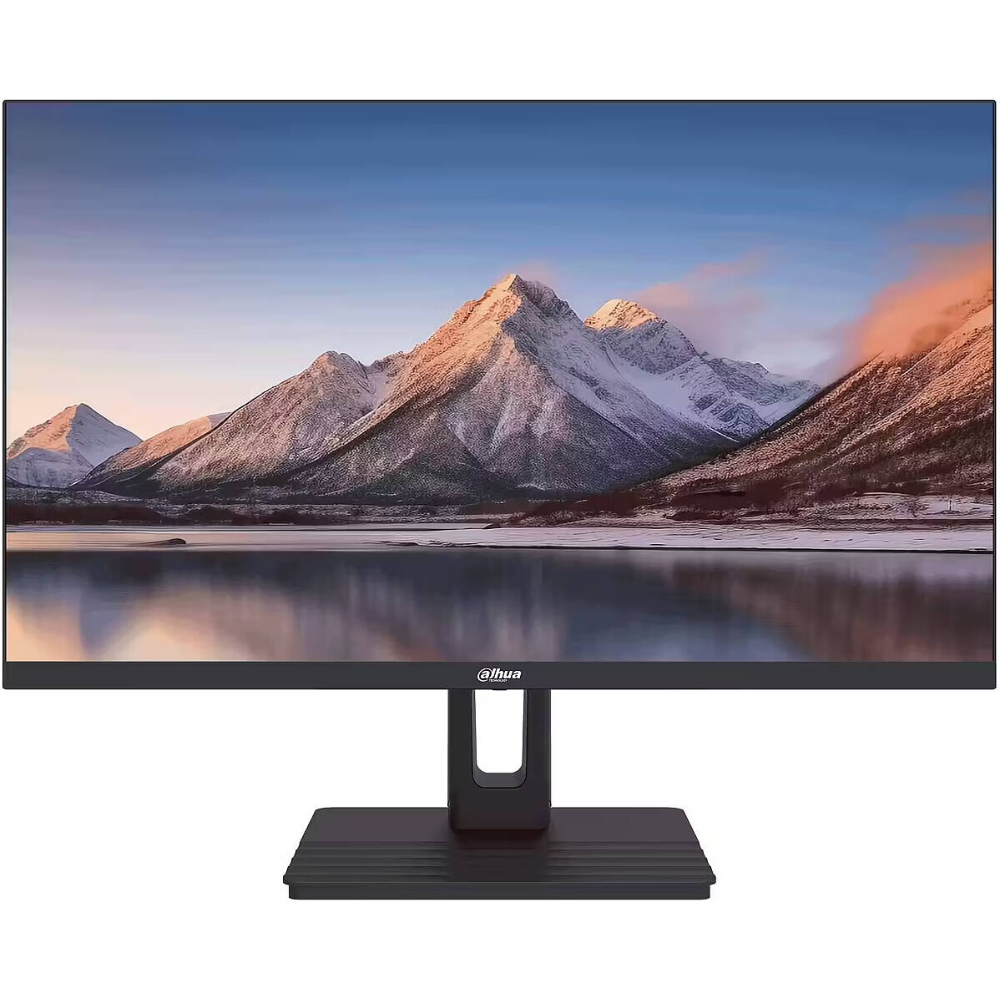

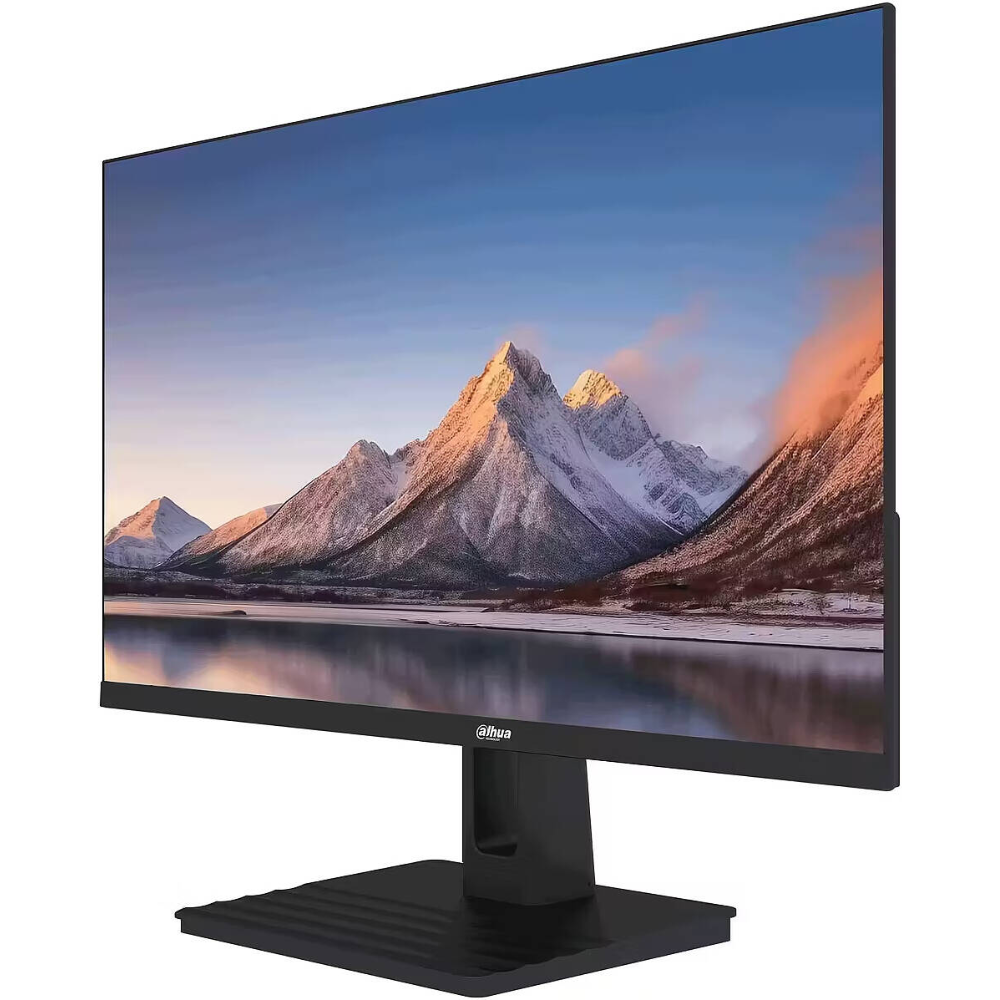

The Dahua LM24-C301B provides QHD 2560 × 1440 resolution on a 23.8-inch IPS panel. It supports up to 100Hz at QHD through DisplayPort or up to 75Hz through HDMI. A tilt-adjustable stand, audio output and 75 × 75 mm VESA mounting pattern complete its core connections and mounting features.
Specifications
| Part number | LM24-C301B |
|---|---|
| Brand | Dahua |
| Model | DHI-LM24-C301B |
| Screen Size | 23.8" |
| Panel Type | IPS |
| Display Resolution | QHD 2560 x 1440 |
| Refresh Rate | 100Hz |
| Response Time | 5ms OD |
| Brightness | 300 cd/m² Max |
| Contrast Ratio | 1200:1 |
| Aspect Ratio | 16:9 |
| Input Ports | 1x HDMI 1.4, 1x DisplayPort 1.2 |
| HDMI Support | Up to 1440p at 75Hz |
| DisplayPort Support | Up to 1440p at 100Hz |
| Output Port | 1x Audio Out |
| Tilt Angle | -5° ±2° / 15° ±2° |
| VESA Mount | 75 x 75 mm |
| Net Weight | 3.1 kg |
| Product Dimensions | 539.2 x 320.4 x 41.3 mm without base |
| Included Accessories | Power Adapter, Base, HDMI Cable, User Manual, QSG, Legal & Regulatory Information |
Which connection supports 100Hz?
Use DisplayPort for QHD at up to 100Hz. The HDMI input supports QHD at up to 75Hz. The computer output and cable must also support the selected resolution and refresh rate.
