QW2520
Reliable, repeatable performance that you need

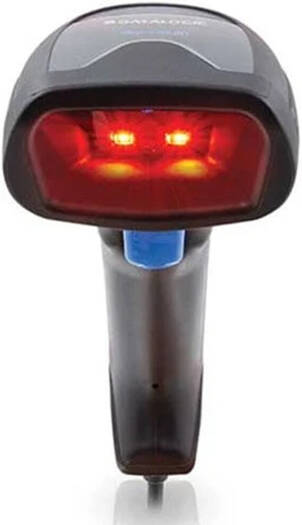

The new QuickScan 2500 imager from Datalogic is an entry level 2D corded handheld scanner that punches well above its weight when it comes to performance. It is the robust and reliable companion in the retail sector for your POS checkout, built for many years of continued service. It effortlessly reads a full range of barcodes, be they damaged, hard to read, or poorly printed. In addition, with today’s Covid safeguards in place, the QuickScan 2500 imager is optimized to seamlessly read through plexiglass barriers. All of these must-have benefits are available at an incredibly affordable price, making the QuickScan QuickScan 2500 imager the latest and most desirable addition to the Datalogic family of renowned handheld barcode scanners.
Specifications
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D, 2D |
| Barcode Symbology Supported | 1D: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes |
| 2D: Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code, Dot Code | |
| Postal Codes: Australian Post, British Post, China Post, IMB, Japanese Post, KIX Post, Planet Code, Postnet, Royal Mail Code (RM4SCC) | |
| Stacked Codes: EAN/JAN Composites, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites | |
| Digital Watermarking: Digimarc Barcodes (QD2500, QM2500, QBT2500 only) | |
| Image Sensor Type | Imager |
| Scan Pattern | Omni-directional |
| Scanning Distance | 20.10″ |
| Cable Type Included | USB |

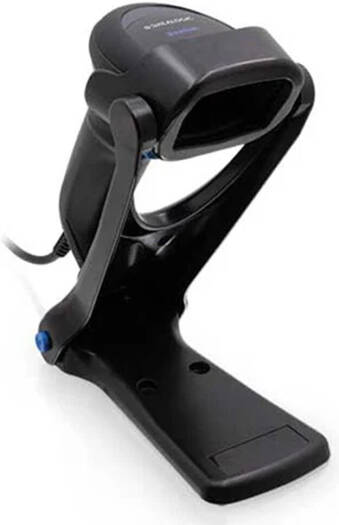

| Stand Included | Yes |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 30 in/s |
| Image Formats | JPEG, BMP, TIFF |
| Maximum Ambient Light | 110000 lux |
| Drop Specification | Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 5 mil |
| Maximum Element Resolution (Code 39) | 10 mil |
| Maximum Element Resolution (DataMatrix) | 10 mil |
| Maximum Element Resolution (PDF417) | 6.7 mil |
| Interfaces/Ports | |
| Host Interface | USB, Serial, Keyboard Wedge |
| Physical Characteristics | |
| Form Factor | Handheld |
| Product Color | Black |
| Weight (Approximate) | 5.11 oz |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Retail, Commercial Service, Hospitality, Ticketing, Government, Healthcare, Light/Clean Manufacturing, Industrial |
