Description
Description

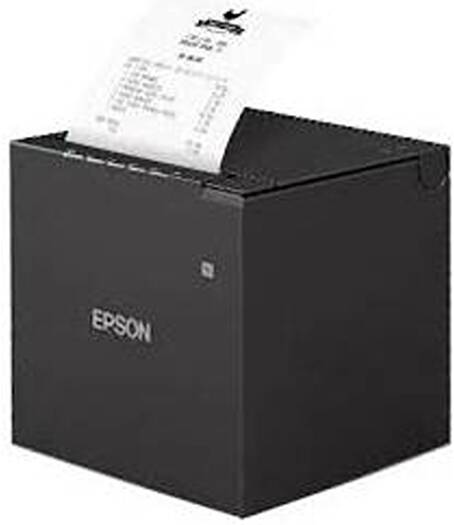

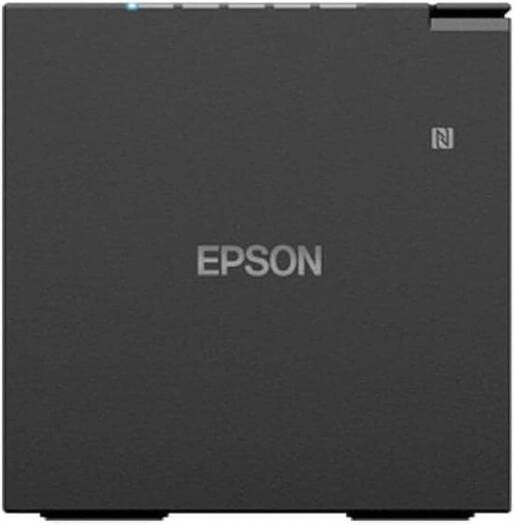

TM-m30III Receipt Printer
The TM-m30III is the third generation of Epson’s popular mPOS receipt printer series. At 127 x 127 x 127 mm, it has the same compact dimensions as its predecessor, but its modern design is even more sophisticated and sharper. Its advanced features include a USB-C PD port that makes it easy to connect to tablets.
Specifications
| Print method | Thermal line printing |
| Print method receipt | Thermal line printing |
| Technology | Thermal Line |
| Printing font | ANK, Traditional Chinese, Simplified Chinese, Japanese, Korean |
| Character set | 95 Alphanumeric, 18 International, 128Ă—43 Graphic, Traditional/Simplified Chinese, Korean, Japanese, GB18030-2000, Big5, KSC5601 |
| Printing speed | Max 300 mm/sec @ 203Ă—203 DPI (80 mm width) |
| Printing resolution | 203Ă—203 DPI |
| Barcodes | Coda bar, Code 128, Code 39, Code 93, Data Matrix, EAN-13/8, GS1-128, GS1-DataBar, ITF, JAN13/8, MaxiCode, PDF417, QR, UPC-A/E |
| Printing characters | Text, Graphics, Barcode, 2D barcode |
| Print speed (default) | 300 mm/sec |
| Print speed (character/graphic/receipt) | 300 mm/sec |
| Printing font receipt | ANK, Traditional Chinese, Simplified Chinese |
| Column capacity receipt | 48 / 35 (80 mm paper) |
| Character set receipt | 95 Alphanumeric, 18 International, 128Ă—43 Graphic, CN/KR/JP sets incl. GB18030, Big5, KSC5601 |
| Dot density | 203Ă—203 DPI |
| Colour printing | Black |
| Paper types | Receipt, Roll |
| Paper thickness | 48–80 µm |
| Paper size roll | 79.5±0.5 mm Ă— Ă˜83 mm / 57.5±0.5 mm Ă— Ă˜83 mm |
| Interfaces | USB 2.0-A, USB-C, Ethernet, Micro SD, USB-B (service), Wi-Fi (optional), NFC, Drawer kick-out |
| Tablet charge & sync | 1Ă— |
| Data buffer | 4 kB or 45 bytes |
| Power supply | EURO AC cable, PS-190 |
| Power consumption (mean) | 0.1 A / Receipt: approx. 1.8 A |
| Power consumption (standby) | 1.4 W |
| Operating voltage | 24 V |
| Product dimensions | 127Ă—127Ă—130 mm |
| Product weight | 1.3 kg |
| Noise | 53 dB(A) |
| Autocutter | Yes |
| Colour | Black |
| Installation | Horizontal, vertical, wall-mounted |
| Power consumption (printing / standby) | ~1 W / ~31 W |
| Power supply type | External |
| Reliability (MTBF / MCBF) | 360,000 hrs / 65,000,000 passes |
| Supply voltage | AC 100–230 V, 50–60 Hz |
| Humidity support | 10–90% (operating/storage) |
| Temperature support | 5–45°C operating / −20–60°C storage |
| Auto cutter life | 2,200,000 cuts |
| Printer life | 17,000,000 lines |
| Print head life | 150 km |
| EMC standards | CE |
| NFC | Yes |
| Cutter type | Full cut |
| Factory options | Autocutter, Near-end sensor |
| Preloaded software | Server Direct Print |
| Sensors | Cover open, Paper end, Paper near-end, Paper jam, Receipt sensors |
| Paper saving function | Yes |
| Roll paper print speed | 300 mm/sec |
| Roll paper dot density | 203Ă—203 DPI |
| Supported media formats | Roll 57 mm, Roll 80 mm |
| Supported media width | 58–80 mm |
