Description
Description
Product overview

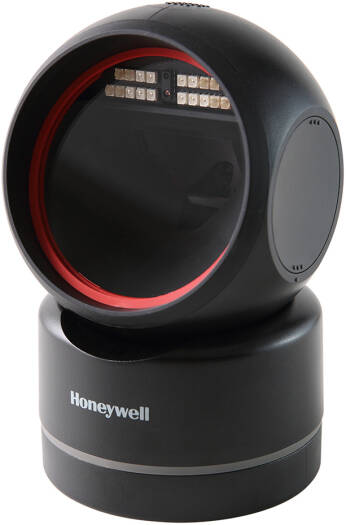

Honeywell Orbit HF680 Hands Free Barcode Scanner for capturing the stated document or barcode data.
Configuration and features: 1D & 2D Scanner Capabilities; 1280 800 Pixels Scan Pattern; 2.7m Cable Length; USB Wired Connectivity; Black.
Product details: overall dimensions (l × w × h): 85 mm × 88 mm × 139 mm; scan pattern: 1280 × 800 pixel; pitch: +/-60°; motion tolerance: 2.5 m/s for 13 mil UPC.
Specifications
| Brand | Honeywell |
|---|---|
| Product reference | HF680-R12-2USB |
| Product type | scanner |
| Overall dimensions (l × w × h) | 85 mm × 88 mm × 139 mm |
| Scan pattern | 1280 × 800 pixel |
| Pitch | +/-60° |
| Motion tolerance | 2.5 m/s for 13 mil UPC |
| Decode capability | 1D/2D |
| Print contrast | 20% |
| Skew | +/-70° |
| Scanning range | Standard range (SR) |
| Maximum brightness | 100,000 Lux |
| Engine type | Standard Range |
| Host system interface | USB/RS232 |
| Storage temperature range | -40°C to 60°C (-40°F to 140°F) |
| Operating humidity | 0% to 95%RH, no condensation |
| Weight range | 278 +/-10g |
| Overall width | 88 mm |
| Overall depth | 85 mm |
| Overall height | 139 mm |
| Operating current | 2.0 W (400 mA @ 5V) |
| Standby current | 0.85 W (170 mA @ 5V) |
| Input voltage | 5 VDC ±0.5V |
| Operating temperature | -10°C to 40°C (14°F to 104°F) |
| Power connector type | Corded |
| Title configuration | 1D & 2D Scanner Capabilities; 1280 800 Pixels Scan Pattern; 2.7m Cable Length; USB Wired Connectivity; Black |
Choosing this product
Check the supported document or code types, connection and software compatibility. Confirm whether a stand, cable or receiver is included.
