Product overview

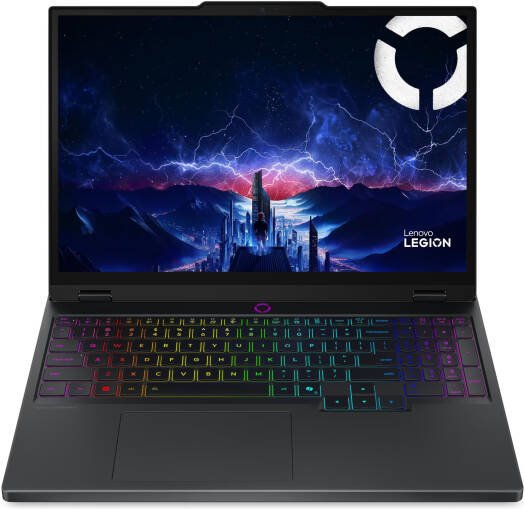

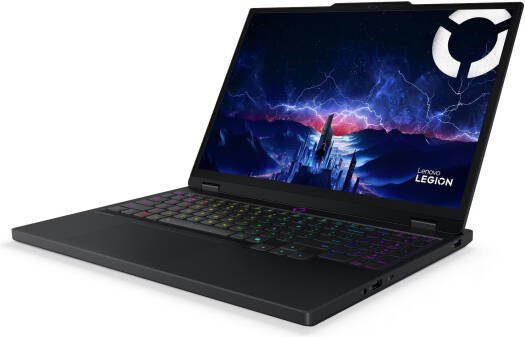

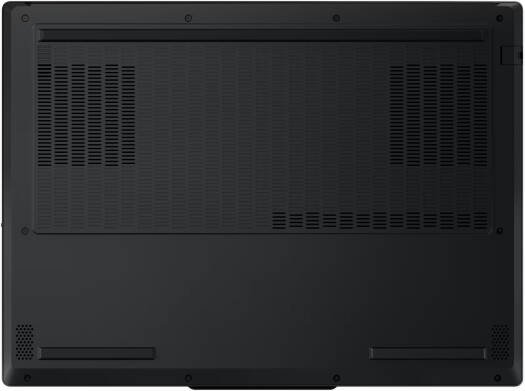

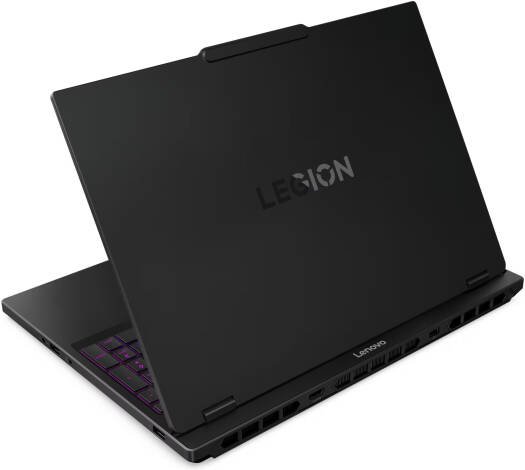

Lenovo Legion 5 15IRX10 Gaming Laptop for portable computing.
Features: 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On; 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 2.1; 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with DisplayPort™ 1.4; 1x HDMI® 2.1, up to 8K/60Hz; 1x Headphone / microphone combo jack (3.5mm).
Configuration and features: 15.1" WQXGA OLED 165Hz Display; Intel Core i7-14700HX; 16GB RAM; 1TB SSD; GeForce RTX 5060 8GB; English 24-Zone Backlit K/B; Win11; Eclipse Black.
Product details: processor: Intel® Core i7-14700HX, 20C (8P + 12E) / 28T, P-core 2.1 / 5.5GHz, E-core 1.5 / 3.9GHz, 33MB; installed ram: 16GB RAM; memory: 1x 16GB SO-DIMM DDR5-5600; installed storage: 1TB SSD.
Specifications
| Brand | Lenovo |
|---|---|
| Product reference | 83LY0000US |
| Product type | laptop |
| Processor | Intel® Core i7-14700HX, 20C (8P + 12E) / 28T, P-core 2.1 / 5.5GHz, E-core 1.5 / 3.9GHz, 33MB |
| Ai pc category | AI-Powered Gaming PC |
| Npu | None |
| Graphics | NVIDIA® GeForce RTX™ 5060 8GB GDDR7, Boost Clock 2497MHz, TGP 115W, 572 AI TOPS |
| Chipset | Intel® HM770 Chipset |
| Memory | 1x 16GB SO-DIMM DDR5-5600 |
| Memory slots | Two DDR5 SO-DIMM slots, dual-channel capable |
| Max memory | Up to 32GB DDR5-5600 offering |
| Storage | 1TB SSD M.2 2242 PCIe® 4.0×4 NVMe® |
| Storage slot | Two M.2 2280 PCIe® 4.0 x4 slots |
| Max storage support | Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB each |
| Optical | None |
| Card reader | None |
| Audio chip | High Definition (HD) Audio, Realtek® ALC3287 codec |
| Speakers | Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio |
| Microphone | 2x, Array |
| Camera | 5.0MP with E-shutter |
| Battery | 80Wh |
| Power adapter | 245W Slim Tip (3-pin) |
| Special features | AI Chip: LA1 |
| Display | 15.1" WQXGA (2560×1600) OLED 1000nits (peak) / 500nits (typical) glossy, 100% DCI-P3, 165Hz, Dolby Vision®, DisplayHDR™ True Black 600 |
| Touchscreen | None |
| Screen-to-body ratio | OLED models: 90% AAR (active area ratio) |
| Color calibration | Factory Color Calibration |
| Pen | Pen Not Supported |
| Keyboard | 24-Zone RGB Backlit, English |
| Touchpad | Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches) |
| Dimensions (wxdxh) | 344.9 x 255.35 x 19.95-21.54 mm (13.58 x 10.05 x 0.79-0.85 inches) |
| Weight | Starting at 1.9 kg (4.19 lbs) |
| Case color | Eclipse Black |
| Case material | Aluminium (Top), PC-ABS + 15% Talc (Bottom) |
| Surface treatment | Aluminium Stamping (Anodized with Sandblasting) |
| Operating system | Windows® 11 Home, English |
| Bundled software | Office Trial + Lenovo® AI Now |
| Wlan + bluetooth | Wi-Fi® 7, 802.11be 2×2 + BT5.4 |
| Wwan | Non-WWAN |
| Ethernet | 100/1000M (RJ-45) |
| Standard ports | 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 2.1 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with DisplayPort™ 1.4 1x HDMI® 2.1, up to 8K/60Hz 1x Headphone / microphone combo jack (3.5mm) 1x Ethernet (RJ-45) 1x Power connector |
| Docking | Various docking solutions supported via USB-C®. For more compatible docking solutions |
| Security chip | Firmware TPM 2.0 Enabled |
| Fingerprint reader | None |
| Other security | E-shutter |
| Bundled accessories | None |
| Ai chip | LA1 |
| Oled models | 90% AAR (active area ratio) |
| Title configuration | 15.1" WQXGA OLED 165Hz Display; Intel Core i7-14700HX; 16GB RAM; 1TB SSD; GeForce RTX 5060 8GB; English 24-Zone Backlit K/B; Win11; Eclipse Black |
| Installed RAM | 16GB RAM |
| Installed storage | 1TB SSD |
| Listed features | 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On; 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 2.1; 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with DisplayPort™ 1.4; 1x HDMI® 2.1, up to 8K/60Hz; 1x Headphone / microphone combo jack (3.5mm) |
Choosing this product
Compare processor, graphics, installed memory and storage. Check the listed keyboard layout, operating system and display before choosing a configuration.
