Description

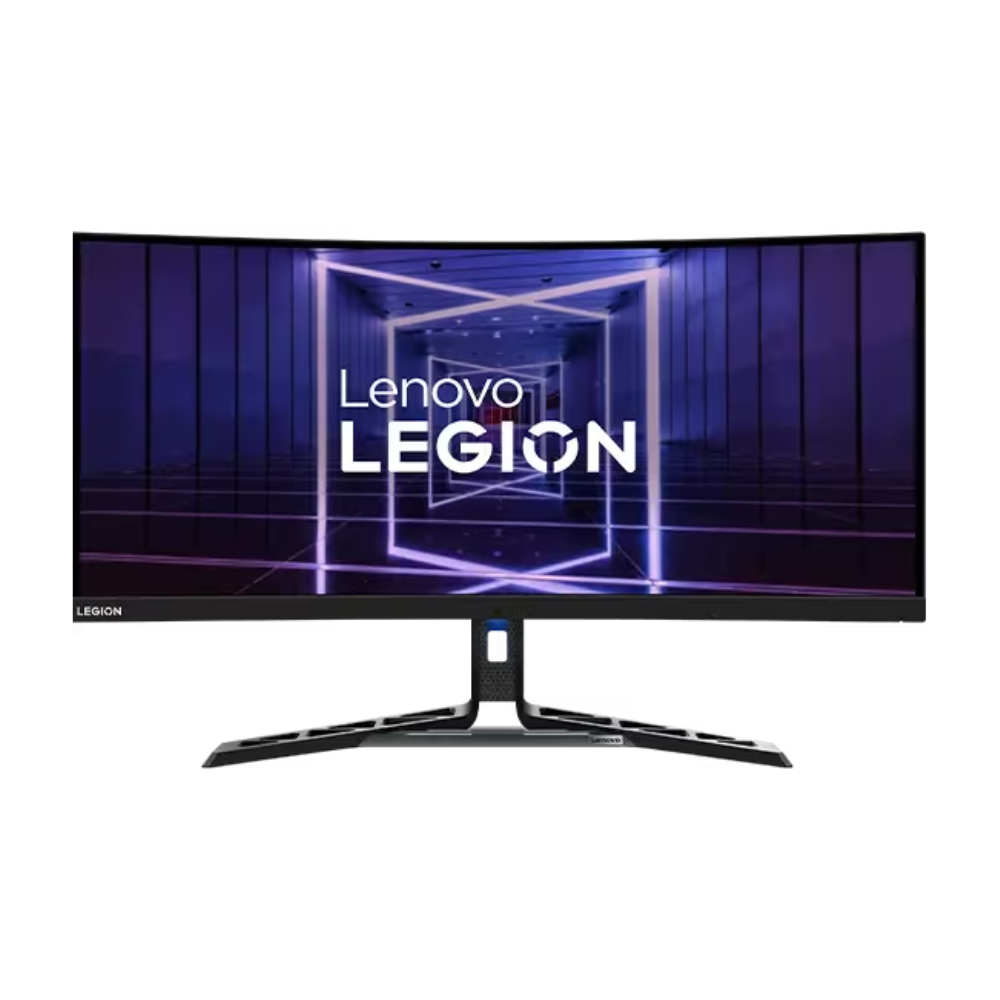

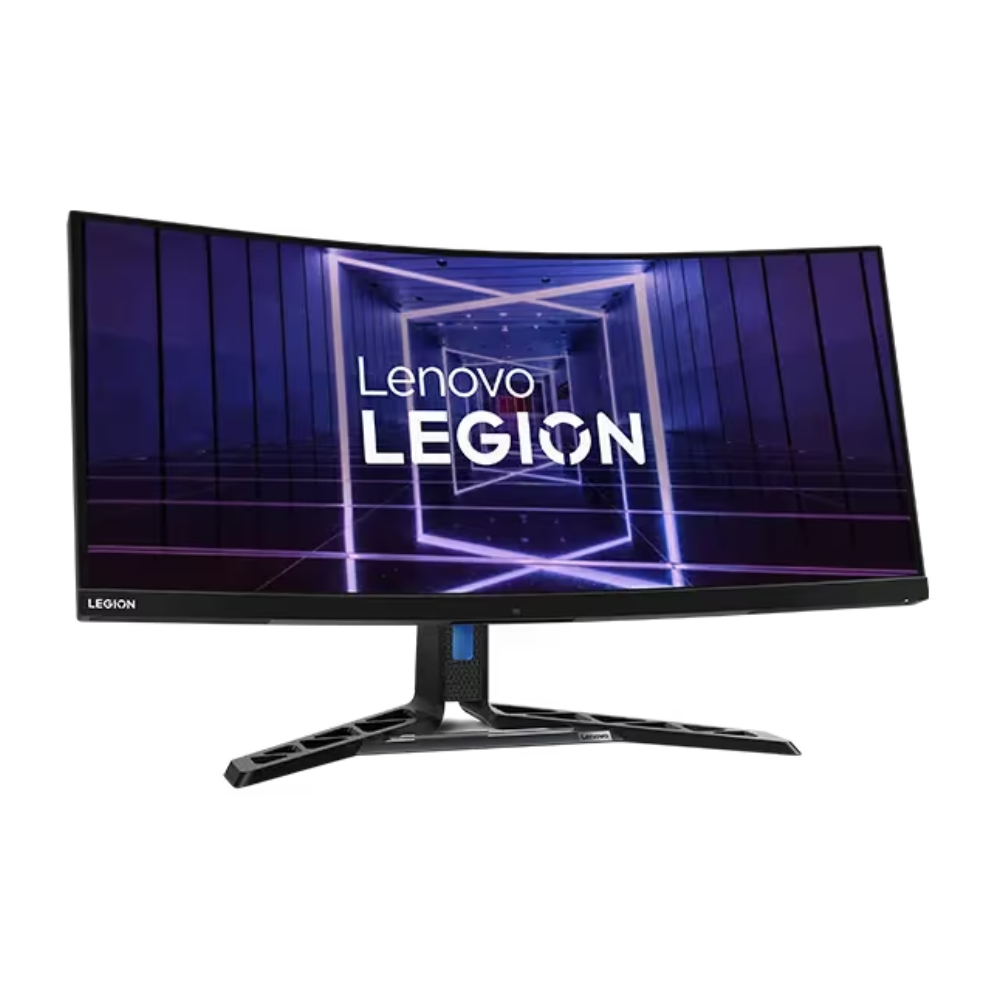

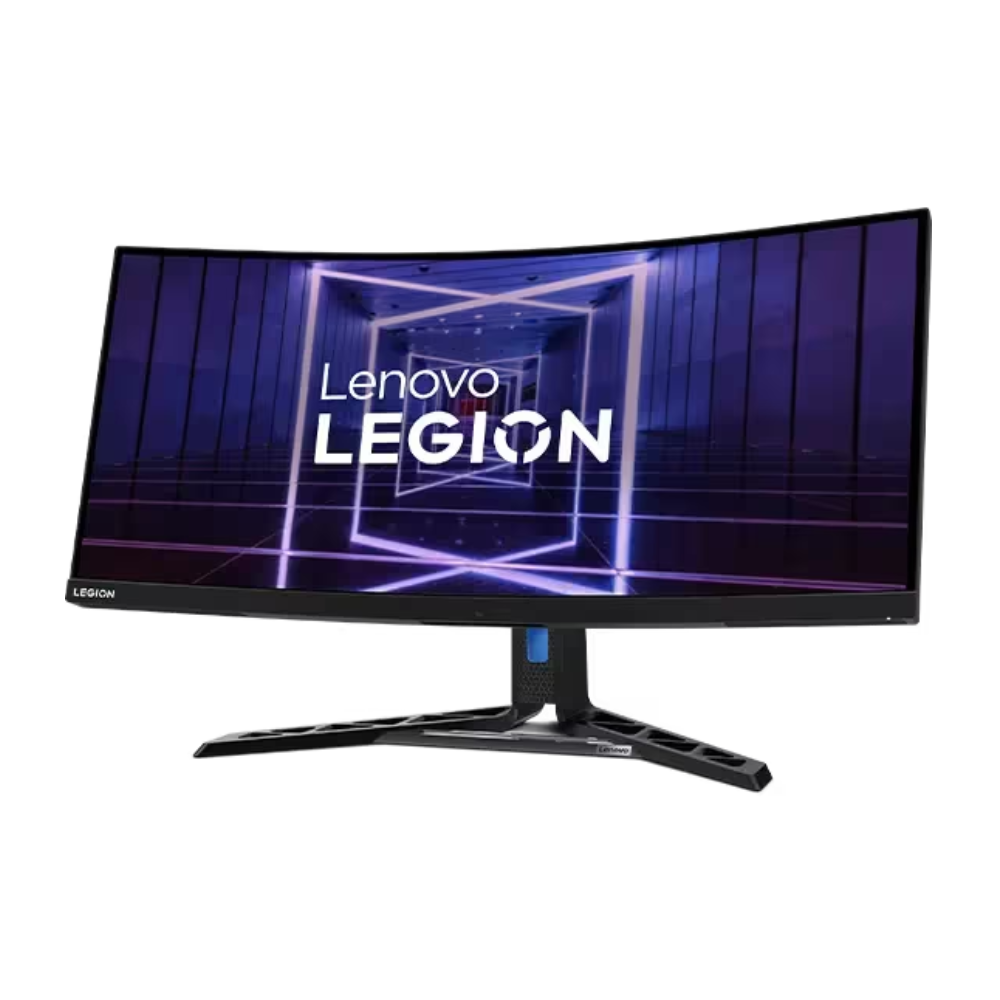

Lenovo Legion Y34wz-30 34" UWQHD Pro Gaming Monitor (Mini-LED VA. Key specifications include display: 34"; operating system: Support Windows 10, Windows 11.
Product specifications
| Part number | 67B0UAC1AE |
|---|---|
| Display Size | 34" |
| View Area | 792.2×333.7 mm |
| Panel | Vertical Alignment |
| Backlight | Mini-LED |
| Aspect Ratio | 21:09 |
| Resolution | 3440×1440 |
| Pixel Pitch | 0.077 x 0.232 mm |
| Dot / Pixel Per Inch | 110 dpi |
| View Angle (H / V) | 178° / 178° |
| Response Time | 1ms (MPRT) / 2ms (Level 4) / 4ms (Level 3) / 6ms (Level 2) / 8ms (Level 1) / 11ms (Off mode) |
| Color Support | 1.07 Billion |
| Refresh Rate | 165Hz / 180Hz (Overclock) |
| Brightness | 720 cd/m² |
| Contrast Ratio | 3000:01:00 |
| Color Gamut | 99% sRGB, 95% DCI-P3 |
| Screen Surface Treatment | Anti-glare |
| Curvature | 1500R |
| Camera | Modular Camera Support |
| Microphone | None |
| Speakers | 5Wx2 |
| Power Consumption (Typical / Maximum) | 55W / 330W |
| Power Adapter | Integrated |
| Touchscreen | None |
| Smart System | None |

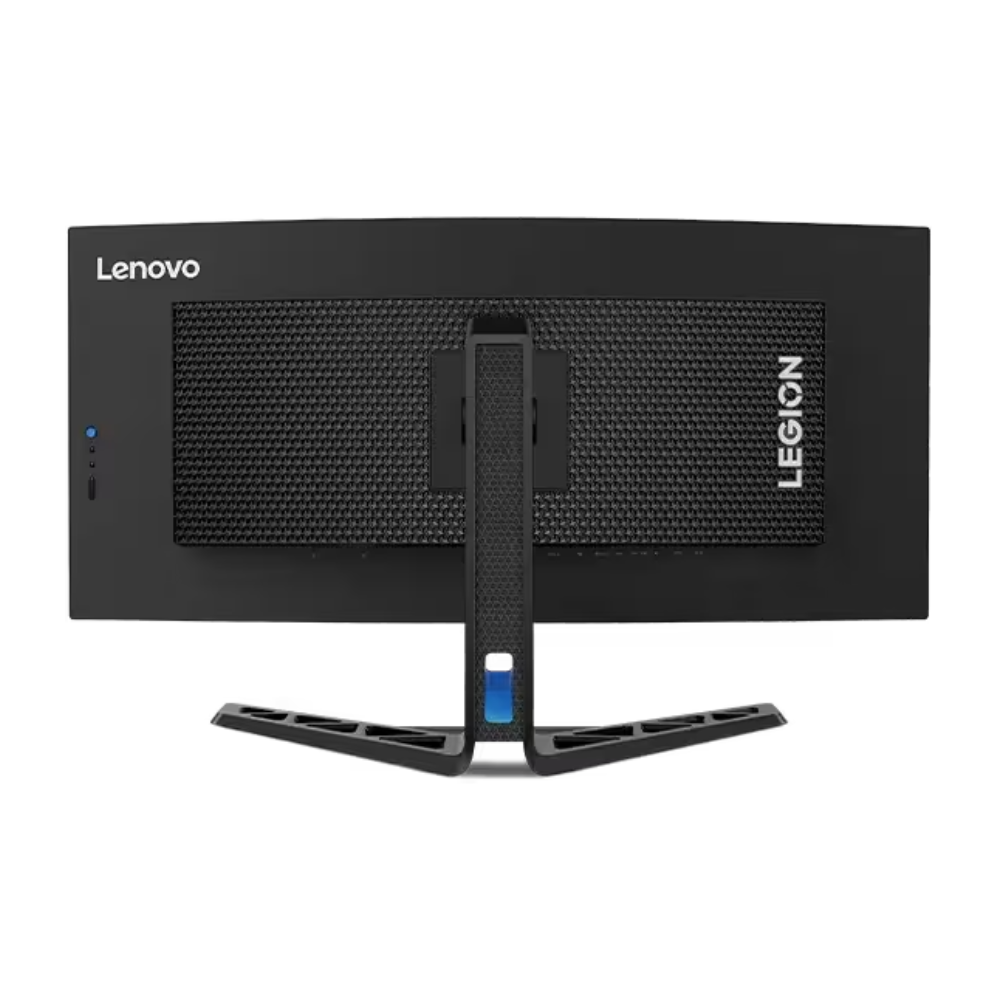

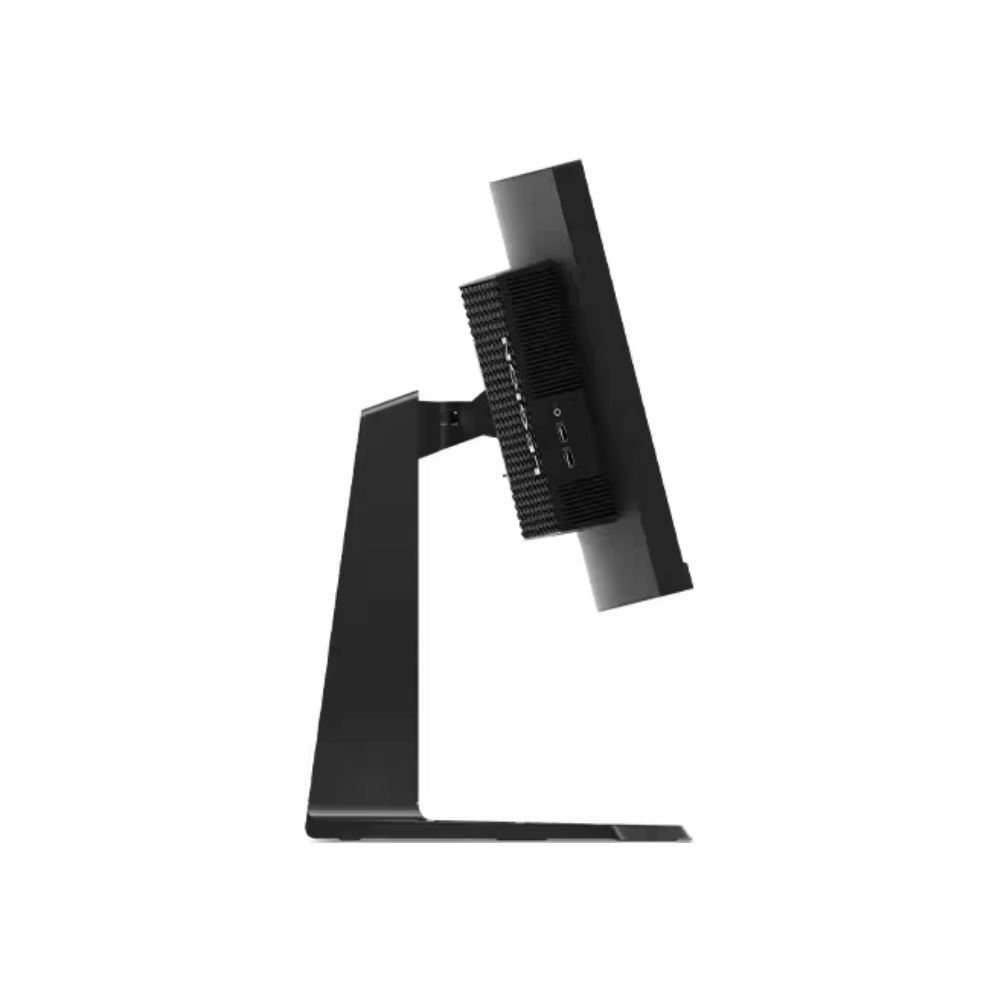

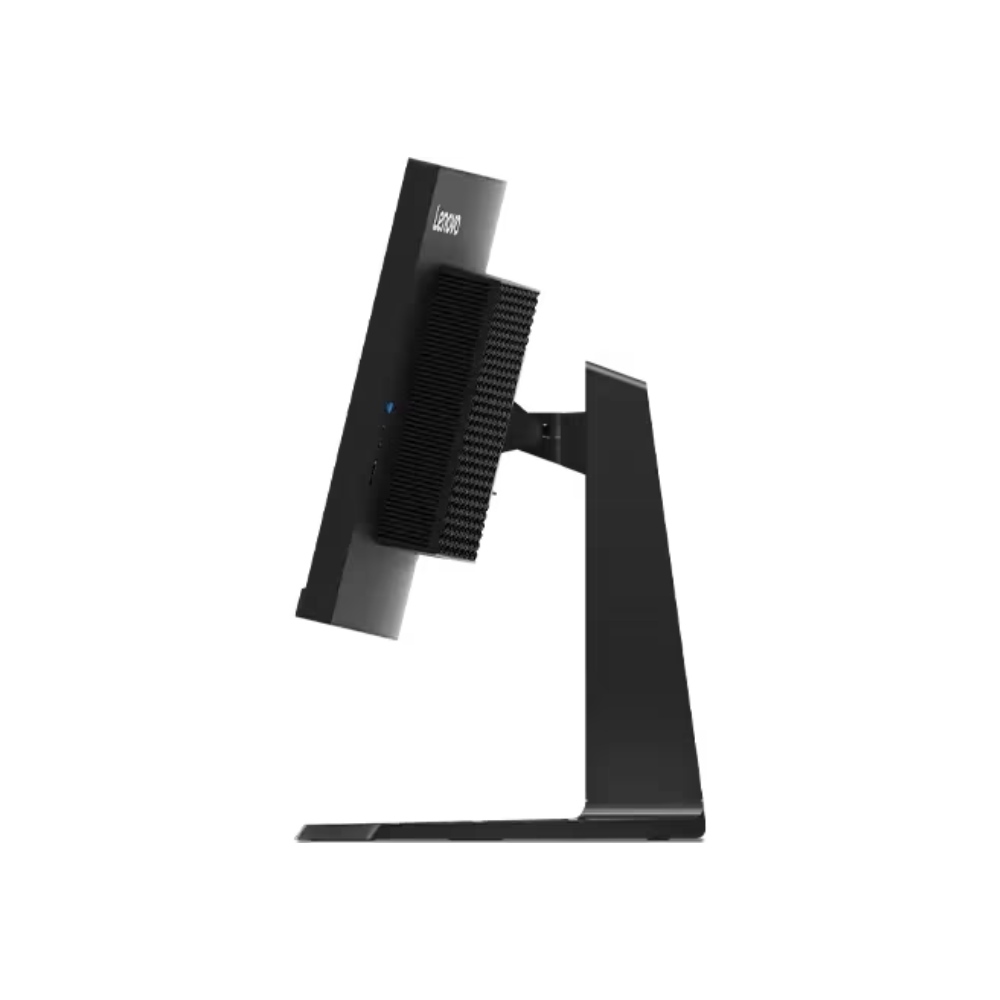

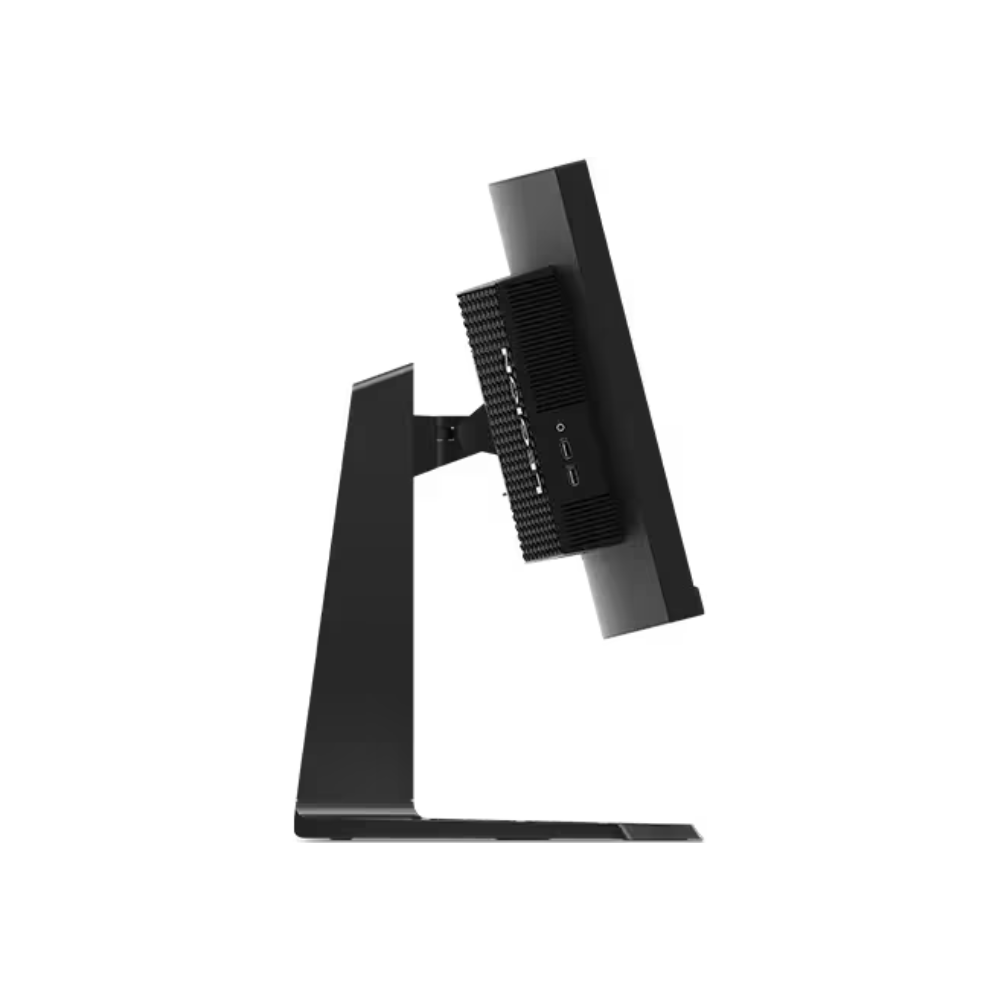

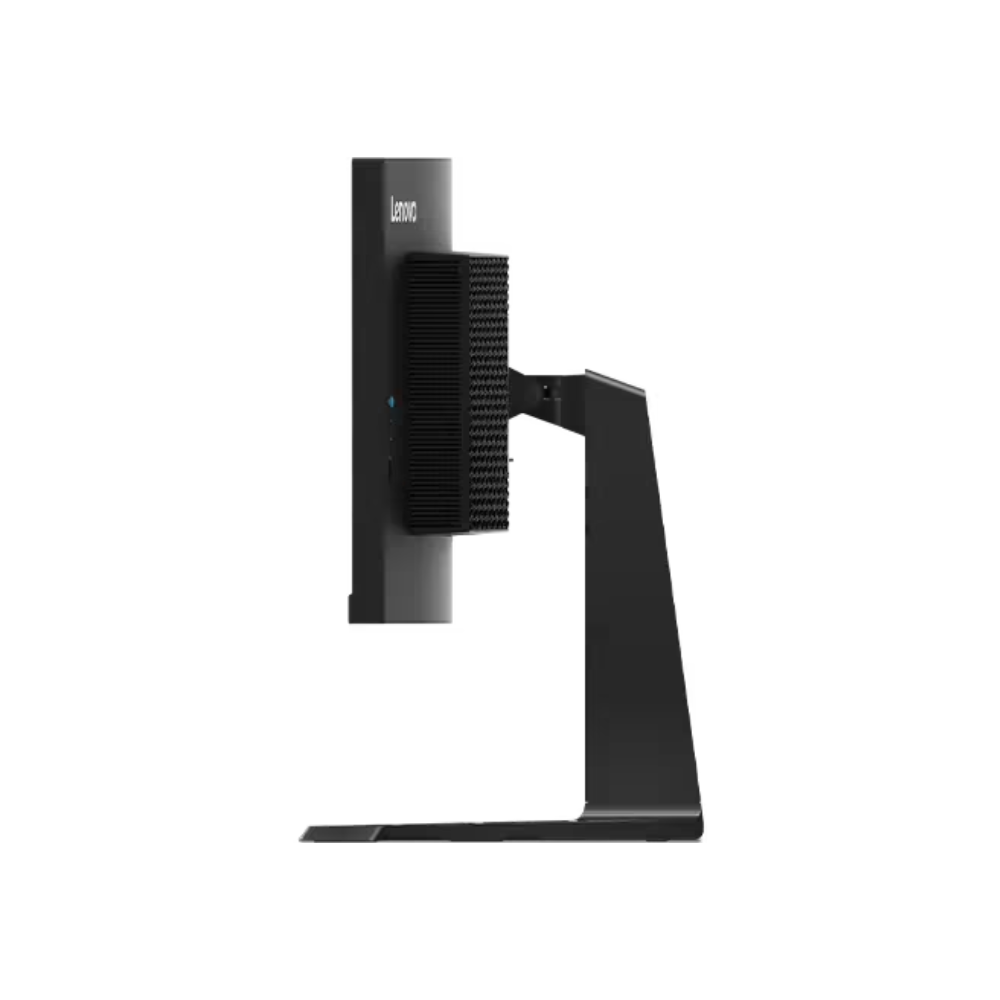

| Stand | Tilt, Swivel, Height Adjust Stand |
| Case Color | Raven Black |
| Side Bezel Width | 2.0 mm |
| Dimensions with Stand (HxWxD) | 541.3×807.2×320.1 mm / 21.31×31.78×12.6 inches |
| Weight (Including Stand) | 10.5 kg / 23.1 lbs. |
| Mounting | Supports VESA mount 100mm |
| ThinkCentre M Series Support | None |

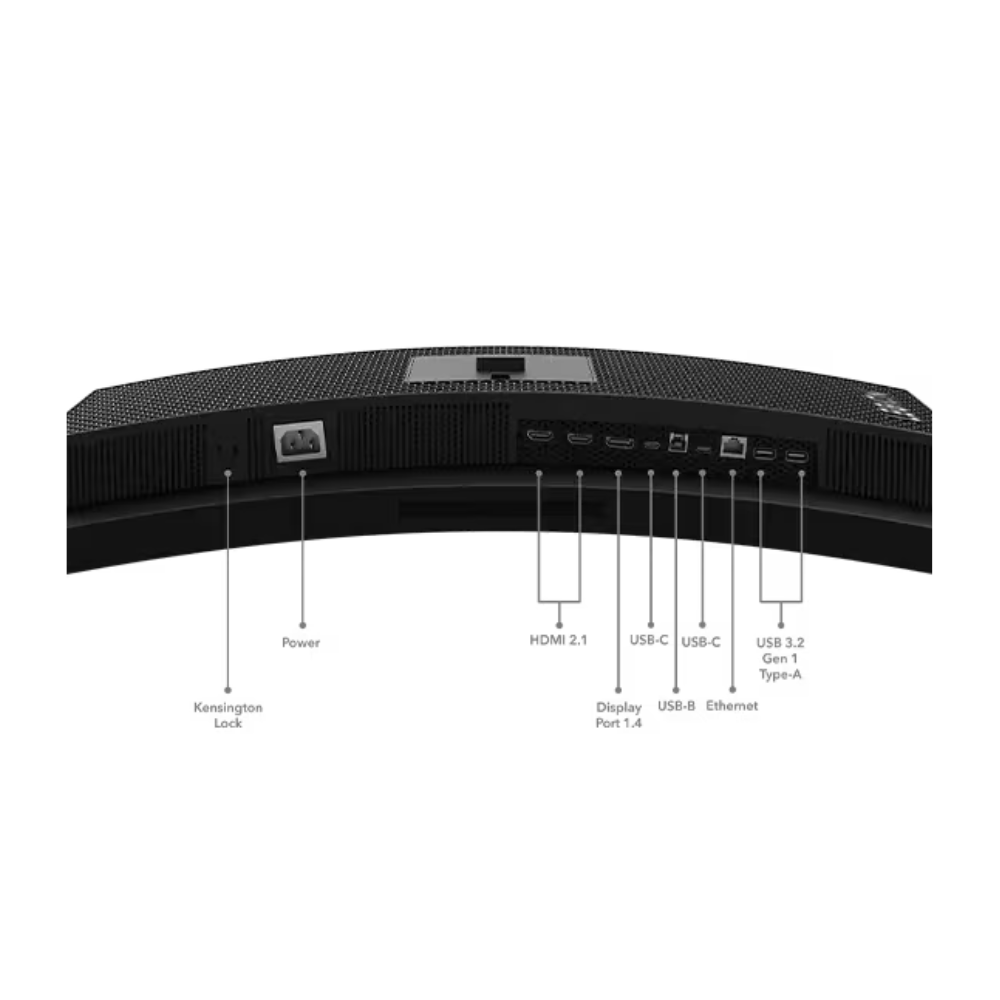

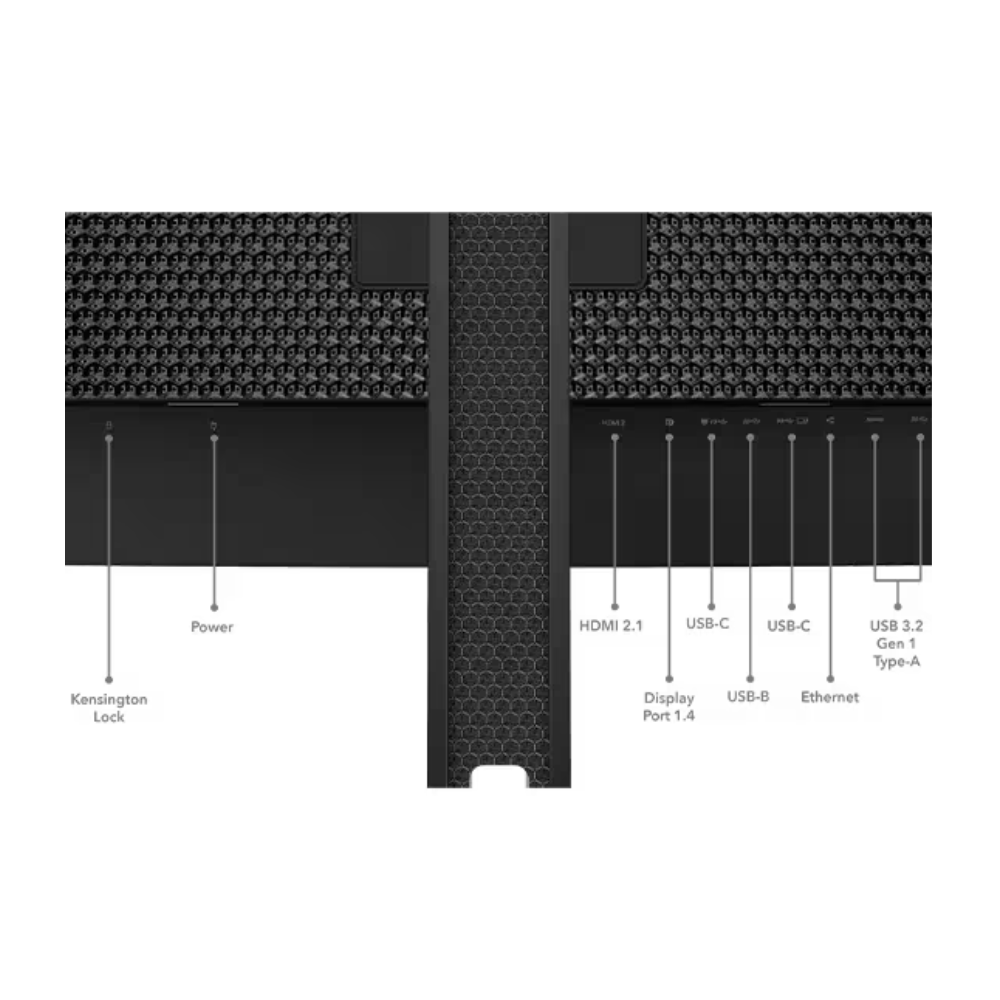

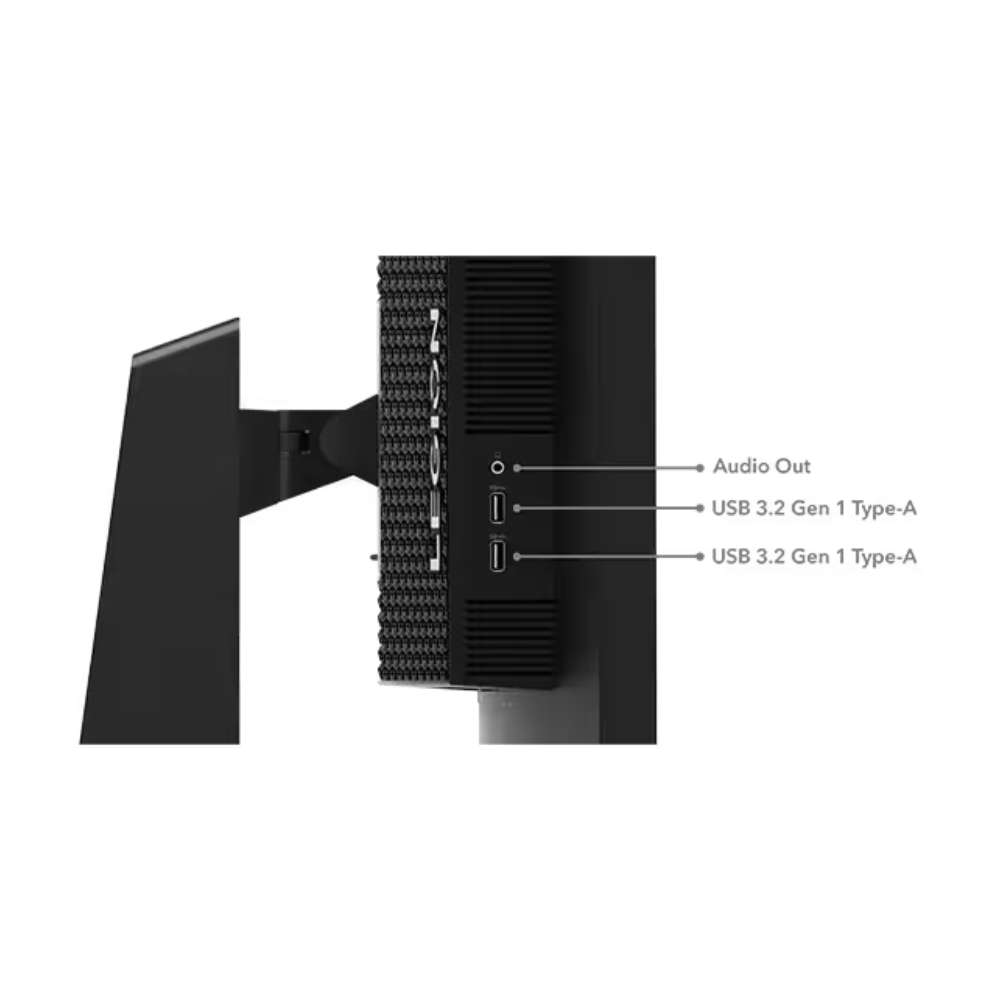

| USB Port | 4x USB 3.2 Gen 1, 1x USB-C 3.2 Gen 1 (USB downstream), 1x USB-C 3.2 Gen 1 (DP 1.4 Alt Mode, USB upstream), 1x USB-B 3.2 Gen 1 (USB upstream) |
| Video Connector | 2x HDMI 2.1, 1x DP 1.4, 1x USB-C 3.2 Gen 1 (DP 1.4 Alt Mode) |
| Network Connectivity | 1x RJ45, Ethernet (10M/100M/1000M/2500M) |
| Sync Technology | AMD FreeSync Premium Pro, VESA Adaptive Sync |
| Special Features | RGB Ambience Light |
| Operating System | Support Windows 10, Windows 11 |
| Video Cables | DP cable, USB-C to USB-C Cable, USB Type-B to Type-A Cable |
Display connections and refresh rate
Refresh Rate: 165Hz / 180Hz (Overclock). The computer output and cable must support the selected resolution and refresh rate.
