Description
Description
Description for Logitech Sight Tabletop Camera, Intelligent Multi-Participant Framing, 7 Beamforming Microphones, Dual Lens camera, Logitech Collab
Specifications
| DIMENSIONS | |
| – Table-mounted | Height: 11.77 in (299 mm) |
| Width: 6.65 in (169 mm) | |
| Depth: 6.65 in (169 mm) | |
| – Grommet-mounted | Height: 11.46 in (291.2 mm) |
| Width: 3.68 in (93.4 mm) | |
| Depth: 3.68 in (93.4 mm) | |
| Grommet hole | 25 mm or larger |
| Weight | 3.3 lbs (1.5 kg) |
| COMPATIBILITY | |
| Power type | 802.3at Type 2 “PoE+” or equivalent power supply (user supplied) |
| CAT Cable | Cat6 or greater |
| Maximum CAT Cable Length | Between Sight Dongle and Sight: 131.2 ft (40 m) |
| USB Mode | Windows 10, Windows® 11 or later, macOS (two most recent versions) |
| Appliance Mode | Room solution software license (not included), Rally Bar or Rally Bar Mini, Latest version of Logitech Collab OS |

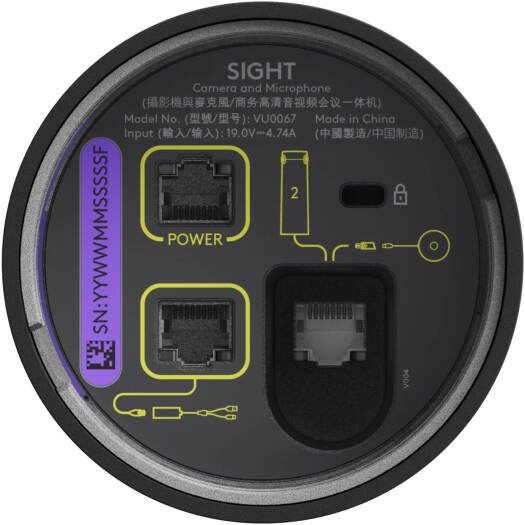

| PORTS AND INTERFACES | |
| RJ45 (audio/video data over USB) | 1 |
| RJ45 (Power Over Ethernet) | 1 |
| RJ45 (Daisychain – Rally Mic Pods) | 1 |
| TECHNICAL SPECIFICATIONS | |
| General Specifications | |
| Built-in Components | 7 beamforming microphones, dual lens camera, Logitech Collab OS platform |
| Device Management | Logitech Sync |
| Camera | |
| Sensor resolution | 4K |
| Zoom | X1 |
| Horizontal Field of View | 315° |
| Vertical Field of View | 97° |
| Diagonal Field of View | 180° |
| Focal Length | 0.07 in (1.87 mm) |
| Depth of Field | 19.69in (50 cm)-16.41ft (5 m) |
| Frame Rate (max) | 60 fps |
| Microphone Specifications | |
| Beamforming Elements | 7 omnidirectional digital MEMS microphones forming six adaptive acoustic endfire beams |
| Pickup Range | 7.55 ft (2.3 m) radius |
| Microphone Type | Digital MEMS microphones with 72 dB SNR and 130 dB AOP, dirt and water resistant to IP57 spec |
| Frequency Response | 90Hz – 16 kHz |
| Sensitivity | >-36 dBFS +/-1 dB @ 1 Pa |
| Audio processing | AEC (Acoustic Echo Cancellation), Machine Learning VAD (Voice Activity Detector) |
| Noise suppression | Artificial Intelligence Machine Learning to attenuate both stationary and non-stationary noises |
| Additional mic pods | |
| Rally Bar | Supports up to 3 Mic Pods and 2 Mic Pod Hubs |
| Rally Bar Mini | Supports up to 2 Mic Pods and 2 Mic Pod Hubs |
| Rally/Rally Plus | Supports up to a total of 6 Mic Pods and/or Mic Pod Hubs |
| ENVIRONMENTALS | |
| Operating Temperature | 0 to 40°C @ 10% – 90% RH (Non-condensing) |
| Storage Temperature | -40 to 70°C @ 10% – 90% RH (Non-condensing) |
