Product overview

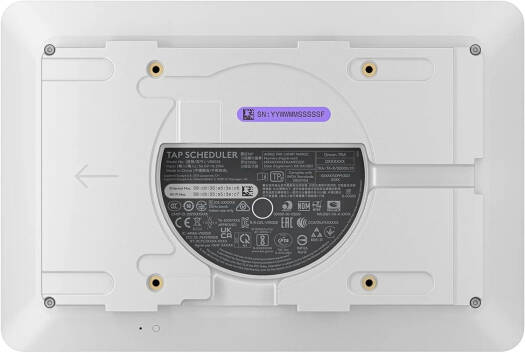

Logitech Tap Scheduler for a compatible meeting-room system.
Configuration and features: 10.1" IPS LCD Touch Display; Anti Fingerprint; Integrated Accelerometer; Integrated Ambient Light Sensor; Availability Lighting; White.
Product details: device-only dimensions: Height: 6.5 in (165 mm) Width: 9.69 in (246.2 mm) Depth: 1.12 in (28.5 mm) Weight: 700 g (24.7 oz); surface-mounted dimensions: Height: 6.5 in (165 mm) Width: 9.69 in (246.2 mm) Depth: 1.24 in (31.4 mm); mullion-mounted dimensions: Height: 6.5 in (165 mm) Width: 11.52 in (292.6 mm) Depth: 1.75 in (44.5 mm); ports and interfaces: Ethernet: 10/100 Mbps WiFi: 802.11a/b/g/n/ac Bluetooth 5.0 (inactive, reserved for future use).
Specifications
| Brand | Logitech |
|---|---|
| Product reference | 952-000094 |
| Product type | conferencing accessory |
| Device-only dimensions | Height: 6.5 in (165 mm) Width: 9.69 in (246.2 mm) Depth: 1.12 in (28.5 mm) Weight: 700 g (24.7 oz) |
| Surface-mounted dimensions | Height: 6.5 in (165 mm) Width: 9.69 in (246.2 mm) Depth: 1.24 in (31.4 mm) |
| Mullion-mounted dimensions | Height: 6.5 in (165 mm) Width: 11.52 in (292.6 mm) Depth: 1.75 in (44.5 mm) |
| Screen | Size: 10.1” (256.54 mm) diagonal IPS LCD Panel with LED Backlighting Resolution: 1280 x 800 Touch: Capacitive, 10 points multi-touch Brightness: 400 nits Contrast: 1000:1 Anti Fingerprint: Oleophobic coating Viewing angle: 85 degrees (U/D/L/R) Position angle: 0 degrees (flat on mounting surface) |
| General specifications | Integrated accelerometer Integrated ambient light sensor 100 mm x 100 mm VESA FDMI Cable exits: horizontal / vertical / center |
| Power and cables | Power over Ethernet (PoE), IEEE 802.3af Type 1, Class 3 device *Requires PoE enabled network or PoE Injector and ethernet cable (Not included) |
| Ports and interfaces | Ethernet: 10/100 Mbps WiFi: 802.11a/b/g/n/ac Bluetooth 5.0 (inactive, reserved for future use) |
| Environmental | Operating Temperature: 0 to 40°C Storage Temperature: -40 to 70°C Humidity: 10-95% |
| Security | Full Disk Encryption: AES-128 Data Encryption: Symmetric Keys, PKI Device Identity: Protected by device attestation Key Protection: Arm TrustZone |
| Package contents | Logitech Tap Scheduler Multi-surface mount (glass/drywall) Corner mount accessory Mullion mount Mounting hardware Documentation |
| Height | 6.5 in (165 mm) |
| Weight | 700 g (24.7 oz) |
| Size | 10.1” (256.54 mm) diagonal |
| Resolution | 1280 x 800 |
| Touch | Capacitive, 10 points multi-touch |
| Brightness | 400 nits |
| Contrast | 1000:1 |
| Anti fingerprint | Oleophobic coating |
| Viewing angle | 85 degrees (U/D/L/R) |
| Position angle | 0 degrees (flat on mounting surface) |
| Cable exits | horizontal / vertical / center |
| Ethernet | 10/100 Mbps |
| Wifi | 802.11a/b/g/n/ac |
| Operating temperature | 0 to 40°C |
| Storage temperature | -40 to 70°C |
| Humidity | 10-95% |
| Full disk encryption | AES-128 |
| Data encryption | Symmetric Keys, PKI |
| Device identity | Protected by device attestation |
| Key protection | Arm TrustZone |
| Graphite plastics | 54% post-consumer recycled material |
| Title configuration | 10.1" IPS LCD Touch Display; Anti Fingerprint; Integrated Accelerometer; Integrated Ambient Light Sensor; Availability Lighting; White |
Choosing this product
Match the exact conferencing platform, connection and mounting requirements. Check the stated included components.
