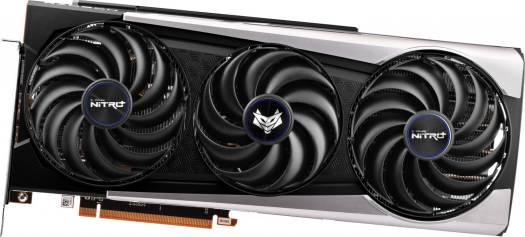

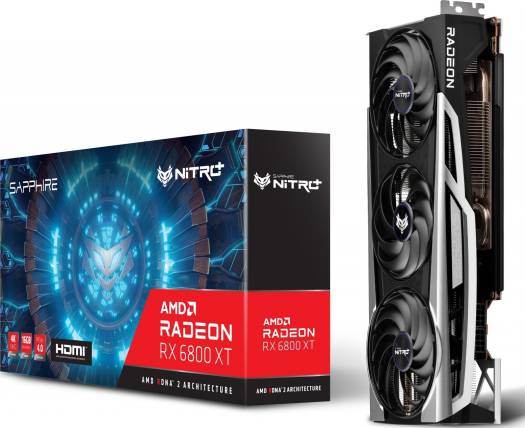

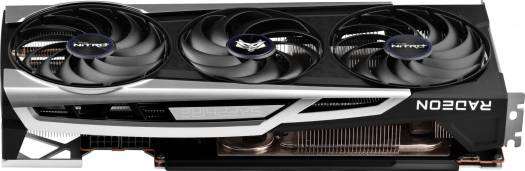

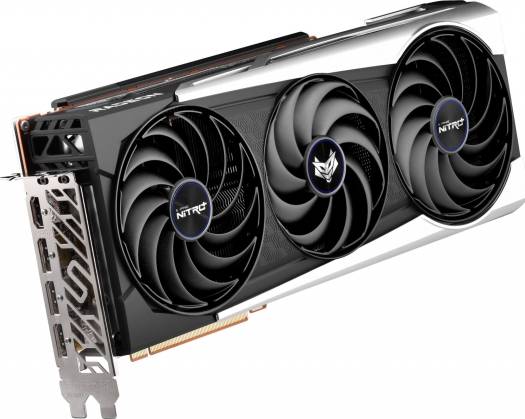

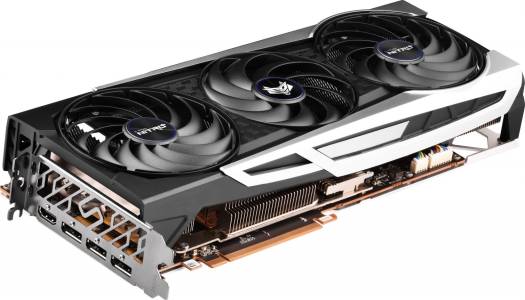

SAPPHIRE NITRO+ AMD Radeon™ RX 6800 XT

The NITRO+ AMD Radeon™ RX 6800 XT delivers powerhouse 4K gaming performance with vivid visuals for an elevated experience. The all-new innovative Wave Fin Design working in tandem with our V-Shape Fin Design for GPU Cooling reduces wind friction and centralizes airflow for optimal heat dissipation and a virtually silent system. Cutting edge Memory & VRM Cooling with Heat-Pipes and next gen K6.5 Memory Pad ensures you can push your performance to new limits while keeping the NITRO+ AMD Radeon™ RX 6800 XT components icy cool. The brand new Hybrid Fan Design combines the tranquility and strong air pressure features that exhibit ultimate levels of downward air pressure through the fan while keeping fan noise low. Incredible ARGB Lighting across the graphics card using our SAPPHIRE TriXX software fused with beautiful aesthetic styling will ensure the NITRO+ AMD Radeon™ RX 6800 XT is a stunning addition to every enthusiast gamer’s PC. NITRO Charge your PC with the NITRO+ AMD Radeon™ RX 6800 XT and elevate your gaming experience to the next level!

SAPPHIRE NITRO+ Graphics Card FEATURES

Explore all the incredible features that come with the SAPPHIRE NITRO+ AMD Radeon™ RX 6800 XT Graphic Card. We’ve split our features into 3 categories so you can easily see all the features we pride ourselves in designing to create the best gaming experience possible for you

COOLTECH

Our superior cooling technology to keep your temperatures low at a high framerate

• *NEW for RX 6000 Series* Hybrid Fan Blade
• *NEW for RX 6000 Series* WAVE Fin design
• *NEW for RX 6000 Series* V-Shape Fin Design for GPU Cooling
• *NEW for RX 6000 Series* Integrated Cooling Module
• *NEW for RX 6000 Series* K6.5 Memory Pad
• Intelligent Fan Control
• Precision Fan Control
• Tri-X Cooling Technology

DNA

Our core parts that elevate the life of our products through quality, robustness & reliability

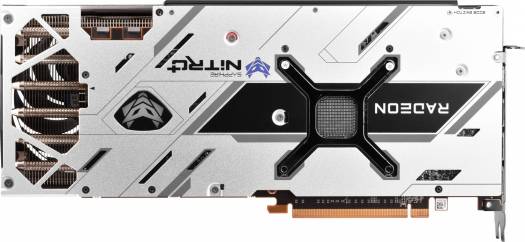

• Backplate (Tough Metal Backplate)
• Two-Ball Bearing
• Fan Quick Connect
• Fuse Protection
• Dual BIOS

PLUS

All of the extra features that make our SAPPHIRE Boards so special and unique

• TriXX Supported
• TriXX Boost
• Software BIOS Switch
• Max Boost
• Power Design
• ARGB LED Logo, Lightstrip & Backplate Logo
• Optional Fan Glow ARGB  support
• NITRO Glow
• ARGB Audio Visualization
• Fan Check
• Free Flow

Software BIOS Switch

Switch from performance mode to silent mode or back using our TriXX software for a quick and easy switch between your dual BIOS modes.

WAVE Fin Design & V-Shape Fin Design for GPU cooling

The WAVE Fin Design reduces friction when the wind goes into the fin module resulting in a reduction of the wind cut noise.

The V-shape fin design on top of the GPU accelerates and centralizes the air flow around the GPU to dissipate heat efficiently.

Hybrid Fan Blade

The new hybrid fan design combines the quietness of a traditional axial fan design and strong air pressure of a blower fan design to generate an improvement in the downward air pressure through the fan while keeping the fan noise low.

Integrated Cooling Module & K6.5 Memory Pad

The combined Memory & VRM cooling module cools the memory, MOSFET, and the chokes. Two heat pipes are added underneath the module to dissipate the heat from the components with better efficiency.

When compared to the previous K5, the K6.5 Memory Pad has a nearly 38% better thermal conductivity between the components and the cooler.

TRI-X COOLING TECHNOLOGY

• An innovative mixture of Robust VRM Cooling and independent memory thermal modules work in tandem to remove heat efficiently and effectively across all sections
• Tunneled fins increase convection airflow and ensure wind continuously flows through the cooling and fan system
• Heat is dissipated by a trio of efficient fans – two, slightly bigger, on the sides, running anticlockwise, and a smaller middle fan running clockwise to ensure optimal airflow


  GPU	Radeon™ RX 6800 Graphics
  	7nm GPU
  	RDNA 2 Architecture
  Engine Clock	Boost Clock: Up to 2360 MHz
  	Game Clock: Up to 2110 MHz
  	Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
  Stream Processors	4608
  Infinity Cache	128MB
  Ray Accelerators	72
  Memory Size/Bus	16GB GDDR6
  Memory Clock	16 Gbps Effective
  Displays	Maximum 4 Displays
  Resolution	HDMI™: 7680×4320
  	DisplayPort1.4: 7680×4320
  Interface	PCI-Express 4.0
  Output	1x HDMI
  	3x DisplayPort
  BIOS Support	Dual UEFI
  Game Index	4K
  Sapphire Features	Dual BIOS
  	Max Boost
  	TriXX Software Switch
  	Premium Digital Power Design
  	Fuse Protection
  	Tri-X Cooling Technology
  	Intelligent Fan Control
  	Precision Fan Control
  	Backplate with ARGB
  	Two-Ball Bearing Fans
  	Hybrid Fan Blade
  	Wave Fin Design
  	V Shape Fin Design for GPU Cooling
  	Integrated Cooling Module
  	K6.5 Memory Pad
  	TriXX Supported
  	Fan Check
  	Fan Quick Connect
  	TriXX Boost
  	NITRO Glow
  	External RGB LED MB Synchronization
  AMD Features	AMD RDNA™ 2 Gaming Architecture
  	DirectX® 12 Ultimate
  	Hardware Raytracing
  	7nm GPU
  	GDDR6 Memory
  	PCI® Express 4.0 Support
  	AMD FreeSync™ Technology
  	DisplayPort™ 1.4 with DSC
  	HDMI™ 2.1 VRR
  	Video Streaming up to 8K
  	Radeon™ VR Ready Premium
  	AMD FidelityFX
  	Radeon™ Image Sharpening
  	Radeon™ Anti-Lag
  	Radeon™ Software
  	Game Driver Optimizations
  	High Performance 4K Gaming
  Cooling	3 Fans
  Form Factor	2.7 slot, ATX
  	Dimension: 310(L)X 134.3(W)X 55.3 (H)mm
  Power Consumption	350W
  OS	Linux®, Windows® 7*, Windows® 10, and Windows 8.1. 64-bit  operating system required
  	*Does not support all features including but not limited to Hardware Raytracing
  System Requirement	Minimum 850 Watt Power Supply
  	2 x 8-pin Power Connector.
  	PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
  	Minimum 8GB of system memory. 16GB recommended.
