Product overview

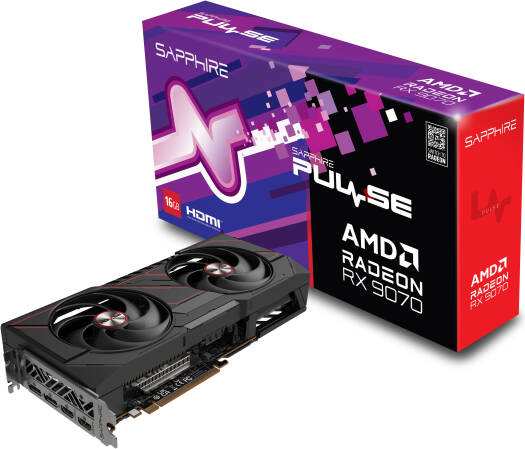

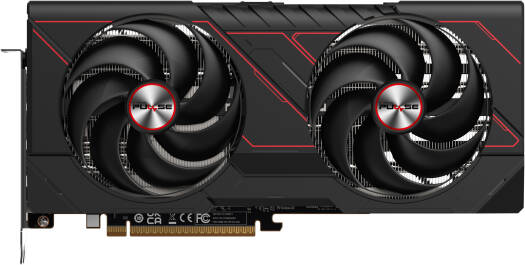

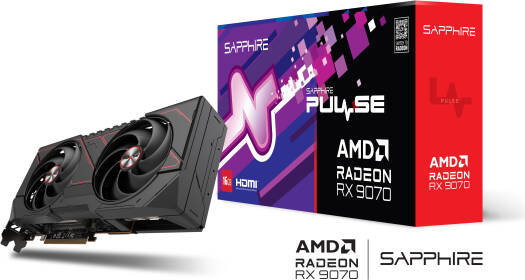

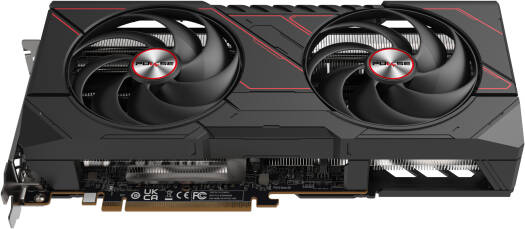

SAPPHIRE PULSE AMD Radeon RX 9070 Graphics Card for desktop graphics processing.
Configuration and features: 16GB GDDR6 256-Bit Memory; 2520 MHz Boost Clock; 20 Gbps Memory Clock; 3584 Stream Processors; PCI-Express 5.0 x16.
Product details: video memory: 16GB GDDR6; gpu: AMD Radeon™ RX 9070; architecture: AMD RDNA™ 4; dimensions: 280 × 120.25 × 51.5 mm.
Specifications
| Brand | SAPPHIRE |
|---|---|
| Product reference | 11349-03-20G |
| Product type | graphics card |
| Gpu | AMD Radeon™ RX 9070 |
| Architecture | AMD RDNA™ 4 |
| Dimensions | 280 × 120.25 × 51.5 mm |
| Bios support | UEFI |
| Game index | 4K |
| Supported os | Linux®, Windows® 10/11 (64-bit) |
| Boost clock | Up to 2520 MHz |
| Game clock | Up to 2070 MHz |
| Stream processors | 3584 |
| Compute units | 56 (3rd Gen RT + 2nd Gen AI Accelerators) |
| Ray accelerators | 56 |
| Ai accelerators | 112 |
| Infinity cache | 64 MB |
| Memory size | 16 GB GDDR6 |
| Memory bus | 256-bit |
| Memory clock | 20 Gbps Effective |
| Max displays | 4 |
| Hdmi resolution | Up to 7680 × 4320 |
| Displayport resolution | Up to 7680 × 4320 (DP 2.1a) |

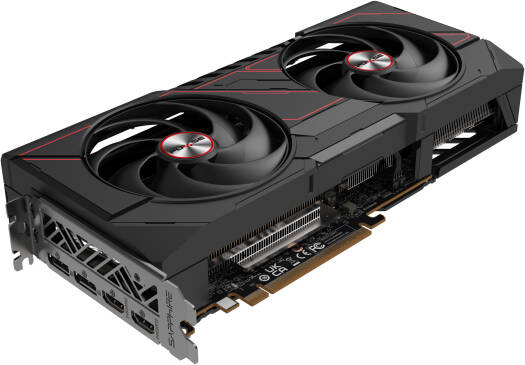

| Outputs | 2 × HDMI®, 2 × DisplayPort™ 2.1a |
| Interface | PCI Express® 5.0 x16 |

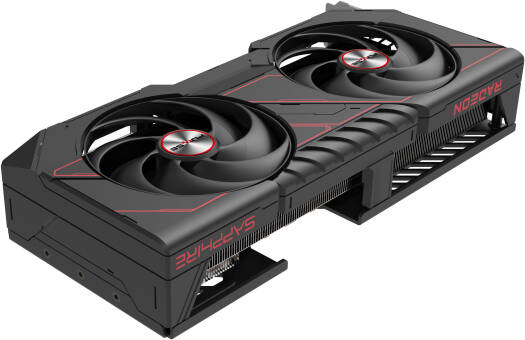

| Cooler type | Dual-X Cooling |
| Cooling features | AeroCurve Fan Blade, Free Flow, Integrated Cooling Module, High TG Copper PCB, Optimized Composite Heatpipes, Two-Ball Bearing Fans |
| Thermal material | Honeywell PTM7950 TIM |
| Typical board power | 220 W |
| Power connectors | 2 × 8-pin |
| Recommended psu | Minimum 650 W |

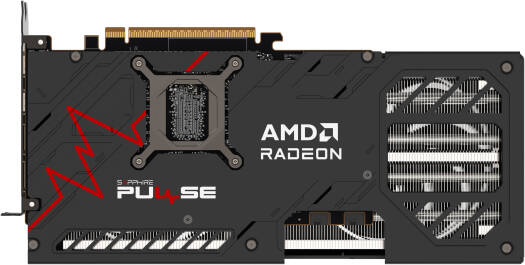

| Sapphire features | Dual-X Cooling, AeroCurve Fan Blade, Free Flow, FrameDefense, Integrated Cooling Module, High TG Copper PCB, Optimized Composite Heatpipes, Metal Backplate, Two-Ball Bearing Fans, 12-Phase Digital Power Design, Fuse Protection, Intelligent Fan Control, Precision Fan Control, TriXX Supported, TriXX Boost |
| Psu requirement | Minimum 650 W |
| Motherboard requirement | PCI Express® x16 slot |
| System memory | Minimum 8 GB (16 GB recommended) |
| Title configuration | 16GB GDDR6 256-Bit Memory; 2520 MHz Boost Clock; 20 Gbps Memory Clock; 3584 Stream Processors; PCI-Express 5.0 x16 |
| Video memory | 16GB GDDR6 |
Choosing this product
Check case clearance, power-supply connectors and the required power rating. Match the card interface and display outputs to your system.
