Product overview

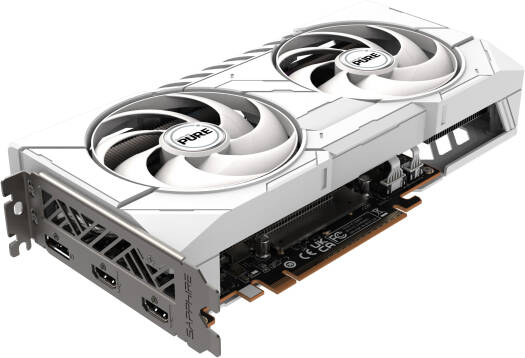

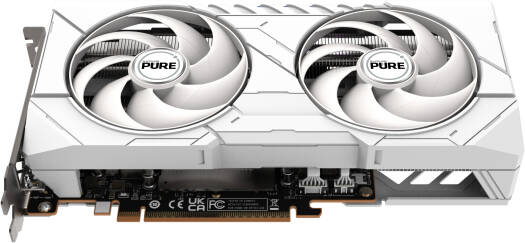

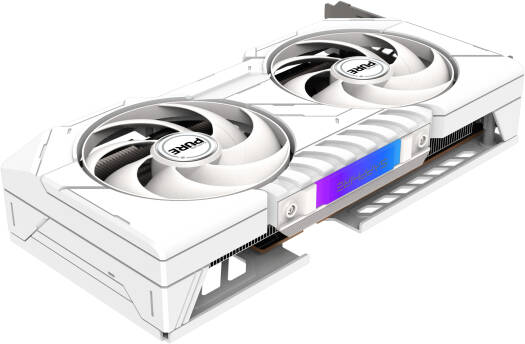

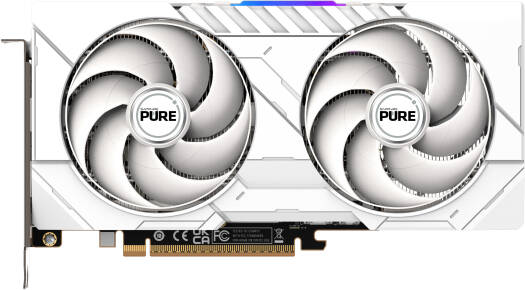

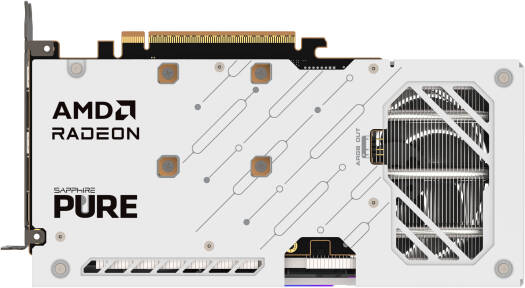

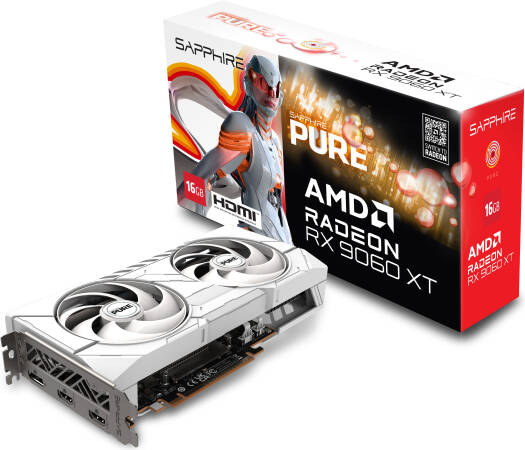

SAPPHIRE PURE AMD Radeon RX 9060 XT Graphics Card for desktop graphics processing.
Configuration and features: 16GB GDDR6 128-Bit Memory; 3290 MHz Boost Clock; 2048 Stream Processors; 20 Gbps Memory Speed; PCI-Express 5.0 x16.
Product details: memory: 16 GB GDDR6 / 128-bit; video memory: 16GB GDDR6; gpu: AMD Radeon™ RX 9060 XT; architecture: AMD RDNA™ 4.
Specifications
| Brand | SAPPHIRE |
|---|---|
| Product reference | 11350-02-20G |
| Product type | graphics card |
| Gpu | AMD Radeon™ RX 9060 XT |
| Architecture | AMD RDNA™ 4 |
| Engine clock | Boost: Up to 3290 MHz Game: Up to 2700 MHz |
| Stream processors | 2048 |
| Compute units | 32 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
| Ray accelerators | 32 |
| Ai accelerators | 64 |
| Infinity cache | 32 MB |
| Memory | 16 GB GDDR6 / 128-bit |
| Memory clock | 20 Gbps Effective |
| Displays | Maximum 3 Displays |
| Max resolution | HDMI®: 7680×4320 DisplayPort™ 2.1a: 7680×4320 |
| Interface | PCI-Express 5.0 x16 |
| Outputs | 2x HDMI®, 1x DisplayPort™ 2.1a |
| Bios support | UEFI |
| Game index | 1440P |
| Power consumption | 170W Typical |
| Os support | Linux®, Windows® 10/11 (64-bit) |
| System requirements | 450W PSU, 1x 8-pin Power, PCIe x16 Slot, 8GB RAM (16GB recommended) |
| Cooler type | Dual-X Cooling, AeroCurve Fan Blade, Free Flow, Integrated Cooling Module, High TG Copper PCB, Optimized Composite Heatpipes, Two-Ball Bearing Fans |
| Sapphire features | PTM7950 TIM, FrameDefense, Metal Backplate, ARGB Logo, 9-Phase Power, Fuse Protection, Intelligent/Precision Fan Control, TriXX Boost, RGB Sync, Performance vs. Efficiency Quicksets, Glow! |
| Accessories | 3-pin 5V ARGB Cable |
| Boost | Up to 3290 MHz |
| Game | Up to 2700 MHz |
| Hdmi® | 7680×4320 |
| Displayport™ 2.1a | 7680×4320 |
| Size | 240 × 124 × 46.1 mm |
| Title configuration | 16GB GDDR6 128-Bit Memory; 3290 MHz Boost Clock; 2048 Stream Processors; 20 Gbps Memory Speed; PCI-Express 5.0 x16 |
| Video memory | 16GB GDDR6 |
Choosing this product
Check case clearance, power-supply connectors and the required power rating. Match the card interface and display outputs to your system.
