Description
Description
Product overview

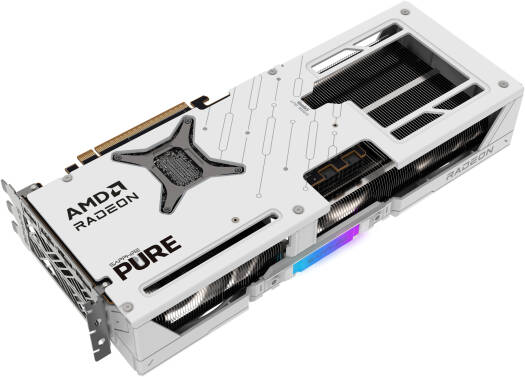

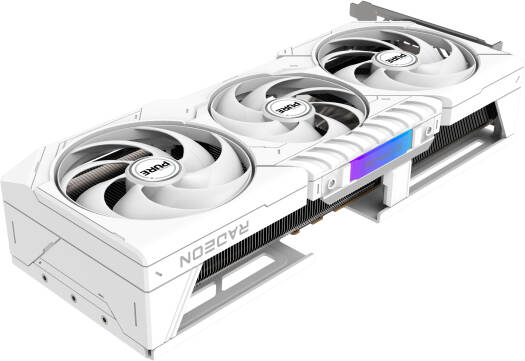

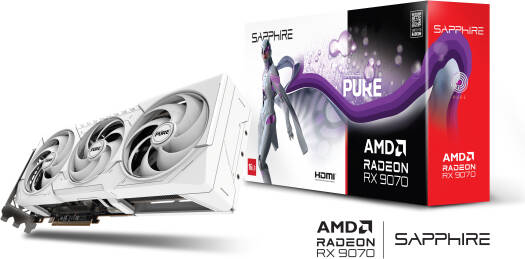

SAPPHIRE PURE AMD Radeon RX 9070 OC Graphics Card for desktop graphics processing.
Configuration and features: 16GB GDDR6 256 Bit Memory; 2700 MHz Boost Clock; 20 Gbps Memory Speed; 3584 Stream Processors; PCI-Express 5.0 x16; White.
Product details: video memory: 16GB GDDR6; gpu: AMD Radeon™ RX 9070; architecture: AMD RDNA™ 4; dimensions: 320 × 120.25 × 61.6 mm.
Specifications
| Brand | SAPPHIRE |
|---|---|
| Product reference | 11349-02-20G |
| Product type | graphics card |
| Gpu | AMD Radeon™ RX 9070 |
| Architecture | AMD RDNA™ 4 |
| Dimensions | 320 × 120.25 × 61.6 mm |
| Bios support | UEFI |
| Game index | 4K |
| Supported os | Linux®, Windows® 10/11 (64-bit) |
| Boost clock | Up to 2700 MHz |
| Game clock | Up to 2210 MHz |
| Stream processors | 3584 |
| Compute units | 56 (3rd Gen RT + 2nd Gen AI Accelerators) |
| Ray accelerators | 56 |
| Ai accelerators | 112 |
| Infinity cache | 64 MB |
| Memory size | 16 GB GDDR6 |
| Memory bus | 256-bit |
| Memory clock | 20 Gbps Effective |
| Max displays | 4 |
| Hdmi resolution | Up to 7680 × 4320 |
| Displayport resolution | Up to 7680 × 4320 (DP 2.1a) |
| Outputs | 2 × HDMI®, 2 × DisplayPort™ 2.1a |
| Interface | PCI Express® 5.0 x16 |
| Cooler type | Tri-X Cooling |
| Cooling features | AeroCurve Fan Blade, Free Flow, Integrated Cooling Module, High TG Copper PCB, Optimized Composite Heatpipes, Two-Ball Bearing Fans |
| Thermal material | Honeywell PTM7950 TIM |
| Typical board power | 245 W |
| Power connectors | 2 × 8-pin |
| Recommended psu | Minimum 650 W |
| Sapphire features | Tri-X Cooling, AeroCurve Fan Blade, Free Flow, FrameDefense, Integrated Cooling Module, High TG Copper PCB, Optimized Composite Heatpipes, Metal Backplate, ARGB SAPPHIRE Logo, Two-Ball Bearing Fans, 12-Phase Digital Power Design, Fuse Protection, Intelligent Fan Control, Precision Fan Control, TriXX Supported, Performance vs. Efficiency Quicksets, Glow!, TriXX Boost, External RGB LED MB Sync |
| Accessories | L-Shape Support Bracket, 3-pin 5V ARGB Cable |
| Psu requirement | Minimum 650 W |
| Motherboard requirement | PCI Express® x16 slot |
| System memory | Minimum 8 GB (16 GB recommended) |
| Title configuration | 16GB GDDR6 256 Bit Memory; 2700 MHz Boost Clock; 20 Gbps Memory Speed; 3584 Stream Processors; PCI-Express 5.0 x16; White |
| Video memory | 16GB GDDR6 |
Choosing this product
Check case clearance, power-supply connectors and the required power rating. Match the card interface and display outputs to your system.
