Description
Description

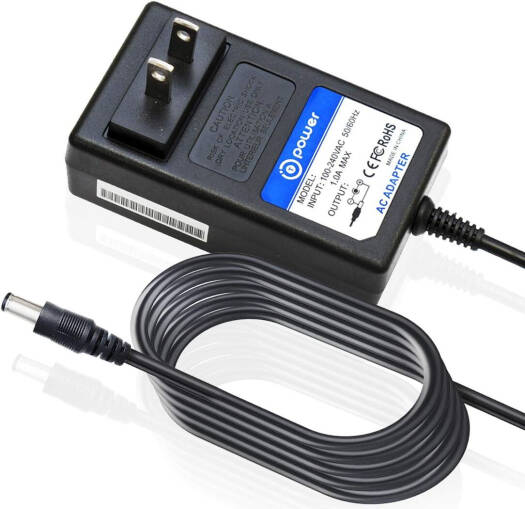

The T POWER 12V AC/DC Power Adapter Charger is an aftermarket, high-efficiency power supply unit explicitly engineered to replace factory Yamaha power bricks. This wall-mount charger acts as a universal voltage bridge for mid-level portable keyboards, MIDI synthesizers, and digital arranger pianos, supplying the clean, regulated current required to drive sensitive internal sound chips and onboard amplification systems without introducing audio hum.
Technical Specifications
| Feature | Specification |
| Product Category | Continuous-Duty AC to DC Step-Down Power Adapter Supply |
| Brand / Collection | T POWER Musical Instrument Power & Safety Infrastructure Series |
| OEM Cross-Compatibility | Replacement for Yamaha PA-130, PA-130B, PA-150, PA-150A, PA-150B, PA-3, PA-5, PA-6 |
| Input Voltage Range | Universal 100V – 240V AC (Automatic Multi-Country Auto-Switching Architecture) |
| Input AC Frequency | 50 Hz / 60 Hz Standard Mains Frequency Matching |
| Output DC Voltage | Regulated 12.0 Volts DC |
| Output Current Max Capacity | Safely powers devices requiring up to 1.5A to 2.0A of continuous load |
| DC Plug Configuration | 2.1mm x 5.5mm Standard Coaxial Barrel Plug (Center-Positive Type C+ve) |
| Internal Safety Controls | Integrated OVP (Over Voltage), OCP (Over Current), and SCP (Short Circuit Protection) |
| Compliance Certifications | Fully compliant with CE, FCC, and RoHS electronic safety standards |
| Cable Jacket Compound | Flexible, dual-insulated heavy-duty rubberized polymer jacket |
| Hardware Fitment | Yamaha P-Series (P-45, P-125), DGX-Series, PSR-E Series, NP-Series, YPT-Series |
| Total Cable Reach | Approximately 6.6 Feet / 2.0 Meters from wall to barrel tip |
| Color Finish | Industrial Matte Tech Black |
