Product overview

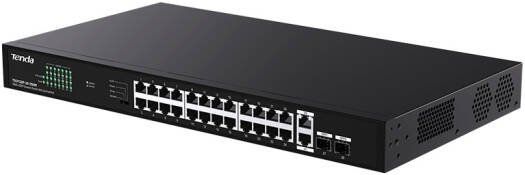

Tenda 26GE+2SFP Ethernet Switch With 24-Port PoE Dedicated for SMB Networking and Surveillance for connecting network devices.
Configuration and features: 41.7 Mpps Packet Forwarding Mode; 56 Gbps Switch Capacity.
Product details: network standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at; led indicators: Power, Link/Act, PoE MAX; interfaces: 26 × 1GE RJ45 ports, 2 × 1GE SFP ports; transmission media: Recommended: CAT5/5e UTP or better.
Specifications
| Brand | Tenda |
|---|---|
| Product reference | TEG1128P-24-250W |
| Product type | network switch |
| Network standards | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at |
| Led indicators | Power, Link/Act, PoE MAX |
| Interfaces | 26 × 1GE RJ45 ports, 2 × 1GE SFP ports |
| Transmission media | Recommended: CAT5/5e UTP or better |
| Protection | Port: 6 KV; Power: 6 KV |
| Forwarding mode | Store-and-forward |
| Switch capacity | 56 Gbps |
| Packet forwarding rate | 41.7 Mpps |
| Buffer | 4 Mb |
| Mac address table | 8K |
| Poe budget | Per Port: AF 15.4W, AT 30W; Total: 230W |
| Power consumption | 250W |
| Input voltage | 100–240V AC, 50/60Hz |
| Mounting | Rack, Desktop, Wall mounting supported |
| Operating temp. | 0℃ ~ 45℃ |
| Storage temp. | -40℃ ~ 70℃ |
| Operating humidity | 10% ~ 90% (non-condensing) |
| Storage humidity | 5% ~ 90% (non-condensing) |
| Functions | One-key to change network mode: |
| Standard mode | All ports communicate (works as non-managed PoE switch) |
| Priority mode | Ports 1–8 are high-priority to reduce packet loss and congestion |
| Extend mode | Ports 17–24 support up to 250m transmission distance, all ports communicate |
| Vlan mode | Ports 1–24 isolated, only communicate with ports 25–26 and SFP1–SFP2 (broadcast storm/DHCP conflict isolation) |
| Recommended | CAT5/5e UTP or better |
| Port | 6 KV; Power: 6 KV |
| Per port | AF 15.4W, AT 30W; Total: 230W |
| Title configuration | 41.7 Mpps Packet Forwarding Mode; 56 Gbps Switch Capacity |
Choosing this product
Compare port speeds and uplink types. For PoE devices, check both the per-port limit and the total power budget against the connected equipment.
