Product overview

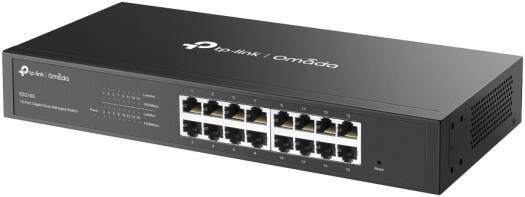

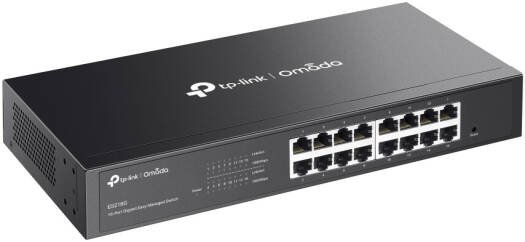

TP-LINK ES216G Omada 16-Port Gigabit Easy Managed Switch for connecting network devices.
Configuration and features: 16 RJ45 ports; Centralized Cloud Management; Port Isolation; Automatic Loop Prevention & IGMP Snooping; Black.
Product details: interface: 16× 10/100/1000 Mbps RJ45 Ports, Auto-Negotiation/Auto MDI/MDIX; fan quantity: Fanless; installation: Desktop, Rackmountable; physical security lock: Yes.
Specifications
| Brand | TP-Link |
|---|---|
| Product reference | ES216G |
| Product type | network switch |
| Interface | 16× 10/100/1000 Mbps RJ45 Ports, Auto-Negotiation/Auto MDI/MDIX |
| Fan quantity | Fanless |
| Installation | Desktop, Rackmountable |
| Physical security lock | Yes |
| Power supply | 100-240 V~50/60 Hz |
| Dimensions (w x d x h) | 11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm) |
| Surge protection | ±6kV |
| Switching capacity | 32 Gbps |
| Packet forwarding rate | 23.8 Mpps |
| Mac address table | 8K |
| Packet buffer memory | 4 Mbit |
| Jumbo frame | 15 KB |
| Quality of service | Port-based/802.1p/DSCP QoS, 8 Priority Queues, Priority Schedule Mode – WRR (Weighted Round Robin), Queue Weight Config, Bandwidth Control – Port-Based Rating Limit, Storm Control – Multiple Control Modes (kbps/pps), Broadcast/Multicast/Unknown -Unicast Control |
| L2 features | Static Link Aggregation, Loop Prevention/Loopback Detection, Flow Control – 802.3x, Mirroring – Port Mirroring, One-to-One, Many-to-One, Ingress/Egress/Both, Port Statistics – Port Mirror Status, Traffic Statistics, 802.1ab LLDP |
| L2 multicast | IGMP Snooping – IGMP v1/v2/v3 Snooping, Fast Leave |
| Vlan | MTU VLAN, Port-Based VLAN, 802.1Q Tag VLAN – Max 32 VLAN Groups, 4K VID |
| Transmission method | Store-And-Forward |
| Title configuration | 16 RJ45 ports; Centralized Cloud Management; Port Isolation; Automatic Loop Prevention & IGMP Snooping; Black |
Choosing this product
Compare port speeds and uplink types. For PoE devices, check both the per-port limit and the total power budget against the connected equipment.
