Description for TP-LINK LS1210P Desktop Switch, 8-Port 10/100Mbps+2-Port Gigabit, 30 W PoE Output, 250 m (820ft) Data & Power Range, Isolation Mode, Desktop / Wall-Mounting, Black | LS1210P

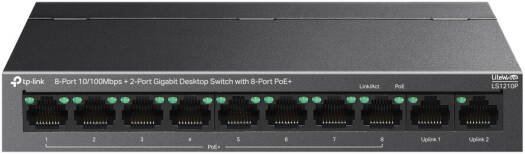

LS1210P Desktop Switch
Specification
| Standards and Protocols | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ab |
| Interface | 8 × 10/100 Mbps PoE+ RJ45 Ports + 2 × 10/100/1000 Mbps RJ45 PortsAuto Negotiation / Auto MDI/MDIX |
| Network Media | • 10BASE-T: UTP Cat 3, 4, 5 (max 100m)
• 100BASE-TX: UTP Cat 5 or above (max 100m) • 1000BASE-T: UTP Cat 5e or above (max 100m) |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Input: 220–240V, 50/60Hz (NV), Output: 53.5V DC / 1.92A) |
| LED Indicators | Power, Link/Act, PoE Status |
| Packet Forwarding Rate | 4.1664 Mpps |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant
Ports: 1–8Power Supply: 96W |
| Dimensions (W × D × H) | 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) |
| Max. Power Consumption | 99.52 W |
| Max. Heat Dissipation | 338.368 BTU/h |
| Switching Capacity | 5.6 Gbps |
| Packet Buffer Memory | 2 Mbit |
| Advanced Features | • Extend Mode (Ports 1–8)
• Isolation Mode (Ports 1–8) • PoE Auto Recovery (Ports 1–8) |
| Jumbo Frame | 2 KB |
| MAC Address Table | 2K |
| Transmission Method | Store-and-Forward |
