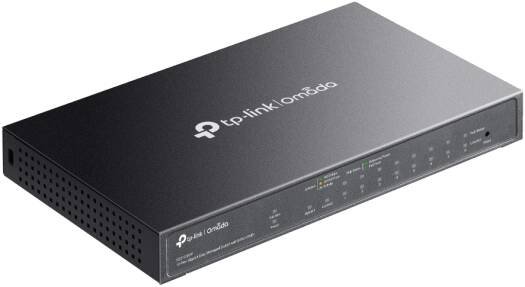

Description for Tp-Link Omada ES210GMP, 10-Port Gigabit Easy Managed Switch with 8-Port PoE+, 8 Gigabit PoE+ RJ45 Ports, Plug-and-play, Up to 250m PoE, Automatic Loop Prevention, Silent Operation | ES210GMP
Tp-Link
Omada ES210GMP
Specification
| Category | Specification |
|---|---|
| Hardware Features | |
| Interface | • 8× 10/100/1000 Mbps PoE+ RJ45 Ports (802.3at PoE+ & 802.3af PoE) |
| • 1× 10/100/1000 Mbps RJ45 Port | |
| • 1× Gigabit SFP/RJ45 Combo Port | |
| • Auto-Negotiation/Auto MDI/MDIX | |
| Fan Quantity | Fanless |
| Installation | • Desktop |

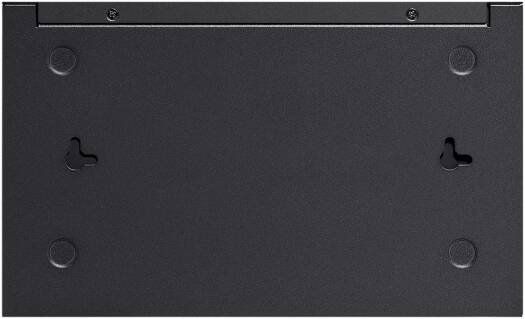

| • Wall Mount | |
| Physical Security Lock | √ |
| Power Supply | DC Power Adapter (Output: 53.5 VDC/2.43 A) |
| PoE Ports (RJ45) | • Standard: 802.3af PoE and 802.3at PoE+ compliant |
| • PoE Ports: 8 ports | |
| • PoE Budget: 123W (30W max per port) | |
| • PoE Auto Recovery‡ | |
| • Up to 250m PoE transmission distance** | |
| Dimensions (W x D x H) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
| Surge Protection | ±6kV |
| Performance | |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| Software Features | |
| Quality of Service (QoS) | • Port-based/802.1p/DSCP QoS |
| • 8 Priority Queues | |
| • Priority Schedule Mode (WRR – Weighted Round Robin) | |
| • Queue Weight Config | |
| • Bandwidth Control (Port-Based Rating Limit) | |
| • Storm Control (Multiple Control Modes: kbps/pps, Broadcast/Multicast/Unknown-Unicast Control△) | |
| L2 Features | • Static Link Aggregation |
| • Loop Prevention / Loopback Detection | |
| • Flow Control (802.3x Flow Control) | |
| • Mirroring (Port Mirroring, One-to-One, Many-to-One, Ingress/Egress/Both) | |
| • Port Statistics (Port Mirror Status, Traffic Statistics) | |
| • 802.1ab LLDP | |
| L2 Multicast | • IGMP Snooping (IGMP v1/v2/v3 Snooping, Fast Leave) |
| VLAN | • MTU VLAN |
| • Port-Based VLAN | |
| • 802.1Q Tag VLAN (Max 32 VLAN Groups, 4K VID) | |
| Transmission Method | Store-And-Forward |
| Management Features | |
| Omada App | Yes (Requires Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller) |
| Centralized Management | • Omada Cloud-Based Controller |
| • Omada Hardware Controller | |
| • Omada Software Controller | |
| Cloud Access | Yes (Requires Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller) |
| Zero-Touch Provisioning | Yes (Requires Omada Cloud-Based Controller) |
| Management Features | • Web-based GUI |
| • DHCP Client | |
| • Cable Diagnostics | |
| • Automatic Device Discovery† | |
| • Batch Configuration† | |
| • Batch Firmware Upgrading† | |
| • Unified Configuration† | |
| Others | |
| Certification | FCC, CE, RoHS |
| Package Content | • ES210GMP |
| • Power Adapter | |
| • Installation Guide | |
| • Rubber Feet | |
| Environment | • Operating Temperature: 0℃~40℃ (32℉~104℉) |
| • Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| • Operating Humidity: 10%~90% non-condensing | |
| • Storage Humidity: 5%~90% non-condensing |
