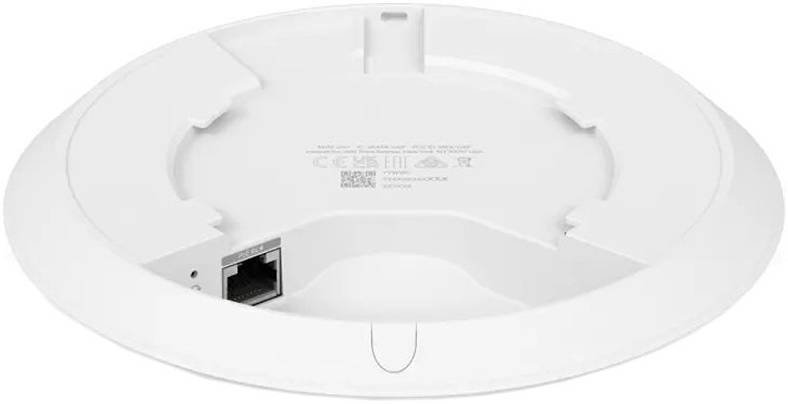

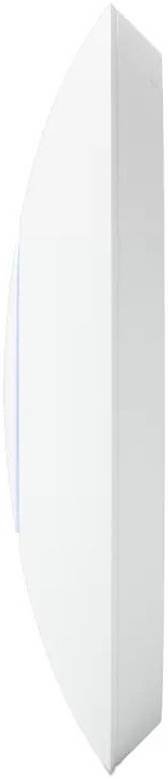

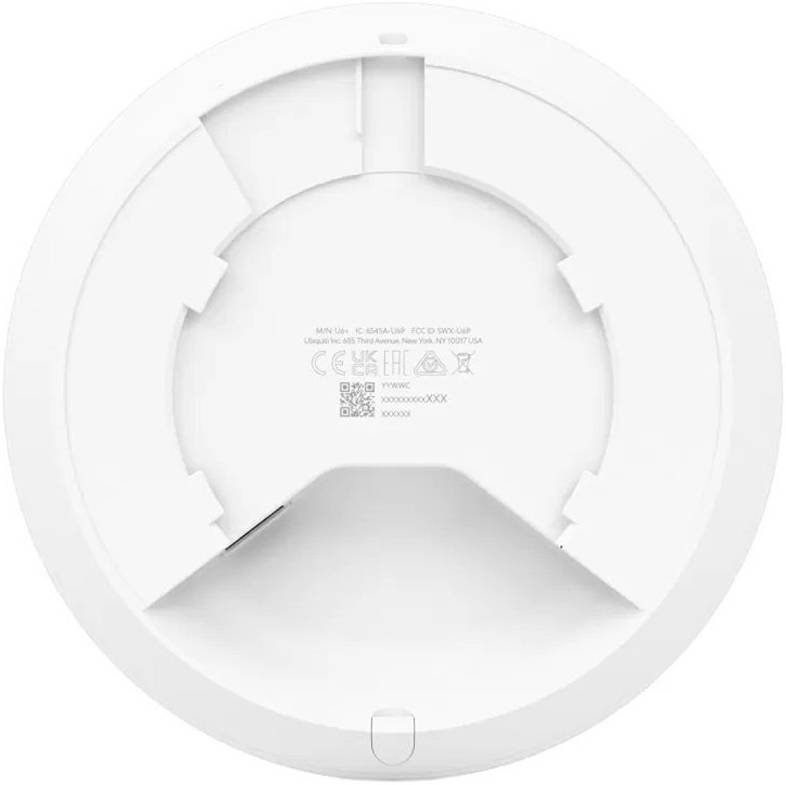

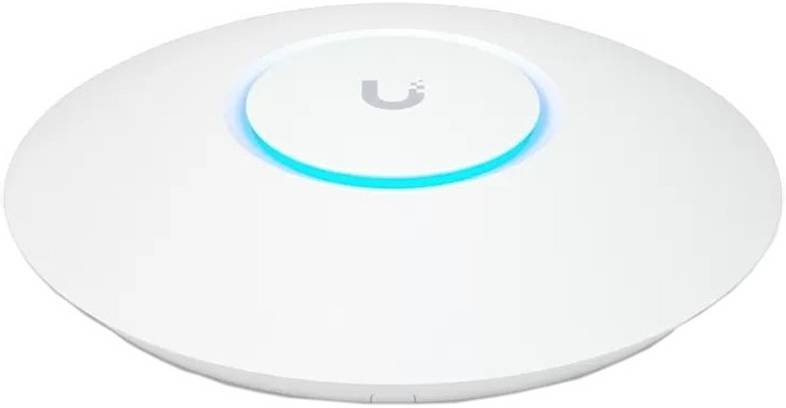

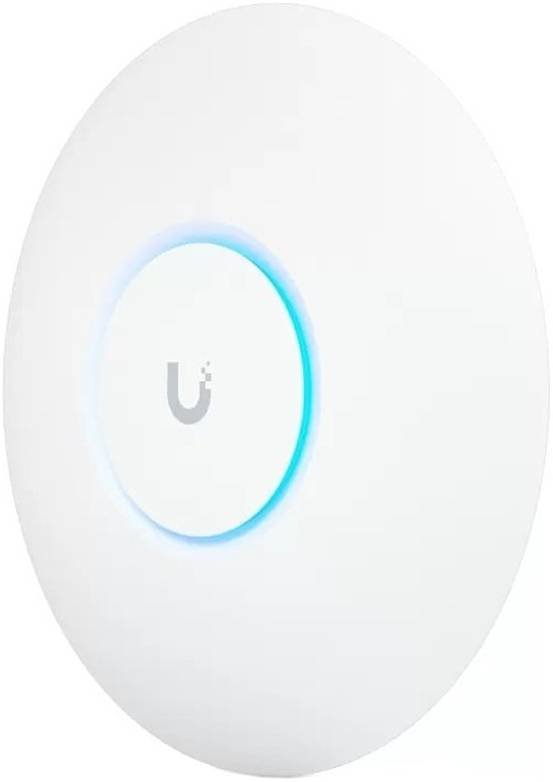

Ubiquiti Access Point U6 Plus
A compact access point improving upon the U6 Lite by bringing higher performance and dual-band WiFi6 support. Ideal for small and medium-sized businesses.
Designed primarily for small and medium-sized businesses, the UniFi U6 plus Dual-Band Wi-Fi 6 Access Point from Ubiquiti Networks expands your network with fast and reliable wireless connectivity. This compact access point discreetly mounts onto your wall or ceiling, where it blends with the environment while providing up to 1500 square feet of coverage for over 300 simultaneously connected devices.
Key Features
- Wi-Fi 6 (802.11ax)
- Up to 2975 MB/s Throughput
- 2.4 GHz / 5 GHz (Dual-Band)
- 1 x PoE-Compliant Gigabit Ethernet Port
- Includes Wall and Ceiling Mounts
- Up to 1500 Square Foot Coverage
- WPA/WPA2/WPA3 Authentication
- Compact Design
- Supports UniFi Network Controller
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | Ø160 x 33 mm (Ø6.3 x 1.3″) |
| Weight | Without mount: 338 g (0.75 lb) With mount: 413 g (0.91 lb) |
| Enclosure materials | Polycarbonate, aluminum |
| Mount materials | ABS, SGCC steel |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Management interface | Ethernet |
| Power method | PoE |
| Supported voltage range | 44–57V DC |
| Max. power consumption | 9W |
| Max. TX power 2.4 GHz 5 GHz |
23 dBm 23 dBm |
| MIMO 2.4 GHz 5 GHz |
2 x 2 2 x 2 |
| Throughput rate 2.4 GHz 5 GHz |
573.5 Mbps 2402 Mbps |
| Antenna gain 2.4 GHz 5 GHz |
3dBi 5.4 dBi |
| Button | Factory reset |
| LEDs | White/blue |
| Operating temperature | -30 to 60° C (-22 to 140° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g WiFi 4/WiFi 5/WiFi 6 |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Zero-wait DFS | Yes* *Supported with upcoming firmware versions. |
| Concurrent clients | 300+ |
| Software | |
| Management application | UniFi Network: Version 7.3.76 and later |
