Product overview

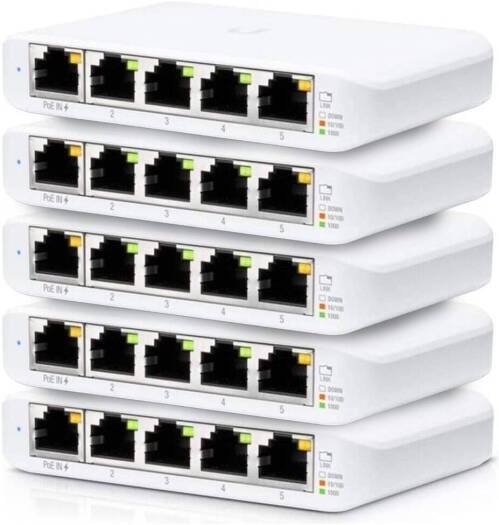

Ubiquiti Networks UniFi USW Flex Mini 5-Port Gigabit Managed Switch for connecting network devices.
Configuration and features: with USB-C Power Adapter; 10 Gb/s Switching Capacity; 7.44 Mpps Fwd Rate; Pack of 5; White.
Product details: pack quantity: 5 pieces; dimensions: 107 x 70 x 21 mm (4.2 x 2.8 x 0.8"); weight: 150 g (5.3 oz); enclosure material: Polycarbonate.
Specifications
| Brand | Ubiquiti |
|---|---|
| Product reference | USW-Flex-Mini-5 |
| Product type | network switch |
| Dimensions | 107 x 70 x 21 mm (4.2 x 2.8 x 0.8") |
| Weight | 150 g (5.3 oz) |
| Enclosure material | Polycarbonate |
| Management interface | Ethernet In-Band |
| Networking interface | (5) GbE RJ45 ports |
| Total non-blocking throughput | 5 Gbps |
| Switching capacity | 10 Gbps |
| Forwarding rate | 7.44 Mpps |
| Power method | (1) USB Type C, 5V (1) PoE/PoE+, 44—57V DC, 0.05—0.04A |
| Power supply | 5V, 1A power adapter* *Only single-unit packages include the 5V, 1A USB-C power adapter |
| Supported voltage range | USB Type C: 4.7—5.3V DC PoE/PoE+: 44—57V DC |
| Max. power consumption | 2.5W |
| Esd/emp protection | Air: ± 16kV, contact: ± 12kV |
| Button | Factory reset |
| Operating temperature | -5 to 45° C (23 to 113° F) |
| Operating humidity | 10 to 90% noncondensing |
| System | Status |
| Ethernet | Speed/link/activity |
| Unifi network | Version 5.12.5 and later |
| Usb type c | 4.7—5.3V DC |
| Poe/poe+ | 44—57V DC |
| Air | ± 16kV, contact: ± 12kV |
| Pack quantity | 5 pieces |
| Title configuration | with USB-C Power Adapter; 10 Gb/s Switching Capacity; 7.44 Mpps Fwd Rate; Pack of 5; White |
Choosing this product
Compare port speeds and uplink types. For PoE devices, check both the per-port limit and the total power budget against the connected equipment.
