Product overview

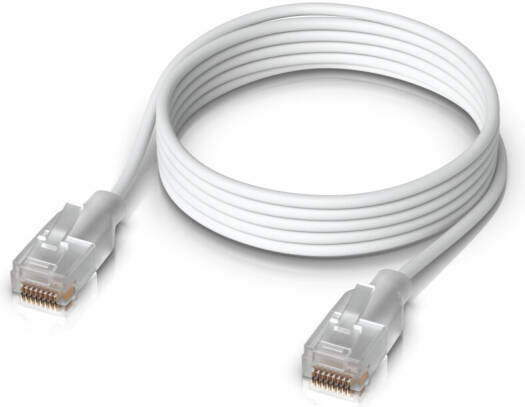

Ubiquiti UniFi Etherlighting Patch Cable for connecting compatible equipment.
Features: Translucent booted RJ45 for optimal Etherlighting™ brightness.
Configuration and features: 10G Supported Data Rate; 2x Translucent Booted RJ45; UTP Shielding Type; 1m Cable Length; White.
Product details: connector: (2) Translucent booted RJ45; available lengths: 0.3m; available colors: White; supported data rate: 10G.
Specifications
| Brand | Ubiquiti |
|---|---|
| Product reference | UACC-Cable-Patch-EL-1M-W |
| Product type | cable |
| Available lengths | 0.3m |
| Available colors | White |
| Supported data rate | 10G |
| Supported poe type | Up to PoE+++ |
| Connector | (2) Translucent booted RJ45 |
| Operating environment | Indoor |
| Jacket diameter | 0.15–8 m: 2.5 mm (0.1"); 12–15 m: 2.9 mm (0.11") |
| Jacket material | Thermoplastic elastomer (TPE) |
| Shielding type | UTP |
| Conductor type | Stranded copper |
| Conductor wire gauge | 1–8 m: 34 AWG; 12–15 m: 32 AWG |
| Bend radius | 1–8 m: ≥21 mm (0.83"); 12–15 m: ≥24 mm (0.94") |
| Flame rating | VW-1 (UL1581) |
| Standards | TIA/EIA-568-B.2, ISO/IEC 11801 |
| Installation temperature | -20°C to 60°C (-4 to 140°F) |
| Storage temperature | -20°C to 75°C (-4 to 167°F) |
| Operating temperature | -20°C to 60°C (-4 to 140°F) |
| Title configuration | 10G Supported Data Rate; 2x Translucent Booted RJ45; UTP Shielding Type; 1m Cable Length; White |
| Listed features | Translucent booted RJ45 for optimal Etherlighting™ brightness |
Choosing this product
Check both connector ends and the cable length. Supported data rate, charging power and video features depend on the exact cable and connected devices.
