sCS60
Ultra-versatile with a first-of-its-kind convertible design
Do you need a cordless scanner for inventory in the store aisles and a corded hands-free scanner at checkout? What if you didn’t have to deploy different scanners for different tasks? Introducing the CS60 Series Companion Scanner, featuring a groundbreaking design that easily converts between corded and cordless operation, handheld and hands-free, as your needs change. As a cordless scanner, the CS60 is small enough to tuck in a pocket and offers the latest mobile technology including contactless charging. As a corded scanner, the CS60 offers compact scanning for the checkout counter, self-service kiosk and more. Whether you purchase a corded or cordless model up front, you can change modes at any time for superior investment protection. And you get Zebra’s industry-leading scanning performance and our unique DataCapture DNATM industry-preferred management tools that make it easier than ever to integrate, deploy and manage your scanners.
Specifications
| Scanning | |
| Type | Handheld bar code reader |
| Scanner Type | 1D/2D |
| Sensor Type | LED |
| Linear (1D) Barcodes Supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, Plessey, U.P.C. |
| 2D (Matrix & Stacked) Barcodes Supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Optical Sensor Resolution (W x H) | 1280 x 960 pixels |
| Light Levels (Direct Sunlight) | 0 – 108,000 lx |
| Wavelength | 525 nm |
| Tilt Reading Angle | -60 – 60° |
| Pitch Reading Angle | -60 – 60° |
| Yaw Reading Angle | 0 – 360° |
| Ports & Interfaces | |
| Connectivity Technology | Wireless |
| Standard Interfaces | Bluetooth, USB |
| Wireless Range | 100 m |
| Bluetooth Version | 5.0 |
| Bluetooth Low Energy (BLE) | Yes |
| Performance | |
| International Protection (IP) Code | IP65 |
| LED Indicators | Yes |
| Product Colour | Black |
| Power | |
| Power Source Type | AC, Battery, DC, USB |
| Battery Technology | Lithium Polymer (LiPo) |
| Battery Type | Built-in battery |
| Battery Capacity | 735 mAh |
| Number of Reads per Charge | 13,000 |
| Battery Life | 18 h |
| Charging Time | 6 h |
| Power Consumption | 400 mA |
| Weight & Dimensions | |
| Width | 46 mm |
| Depth | 109 mm |
| Height | 23 mm |
| Weight | 83 g |
| Operational Conditions | |
| Operating Temperature (T-T) | 0 – 50 °C |
| Storage Temperature (T-T) | -40 – 70 °C |
| Operating Relative Humidity (H-H) | 5 – 95% |
| Storage Relative Humidity (H-H) | 5 – 95% |
| Technical Details | |
| Compliance Certificates | RoHS |
Additional Information
Shipping & Return
Related products

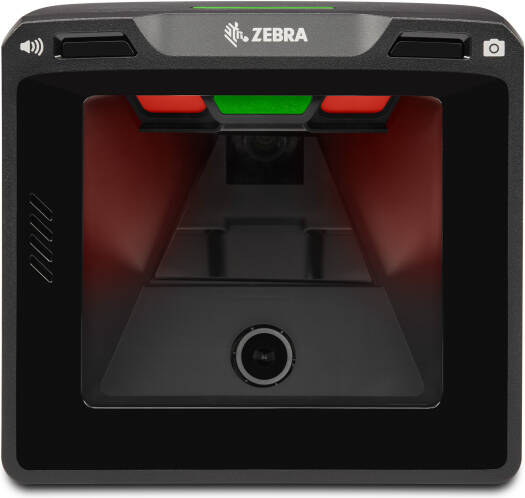

Zebra SP72-V On-Counter Vertical Scanner, 1D & 2D Scanner Type, 660 nm Wavelength, 1920 x 1200 pixels Sensor Resolution, IP52 Rated Protection, Black | SP7201-SV00004ZCWW
