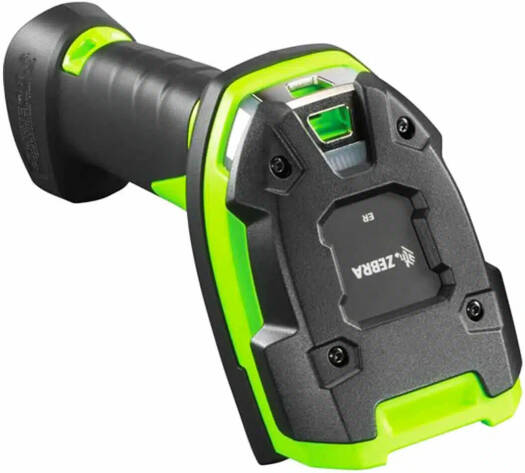

DS3608-HP
The Zebra DS3608-HP ultra-rugged scanner enables capture of any 1D and 2D barcode in virtually any condition up to 7 ft./2.1 m away, plus OCR and intelligent document capture.
Specifications
| Scanning | |
| Type | Handheld bar code reader |
| Optical Sensor Resolution | 1280 pixels |
| Scanner Type | 1D/2D |
| Sensor Type | Laser |
| Linear (1D) Barcodes Supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. |
| 2D (Matrix & Stacked) Barcodes Supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Wavelength | 655 nm |
| Tilt Reading Angle | -65° to 65° |
| Pitch Reading Angle | -65° to 65° |
| Yaw Reading Angle | -45° to 45° |
| Ports & Interfaces | |
| Connectivity Technology | Wired |
| Standard Interfaces | RS-232, USB, Keyboard wedge |
| Performance | |
| International Protection (IP) Code | IP67 |
| Protection Features | Dust resistant, Shock resistant, Water resistant |
| LED Indicators | Yes |
| Product Colour | Black, Green |
| Performance | Programming function |
| Power | |
| Power Source Type | Battery |
| Battery Technology | Lithium-Ion (Li-Ion) |
| Battery Capacity | 3100 mAh |
| Number of Reads per Charge | 70,000 |
| Weight & Dimensions | |
| Width | 132 mm |
| Depth | 76 mm |
| Height | 185 mm |
| Weight | 309 g |
| Operational Conditions | |
| Operating Temperature (T-T) | -30°C to 50°C |
| Storage Temperature (T-T) | -40°C to 70°C |
| Operating Relative Humidity (H-H) | 5% – 95% |
| Technical Details | |
| Compliance Certificates | RoHS |
