Product overview

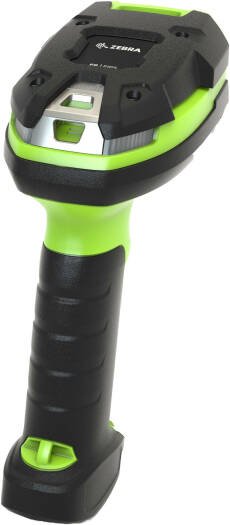

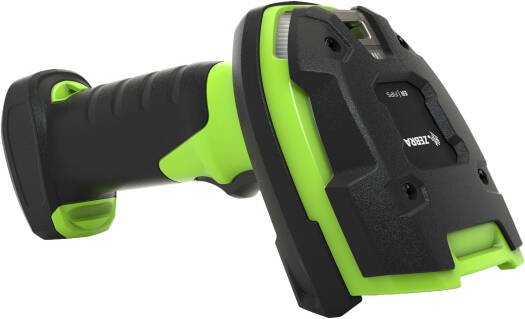

Zebra LI3608-SR Barcode Scanner for capturing the stated document or barcode data.
Configuration and features: 1D Scanner Capability; 1500 pixels Optical Sensor Resolution; CCD; Imager; LED Beam Laser Type; Wired Connectivity; Green / Black.
Product details: colour: Industrial Green; dimensions: Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D (18.5 cm H x 7.6 cm W x 13.2 cm D); weight: Corded: 10.1 oz./287 g; input voltage range: Host powered: 4.5 VDC min., 5.5 VDC max. External power supply: 11.4 VDC min., 12.6 VDC max.
Specifications
| Brand | ZEBRA |
|---|---|
| Product reference | LI3608-SR3U4600VZW |
| Product type | scanner |
| Dimensions | Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D (18.5 cm H x 7.6 cm W x 13.2 cm D) |
| Weight | Corded: 10.1 oz./287 g |
| Input voltage range | Host powered: 4.5 VDC min., 5.5 VDC max. External power supply: 11.4 VDC min., 12.6 VDC max |
| Operating current | LI3608 (corded): 170 mA (RMS typical) |
| Standby current | LI3608 (corded): 40 mA (RMS typical) |
| Colour | Industrial Green |
| Supported host interfaces | USB, RS232, Keyboard Wedge Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP and Std TCP/IP |
| Battery | PowerPrecision+ 3100 mAh Li-Ion rechargeable battery |
| Scans per full charge | 140,000+ |
| Illumination | Two (2) 617nm Amber LEDs |
| Aimer | 655 nm laser |
| Imager field of view | 35° |
| Image sensor | 1,500 pixels |
| Minimum print contrast | 15% minimum reflective difference |
| Skew/pitch/roll | Skew: ± 65° Pitch: ± 65° Roll: ± 45° |
| Operating temp. | Corded: -22° F to 122° F (-30° C to 50° C) |
| Storage temp. | -40° F to 158° F (-40° C to 70° C) |
| Humidity | 5% to 95% non-condensing |
| Drop specification | LI3608: Withstands multiple 8.0 ft/2.4 m drops at -30° C to 50° C |
| Tumble specification | 7500 3.3 ft./1.0 m tumbles |
| Sealing | Scanner: IP65 and IP68 per applicable IEC sealing specifications FLB cradle: IP65 |
| Esd | Per EN61000-4-2, ±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge |
| Ambient light immunity | 0 to 10,037 Foot Candles/0 to 108,000 Lux (direct sunlight) |
| Utilities and maintenance | 123Scan, Scanner SDK, Scanner Management Service (SMS), Network Connect |
| Bluetooth radio | Bluetooth Class 1, Version 4.0 (LE), serial port (SPP) and HID profiles |
| Data rate | 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth 1 Mbit/s (0.27 Mbit/s) for Low Energy |
| Radio range | Direct line of sight in open air: Class 1: Minimum 300 ft. (100.0 m) Class 2: Minimum 30 ft. (10.0 m) |
| Host powered | 4.5 VDC min., 5.5 VDC max |
| External power supply | 11.4 VDC min., 12.6 VDC max |
| Industrial ethernet | EtherNet/IP, Profinet, Modbus TCP and Std TCP/IP |
| Skew | ± 65° |
| Pitch | ± 65° |
| Roll | ± 45° |
| Li3608 | Withstands multiple 8.0 ft/2.4 m drops at -30° C to 50° C |
| Scanner | IP65 and IP68 per applicable IEC sealing specifications |
| Flb cradle | IP65 |
| Class 1 | Minimum 300 ft. (100.0 m) |
| Class 2 | Minimum 30 ft. (10.0 m) |
| Electrical safety | EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013 |
| Led safety | IEC 62471: 2006 (Ed.1.0); EN 62471: 2008 (LED) |
| Emi/rfi | EN 55022: 2010/AC: 2011 (Class B); EN 55024: 2010; EN 61000-6-2: 2005/AC:2005; EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B); EN 61000-3-3: 2013; EN 60601-1-2: 2007/AC: 2010 |
| Title configuration | 1D Scanner Capability; 1500 pixels Optical Sensor Resolution; CCD; Imager; LED Beam Laser Type; Wired Connectivity; Green / Black |
Choosing this product
Check the supported document or code types, connection and software compatibility. Confirm whether a stand, cable or receiver is included.
