Description
Description
Product overview

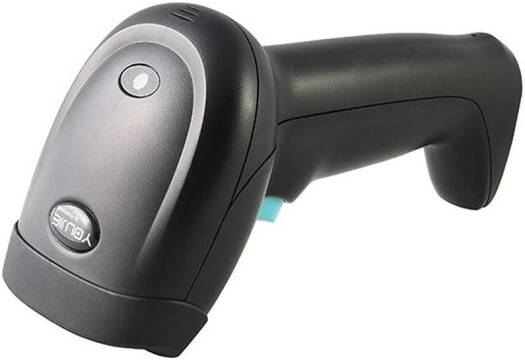

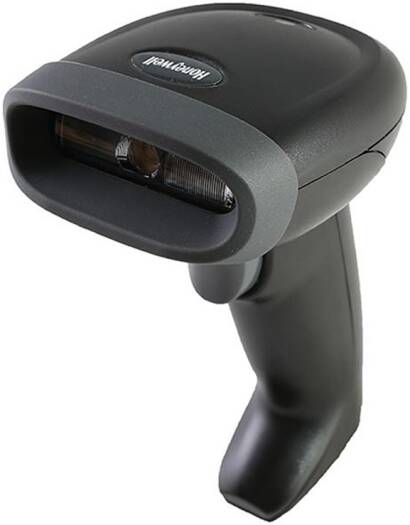

Honeywell Youjie HH360 Linear-Imaging Scanner for capturing the stated document or barcode data.
Configuration and features: Single Line Scan Pattern; 300 SPS Scan Speed; USB; RS232 & KBW Interfaces; 1D & GS1 DataBar Symbologies; Black.
Product details: dimensions (l x w x h): 98mm x 126mm x 155mm; weight: 140g; input voltage: 5 ± 0.5VDC; operating power: 900mW, 180mA (Typical) @5VDC.
Specifications
| Product reference | YJ-HH360-R-2USB-1 |
|---|---|
| Product type | scanner |
| Dimensions (l x w x h) | 98mm x 126mm x 155mm |
| Weight | 140g |
| Input voltage | 5 ± 0.5VDC |
| Operating power | 900mW, 180mA (Typical) @5VDC |
| Standby power | 500mW, 100mA (Typical) @5VDC |
| Interface | USB, RS232, KBW |
| Operating temperature | 0°C to 50°C |
| Storage temperature | -40°C to 60°C |
| Humidity | 95% |
| Drop | 1-1.5m at random |
| Environmental sealing | IP40 |
| Light levels | 0 to 70,000 LUX |
| Scan pattern | Single line |
| Scan speed | 300 scans/s |
| Print contrast | 20% |
| Pitch, skew | 65°, 75° |
| Minimum width | 3 mil |
| Decode capabilities | Reads all standard 1D and GS1 DataBar symbologies |
| Title configuration | Single Line Scan Pattern; 300 SPS Scan Speed; USB; RS232 & KBW Interfaces; 1D & GS1 DataBar Symbologies; Black |
Choosing this product
Check the supported document or code types, connection and software compatibility. Confirm whether a stand, cable or receiver is included.
