SRP-B300

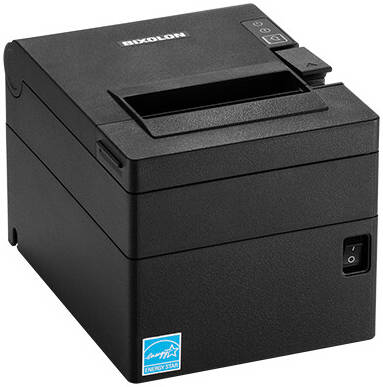

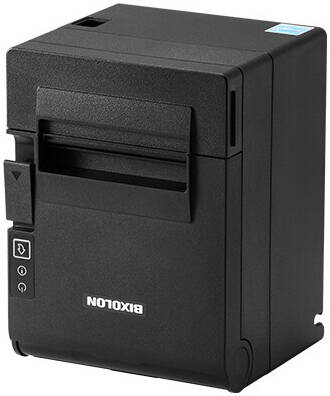

A 3″ compact direct thermal POS printer, providing a huge range of printing services despite its modest size. Printing at speeds of 200mm/s with a 203 dpi resolution printing high-quality text, graphics, and 1D/2D barcodes. The SRP-B300 provides energy cost-efficient printing, earning it the EnergyStar Certification. SRP-B300 series printers have been designed to be connected to various types of electronic devices and computer peripheral devices.
Specifications
| Print Characteristics | |
| Print Method | Direct Thermal |
| Print Speed | 200 mm/sec |
| Print Resolution | 203 dpi |
| Print Width | 72 mm |
| Sensor | Paper End |
| Media Characteristics | |
| Media Type | Receipt |
| Media Width | 80 mm |
| Media Roll Diameter | Up to 83 mm |
| Media Thickness | 0.05 ~ 0.08 mm |
| Supply Method | Easy Paper Loading |
| Physical Characteristics | |
| Dimensions (W x D x H) | 132 x 178.4 x 124.7 mm (5.19 x 7.02 x 4.90 inch) |
| Weight | 1.01 kg (2.23 lbs) |
| Electrical | |
| EnergyStar Certified | Yes |
| External Power Adaptor | 100-240V AC, 50/60Hz |
| Drawer Port | 2 ports (via y-type adaptor) |
| Performance Characteristics | |
| NV Image Memory | 768 Kbytes (mono) |
| Receive Buffer | 4 Kbytes |
| User Define Buffer | 12 Kbytes |
| Interface | USB V2.0 FS + Ethernet + Serial |
| Environment Characteristics | |
| Temperature | Operating: 0 ~ 40℃ (32 ~ 104℉); Storage: -20 ~ 60℃ (-4 ~ 140℉) |
| Humidity | Operating: 10 ~ 80% RH; Storage: 10 ~ 90% RH |
| Software | |
| Emulation | BXL / POS |
| Driver / Utility | Windows Driver, OPOS / JPOS Driver, Linux / Mac CUPS Driver, Virtual COM USB Driver |
| Utility Program | SDK / Plugin |
| SDK / Plugin | Android / iOS / Windows SDK, Linux SDK, Xamarin SDK, Chrome SDK, Cordova Plugin |
| Application | mPrint App (Android, iOS) |
| Fonts / Graphics / Symbologies | |
| Character Size | Font A: 12 x 24; Font B: 9 x 17; Font C: 9 x 24; KOR, CHN, JPN: 24 x 24 |
| Characters Per Line | Font A: 48; Font B, C: 64; KOR, CHN, JPN: 24 |
| Character Sets | Alphanumeric: 95; Extended Graphics: 128 x 35 page; International: 32 |
| Graphics | Supporting user-defined fonts, graphics, formats and logos |
| Barcode Symbologies | 1D: Coda Bar, Code39, Code93, Code128, EAN-8, EAN-13, ITF, UPC-A, UPC-E; 2D: Data Matrix, PDF417, QR Code |
