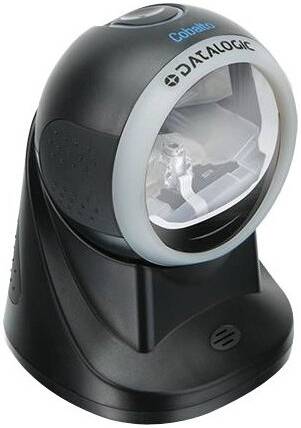

Cobalto CO5330
The new Cobalto CO5300 omnidirectional presentation laser scanner guarantees an excellent value for customers looking for outstanding performance in a stylish and full-featured product.
An elegant blue ‘Ring of Light’ encircles the reading window, which turns a bright green to visually confirm a good read. Additionally, a high quality polyphonic speaker can be configured to provide the preferred sound or ‘jingle’ for audio confirmations of a good read.
The omnidirectional reading pattern of 20 lines and 1,500 scans per second provides the market’s fastest 1D decoding rate and motion tolerance, key features in applications that require immediate and intuitive reading.
Specifications
| Decoding Capability | |
| 1D / Linear Codes | Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes. |
| Stacked Codes | GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional |
| Electrical | |
| Current | Operating (Maximum): < 500 mA @ 5 VDC; Operating (Typical): < 430 mA @ 5 VDC; Sleep Mode: < 2.5 mA |
| Input Voltage | 5 VDC +/- 5% |
| Environmental | |
| Ambient Light | 0 – 86,000 lux |
| Drop Resistance | Withstands repeated drops from 1.2 m / 4.0 ft onto a concrete surface |
| ESD Protection (Air Discharge) | 16 kV |
| Humidity (Non-Condensing) | 5 – 90% |
| Particulate and Water Sealing | IP30 |
| Temperature | Operating: 0 to 40 °C / 32 to 104 °F; Storage/Transport: -40 to 70 °C / -40 to 158 °F |
| Interfaces | |
| Interfaces | Keyboard Wedge; OEM (IBM) USB; RS-232; USB |
| Optional Features | |
| EAS Features | Checkpoint® Systems |
| Physical Characteristics | |
| Colors Available | Black |
| Dimensions | 9.9 x 11.0 x 15.0 cm / 3.9 x 4.3 x 5.9 in |
| Weight | 440 g / 15.5 oz |
| Reading Performance | |
| Light Source | 650 nm VLD |
| Motion Tolerance | > 4 m / sec. on 100% EAN13 @ 10 cm / 3.9 in from nose |
| Print Contrast Ratio (Minimum) | 35% |
| Read Rate (Maximum) | 1,500 lines / sec. |
| Reading Indicators | Beepers, Polyphonic; Good Read LED |
| Resolution (Maximum) | 0.130 mm / 5 mils |
| Scan Lines | 20 |
| Reading Ranges | |
| Typical Depth of Field | Minimum distance determined by symbol length and scan angle. |
| Code 39 5 mils: 0.5 to 5.5 cm / 0.2 to 2.2 in | |
| EAN / UPCA 13 mils: 0 to 27.5 cm / 0 to 10.8 in | |
| Safety & Regulatory | |
| Agency Approvals | Meets necessary safety and regulatory approvals for intended use. |
| Environmental Compliance | Complies to China RoHS; Complies to EU RoHS |
| Laser Classification | Caution Laser Radiation – Do not stare into beam; EN 60825-1 Class 1 |
| LED Classification | IEC 62471 Exempt Class |
| Utilities | |
| Datalogic Aladdin™ | Configuration program available for download at no charge. |
| OPOS / JavaPOS | OPOS and JavaPOS Utilities available for download at no charge. |
| Remote Host Download | Lowers service costs and improves operations. |
