Product overview

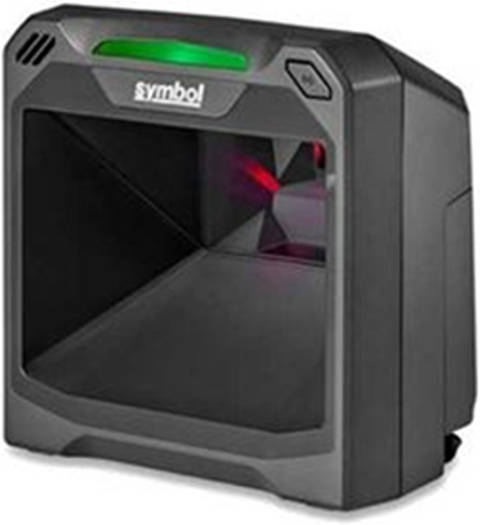

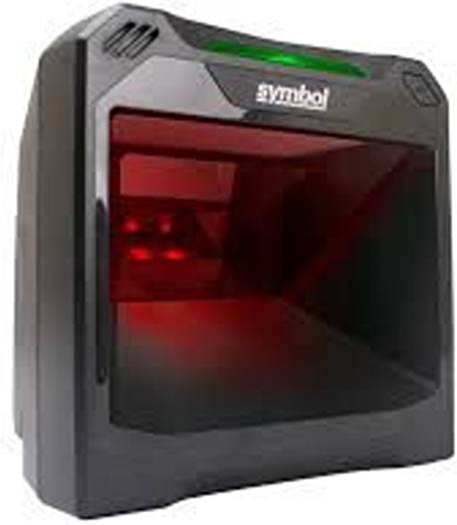

Zebra Symbol DS7708 Desktop Laser Barcode Reader for capturing the stated document or barcode data.
Configuration and features: Up to 100 in./2.5 m Per Second; 2D Imaging; PRZM Intelligent Imaging Technology; 5 V DC; Black.
Product details: colour: Midnight Black; dimensions (scanner only): 5.63 in. H x 5.86 in. W x 3.81 in. D / 14.3 cm H x 14.9 cm W x 9.7 cm D; weight: 17.6 oz. / 500 g; supported host interfaces: USB, RS-232, Keyboard Wedge, TGCS (IBM) 46XX over RS485.
Specifications
| Product reference | DS7708-SR4U2100ZCW |
|---|---|
| Product type | scanner |
| Dimensions (scanner only) | 5.63 in. H x 5.86 in. W x 3.81 in. D / 14.3 cm H x 14.9 cm W x 9.7 cm D |
| Weight | 17.6 oz. / 500 g |
| Voltage and current | Without auxiliary scanner: 5 VDC +/-10% @ 125ma avg. (Standby) / 5 VDC +/-10% @ 480ma avg. (Operating) With auxiliary scanner: 12 VDC +/-10% @ 100ma avg. (Standby) / 12 VDC +/-10% @ 400ma avg. (Operating) |
| Colour | Midnight Black |
| Supported host interfaces | USB, RS-232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| Keyboard support | Supports over 90 international keyboards |
| Auxiliary scanner interface | USB |
| Electronic article surveillance | Compatible with Checkpoint EAS deactivation systems |
| Swipe speed | Up to 100 in./sec. (254 cm/sec.) |
| Light source | Two deep red LEDs (660nm) |
| Imager field of view | 48.0° x 36.7° (bar-code reading) / 48.0° x 33.7° (image capture) |
| Image sensor | 1280 x 960 (bar-code reading) / 1280 x 880 (image capture) |
| Minimum print contrast | 25% minimum reflective difference |
| Roll / pitch / yaw (skew) | 360˚, ±70˚, ±70˚ typical |
| Operating temperature | 32˚ to 104˚ F / 0˚ to 40˚ C |
| Storage temperature | -40˚ to 158˚ F / -40˚ to 70˚ C |
| Humidity | 5% to 85% RH, non-condensing |
| Environmental sealing | IP52 |
| Electrostatic discharge (esd) | ESD per EN61000-4-2; +/- 25 KV Air Direct; +/- 8 KV Indirect (without auxiliary scanner) |
| Ambient light range | From darkness (0 fcd) to 450 fcd artificial light and 10,000 fcd direct sunlight |
| Symbology decode capability | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma), PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes |
| Minimal element resolution | Code 39 – 3 mil, UPC – 7.8 mil, PDF417 – 4 mil, Datamatrix – 7.5 mil, QR Code – 7.5 mil |
| Decode ranges (typical) | Code 39 – 5 mil: 0 – 7.2 in. (0 – 18.3 cm) UPC/EAN – 10 mil (80%): 0 – 10.0 in. (0 – 25.4 cm) UPC/EAN – 13 mil (100%): 0 – 10.3 in. (0 – 26.1 cm) PDF417 – 5 mil: 0 – 3.5 in. (0 – 8.9 cm) Datamatrix – 10 mil: 0 – 5.0 in. (0 – 12.7 cm) QR Code – 10 mil: 0 – 4.9 in. (0 – 12.4 cm) |
| Without auxiliary scanner | 5 VDC +/-10% @ 125ma avg. (Standby) / 5 VDC +/-10% @ 480ma avg. (Operating) |
| With auxiliary scanner | 12 VDC +/-10% @ 100ma avg. (Standby) / 12 VDC +/-10% @ 400ma avg. (Operating) |
| Code 39 – 5 mil | 0 – 7.2 in. (0 – 18.3 cm) |
| Pdf417 – 5 mil | 0 – 3.5 in. (0 – 8.9 cm) |
| Datamatrix – 10 mil | 0 – 5.0 in. (0 – 12.7 cm) |
| Qr code – 10 mil | 0 – 4.9 in. (0 – 12.4 cm) |
| Title configuration | Up to 100 in./2.5 m Per Second; 2D Imaging; PRZM Intelligent Imaging Technology; 5 V DC; Black |
Choosing this product
Check the supported document or code types, connection and software compatibility. Confirm whether a stand, cable or receiver is included.
