Gryphon GD4520
Use a premium handheld scanner for all your value-added applications

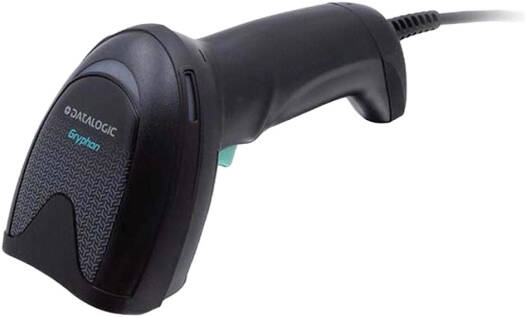

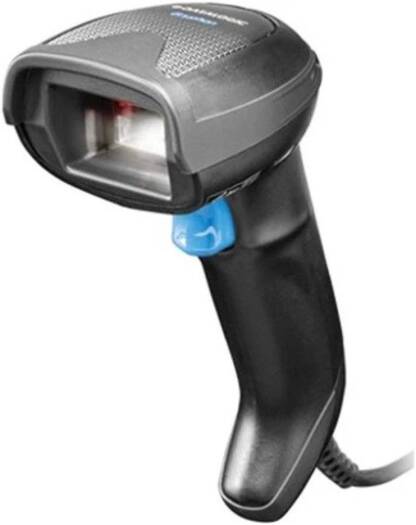

The Gryphon 4500 imager is an extremely powerful and beautifully designed handheld scanner that perfectly fits your grip. Its balanced, ergonomic shape reduces operator fatigue ensuring he/she continues to use it throughout the day effortlessly. Housed in the body is a rich feature set and high-performance megapixel sensor for outstanding reading results. Even during operation, the distinctive warm white illumination and use of Motionix motion sensing technology make this a very intuitive and easy to use scanner. What’s more is that the scanner is available in both wired and wireless versions. The wireless version offers battery inductive charging without the need for physical contacts. An easier to use, lower maintenance version of an already highly desirable scanner. Used in retail, healthcare, manufacturing, and commercial services. The Gryphon 4500 imager is power in your hands.
Specifications
| Scanning | |
| Type | Handheld bar code reader |
| Scanner Type | 1D/2D |
| Linear (1D) Barcodes Supported | Code 39, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, PDF417, Planet, POSTNET, U.P.C. |
| 2D (Matrix & Stacked) Barcodes Supported | Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Optical Sensor Resolution (W x H) | 1280 x 800 pixels |
| Light Levels (Direct Sunlight) | 0 – 100,000 lx |
| Wavelength | 650 nm |
| Tilt Reading Angle | 0 – 360° |
| Pitch Reading Angle | -65 – 65° |
| Yaw Reading Angle | -65 – 65° |
| Motion Tolerance (cm/s) | 88.9 |
| Ports & Interfaces | |
| Connectivity Technology | Wired |
| Standard Interfaces | USB |
| Performance | |
| International Protection (IP) Code | IP52 |
| Protection Features | Shock resistant |
| Built-in Display | No |
| Image Formats Supported | BMP, JPEG |
| Product Colour | Black |
| Certification | IEC 60825 Class 2 |
| Power | |
| Power Source Type | DC |
| Input Voltage | 5 V |
| Power Consumption | 300 mA |
| Weight & Dimensions | |
| Width | 68 mm |
| Depth | 109 mm |
| Height | 166 mm |
| Weight | 161 g |
| Packaging Data | |
| Cables Included | USB |
| Charging Base | Yes |
| Operational Conditions | |
| Operating Temperature (T-T) | 0 – 40 °C |
| Storage Temperature (T-T) | -40 – 70 °C |
| Operating Relative Humidity (H-H) | 0 – 95% |
| Technical Details | |
| Compliance Certificates | RoHS |
