Product overview

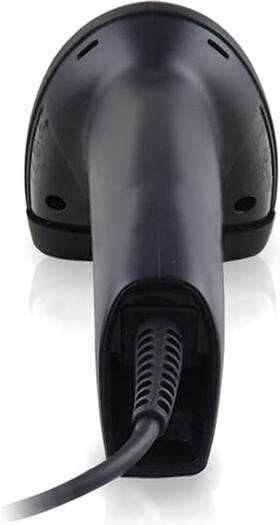

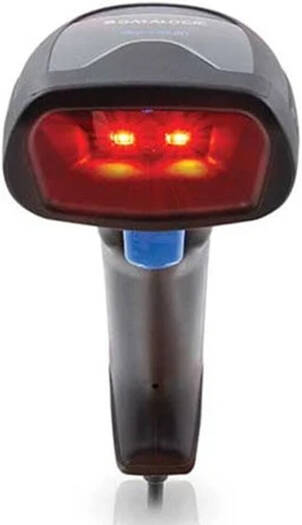

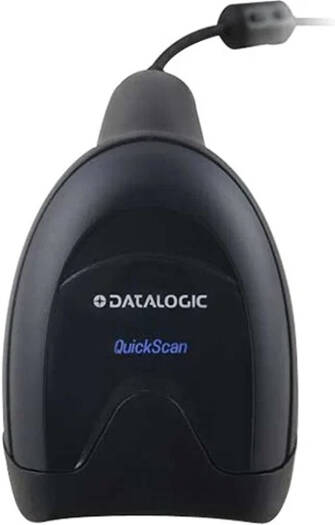

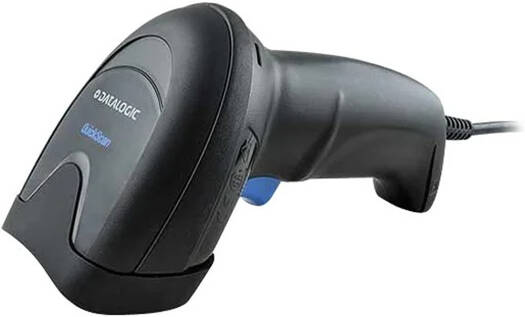

Datalogic QW2520 Wired Barcode Scanner for capturing the stated document or barcode data.
Configuration and features: 1D & 2D Scanning Capabilities; Imager Sensor Type; Omni-directional Scan Pattern; 110k lux Max Ambient Light; Black.
Product details: connectivity technology: Cable; scanning capability: 1D, 2D; barcode symbology supported: 1D: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes; image sensor type: Imager.
Specifications
| Brand | Datalogic |
|---|---|
| Product reference | QW2520-BKK1S |
| Product type | scanner |
| Connectivity technology | Cable |
| Scanning capability | 1D, 2D |
| Barcode symbology supported | 1D: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes |
| Image sensor type | Imager |
| Scan pattern | Omni-directional |
| Scanning distance | 20.10" |
| Cable type included | USB |

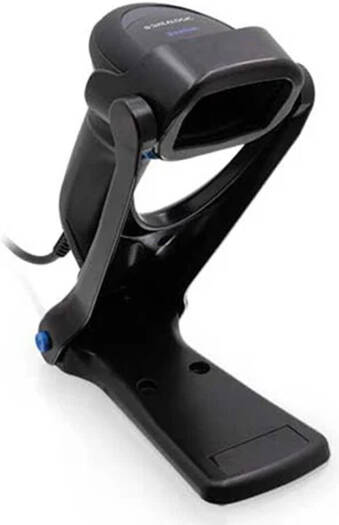

| Stand included | Yes |
| Reading angle (skew) | 65° |
| Reading angle (pitch) | 65° |
| Reading angle (roll) | 360° |
| Motion tolerance | 30 in/s |
| Image formats | JPEG, BMP, TIFF |
| Maximum ambient light | 110000 lux |
| Drop specification | Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface |
| Minimum print contrast | 15% |
| Minimum element resolution (code 39) | 5 mil |
| Maximum element resolution (code 39) | 10 mil |
| Maximum element resolution (datamatrix) | 10 mil |
| Maximum element resolution (pdf417) | 6.7 mil |
| Host interface | USB, Serial, Keyboard Wedge |
| Product color | Black |
| Weight (approximate) | 5.11 oz |
| Ingress protection (ip) rating | IP52 |
| Application/usage | Retail, Commercial Service, Hospitality, Ticketing, Government, Healthcare, Light/Clean Manufacturing, Industrial |
| Postal codes | Australian Post, British Post, China Post, IMB, Japanese Post, KIX Post, Planet Code, Postnet, Royal Mail Code (RM4SCC) |
| Stacked codes | EAN/JAN Composites, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites |
| Digital watermarking | Digimarc Barcodes (QD2500, QM2500, QBT2500 only) |
| Title configuration | 1D & 2D Scanning Capabilities; Imager Sensor Type; Omni-directional Scan Pattern; 110k lux Max Ambient Light; Black |
Choosing this product
Check the supported document or code types, connection and software compatibility. Confirm whether a stand, cable or receiver is included.
