Description for Omada ES206GP 6-Port Gigabit Easy Managed Switch, 4-Port PoE+, 65W Power, Centralized Cloud Management, Up to 250m PoE, Automatic Loop Prevention, Black | ES206GP

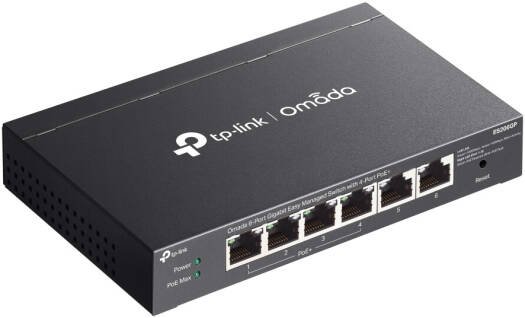

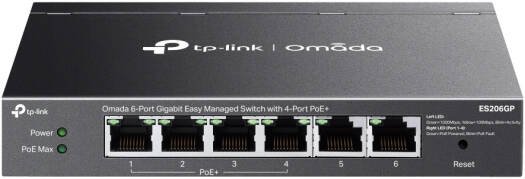

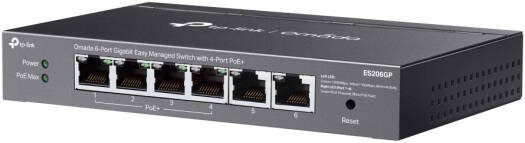

ES206GP 6-Port Gigabit Easy Managed Switch
Specification
| Interface | • 6× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3af PoE and 802.3at PoE+) • Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |

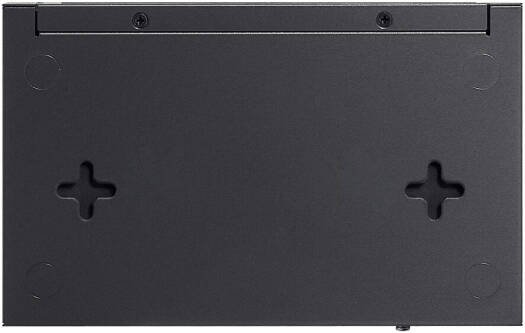

| Installation | • Desktop • Wall Mount |
| Physical Security Lock | √ |
| Power Supply | DC Power Adapter (Output: 53.5VDC / 1.31A) |
| PoE Ports (RJ45) | • Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 4 ports • PoE Budget: 65W available for all PoE+ ports, 30W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery‡ • Up to 250m PoE transmission distance** |
| Dimensions (W × D × H) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
| Surge Protection | ±6kV |
| Performance | Switching Capacity: 12 Gbps
Packet Forwarding Rate: 7.4 Mpps MAC Address Table: 8K Packet Buffer Memory: 4 Mbit Jumbo Frame: 15 KB |
| Software Features – Quality of Service | • Port-based/802.1p/DSCP QoS
• 8 Priority Queues • Priority Schedule Mode – WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control – Port-Based Rating Limit • Storm Control – Multiple Control Modes (kbps/pps) – Broadcast/Multicast/Unknown-Unicast Control△ |
| Software Features – L2 Features | • Static Link Aggregation
• Loop Prevention / Loopback Detection • Flow Control – 802.3x Flow Control • Mirroring – Port Mirroring, One-to-One, Many-to-One, Ingress/Egress/Both • Port Statistics – Port Mirror Status, Traffic Statistics • 802.1ab LLDP |
| Software Features – L2 Multicast | • IGMP Snooping – IGMP v1/v2/v3 Snooping
• Fast Leave |
| Software Features – VLAN | • MTU VLAN
• Port-Based VLAN • 802.1Q Tag VLAN – Max 32 VLAN Groups, 4K VID |
| Transmission Method | Store-and-Forward |
| Management – Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Management – Centralized Management | • Omada Cloud-Based Controller
• Omada Hardware Controller • Omada Software Controller |
| Management – Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Management – Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management – Features | • Web-based GUI
• DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† |
