Product overview

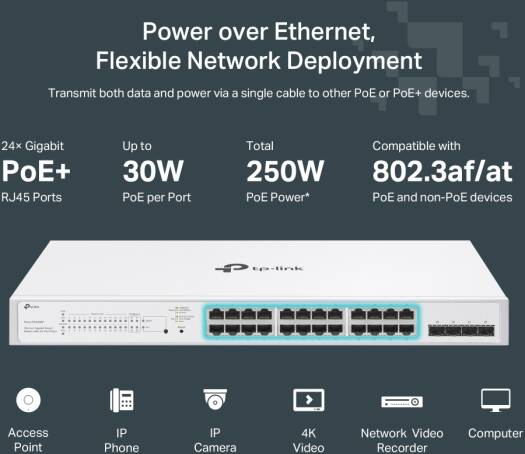

Tp-Link Festa 28-Port Gigabit Smart Switch with 24-Port PoE+ for connecting network devices.
Features: 24× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX); 16 IPv4/IPv6 Interfaces; 32 IPv4/IPv6 Static Routes; DHCP Server, Relay, L2 Relay; Port & VLAN Binding IPv6 Support Yes Link Aggregation Supported Management Centralized Management; Festa FS328GP.
Configuration and features: 4 SFP Slots; L2+/L3 Features; Free Cloud Management; Rackmount Design; White.
Product details: interface: 24× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 4× Gigabit SFP Slots; fan quantity: 2; physical security lock: Yes; power supply: 100–240V AC, 50/60Hz.
Specifications
| Brand | TP-Link |
|---|---|
| Product reference | FS328GP |
| Product type | network switch |
| Interface | 24× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 4× Gigabit SFP Slots |
| Fan quantity | 2 |
| Physical security lock | Yes |
| Power supply | 100–240V AC, 50/60Hz |
| Poe standards | 802.3af (PoE), 802.3at (PoE+) |
| Poe ports | 24 PoE+ Ports |
| Poe budget | 250 W (max 30 W per port) |
| Dimensions (w×d×h) | 440 × 220 × 44 mm (17.3 × 8.7 × 1.73 in) |
| Mounting | Rack Mountable |
| Switching capacity | 56 Gbps |
| Packet forwarding rate | 41.66 Mpps |
| Mac address table | 8K entries |
| Packet buffer memory | 4.1 Mbit |
| Jumbo frame | 9 KB |
| L2/l2+ features | 16 IPv4/IPv6 Interfaces • 32 IPv4/IPv6 Static Routes • DHCP Server, Relay, L2 Relay • Spanning Tree, Loopback Detection • Flow Control • LLDP/LLDP-MED |
| Advanced features | IGMP Snooping • Rate Limit • Storm Control • Port Isolation |
| Vlan | Supported |
| Access control list | Time-Range (Time Slice, Week, Absolute) • Combined ACL (MAC, IP, VLAN ID, EtherType, TCP/UDP Ports) • IPv6 ACL • Permit/Deny Rules • Port and VLAN Binding |
| Ipv6 support | Yes |
| Link aggregation | Supported |
| Centralized management | Festa App • Festa Web Portal |
| Cloud access | Free Cloud Access |
| Other management features | Zero-Touch Provisioning (ZTP) • Self-Organizing Network (SON) • Auto Topology • Multi-site Management • Remote Maintenance • Batch Firmware Upgrading • Batch Configuration • Integrated Troubleshooting • Network Monitoring and Alerts |
| Package contents | Festa FS328GP • Power Cord • Installation Guide • Rackmount Kit • Silicon Feet |
| System requirements | Windows® 98SE/NT/2000/XP/Vista/7/8/10/11, macOS, NetWare®, UNIX®, Linux |
| Operating temperature | 0–50 ℃ (32–122 ℉) |
| Storage temperature | -40–70 ℃ (-40–158 ℉) |
| Operating humidity | 10–90% RH non-condensing |
| Storage humidity | 5–90% RH non-condensing |
| Title configuration | 4 SFP Slots; L2+/L3 Features; Free Cloud Management; Rackmount Design; White |
| Listed features | 24× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX); 16 IPv4/IPv6 Interfaces; 32 IPv4/IPv6 Static Routes; DHCP Server, Relay, L2 Relay; Port & VLAN Binding IPv6 Support Yes Link Aggregation Supported Management Centralized Management; Festa FS328GP |
Choosing this product
Compare port speeds and uplink types. For PoE devices, check both the per-port limit and the total power budget against the connected equipment.
