Description for Ubiquiti Pro Max 16 Switch, 84 Gbps Switching Capacity, 62.496 Mpps Forwarding Rate, 1.3″ Touch Display, Ethernet In-Band, Gray | USW-Pro-Max-16
Pro Max 16

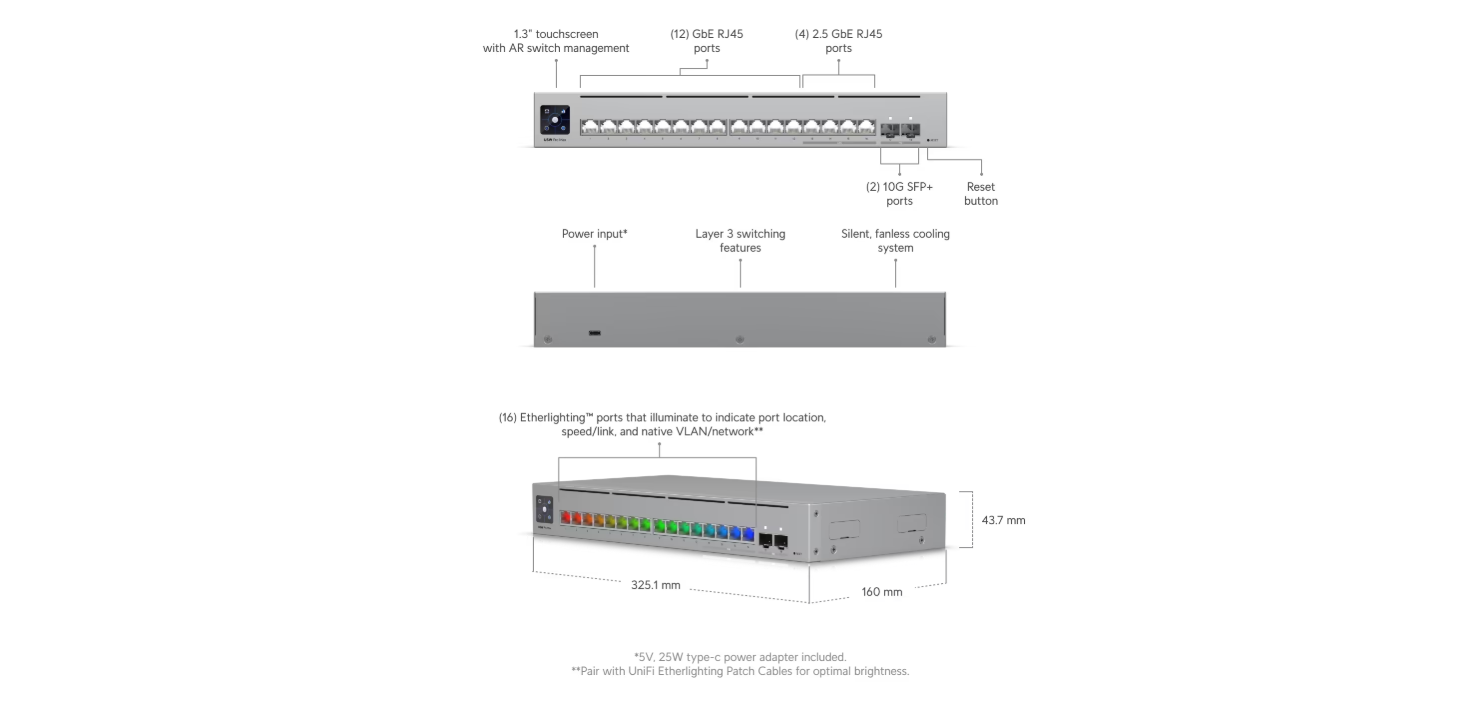

A 16-port, Layer 3 Etherlighting™ switch 2.5 GbE and versatile mounting options.
Specifications
| Mechanical | |
| Dimensions | 325.1 × 160 × 43.7 mm (12.8 × 6.3 × 1.7″) |
| Weight | 1.95 kg (4.3 lb) |
| Enclosure Material | SGCC steel |
| Hardware | |
| Management Interface | Ethernet In-Band |
| Networking Interface | (12) GbE RJ45 ports, (4) 1/2.5 GbE RJ45 ports, (2) 10G SFP+ ports |
| Total Non-blocking Throughput | 42 Gbps |
| Switching Capacity | 84 Gbps |
| Forwarding Rate | 62.496 Mpps |
| Power Method | Type-C adapter |
| Power Supply | 5V, 25W |
| Max. Power Consumption | 25W |
| LCM Display | (1) 1.3″ touchscreen |
| Button | Factory reset |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 Features | IGMP snooping, STP/RSTP with priorities, port isolation, storm control, voice VLAN, port mirroring, LACP port aggregation, multicast/broadcast rate limiting, MAC address blocking, flow control, 802.1X control, jumbo frames, proprietary loop protection, DHCP snooping/guarding, egress rate limit, LLDP-MED, port restricted by MAC, device isolation with ACLs |
| Layer 3 Features | DHCP for locally-managed networks, DHCP relay, inter-VLAN routing on the same switch, static routing between local networks, network isolation with ACLs |
| Etherlighting™ | |
| Ethernet | Locating, speed/link, native VLAN/network |
| SFP+ | Locating, speed/link, native VLAN/network |
| Application Requirements | |
| UniFi Network | Version 8.1.127 and later |
