Product overview

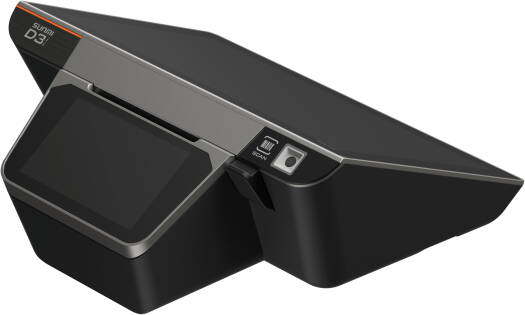

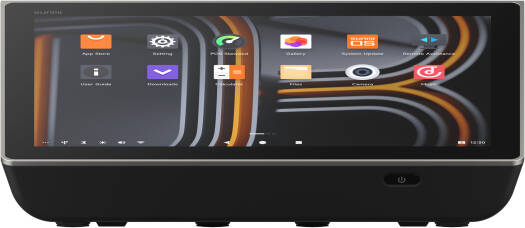

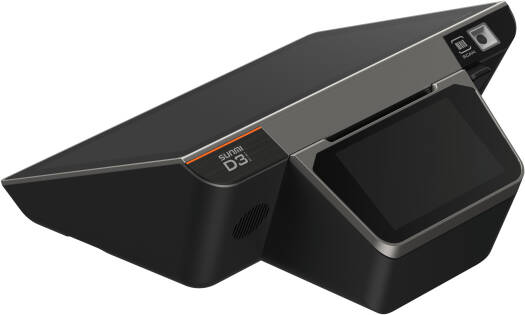

SUNMI D3 MINI T1731 Desktop Terminal for the stated point-of-sale or data-capture task.
Configuration and features: 10.1" HD IPS Touch & 4" WXGA IPS Touch Display; Built-In 80mm Thermal Printer; 250mm/s Print Speed; 1D/2D Barcode Reading; Black.
Product details: processor: Qualcomm hexa-core, up to 2.4GHz; memory: 3GB RAM + 32GB ROM; product model: Config.2: T1731; os: SUNMI OS (based on Android 13).
Specifications
| Brand | Sunmi |
|---|---|
| Product reference | P01260022/P01260017 |
| Product type | point-of-sale terminal |
| Product model | Config.2: T1731 |
| Os | SUNMI OS (based on Android 13) |
| Processor | Qualcomm hexa-core, up to 2.4GHz |
| Memory | 3GB RAM + 32GB ROM |
| Display | Main: 10.1" IPS HD, 800×1280, 300 nits, 10-point capacitive touch screen Secondary: 4" IPS, WVGA, 480×800, 300 nits, capacitive touch screen |
| Printer | Built-in 80mm thermal printer, Auto cutter, Print speed: 250mm/s, Service life: 150Km, Paper roll OD: 60mm |
| Card reader | Supports Type AandB, Mifare, Felica cards, Complies with ISO/IEC 14443, ISO 15693, Read distance: 0-4cm |
| Scanner | 1MP built-in scanner for 1D/2D barcode reading |
| Psam card slot | 2×PSAM, 3.0V supported |
| Sim card slot | 2×SIM, 1.8V/3.0V supported |
| Speaker | 1× 3W |
| Network | 2G, 3G, 4G |
| Wi-fi | 2.4GHz and 5GHz, IEEE 802.11 a/b/g/n/ac supported |
| Bluetooth | Bluetooth 2.1/3.0/4.2/5.0, BLE supported |
| Indicator light | Blue (Power) |
| Button | 1× Power button (lock screen), 1× Reset button (hidden) |
| Ports | 3× USB 2.0 Type A, 1× RJ11 serial, 1× RJ12 cash drawer, 1× RJ45 LAN, 1× Audio jack, 1× Power port, 1× MicroUSB debug (hidden) |
| Power adapter | Input: AC 100~240V/1.7A, Output: DC 24V/1.5A/60W |
| Weight | 1.4kg |
| Environment | Operating temp: 0°C~40°C, Storage temp: -20°C~60°C |
| Dimensions (l×w×h) | 250×231×108mm |
| Config.2 | T1731 |
| Main | 10.1" IPS HD, 800×1280, 300 nits, 10-point capacitive touch screen |
| Secondary | 4" IPS, WVGA, 480×800, 300 nits, capacitive touch screen |
| Built-in 80mm thermal printer, auto cutter, print speed | 250mm/s, Service life: 150Km, Paper roll OD: 60mm |
| Input | AC 100~240V/1.7A, Output: DC 24V/1.5A/60W |
| Operating temp | 0°C~40°C, Storage temp: -20°C~60°C |
| Title configuration | 10.1" HD IPS Touch & 4" WXGA IPS Touch Display; Built-In 80mm Thermal Printer; 250mm/s Print Speed; 1D/2D Barcode Reading; Black |
Choosing this product
Compare operating system, display, memory and peripheral connections. Confirm which printer, scanner and software components are included.
