Product overview

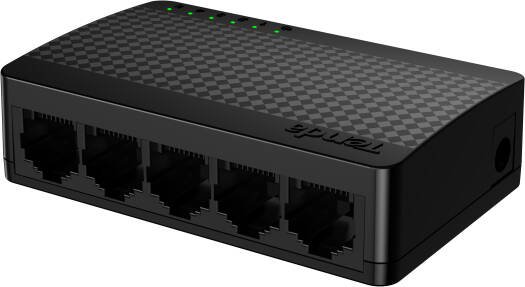

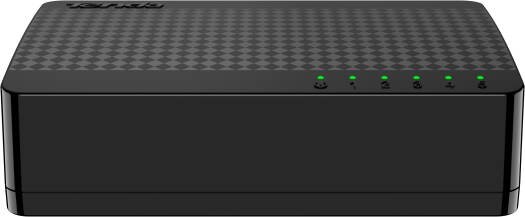

Tenda SG105M Switch for connecting network devices.
Configuration and features: 5x Ethernet Ports; IEEE802.3 u/x /ab Network Standards; 10Gbps Switch Capacity; 7.44Mpps Forwarding Rate; Plug-and-Play; Black.
Product details: network standards: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab; led indicators: One Link/Act LED indicator per Gigabit port; interfaces: 5 x 10/100/1000Base-T Ethernet ports; transmission media: Ethernet: CAT3 UTP or better.
Specifications
| Brand | Tenda |
|---|---|
| Product reference | SG105M |
| Product type | network switch |
| Network standards | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab |
| Led indicators | One Link/Act LED indicator per Gigabit port |
| Interfaces | 5 x 10/100/1000Base-T Ethernet ports |
| Transmission media | Ethernet: CAT3 UTP or better |
| Dimensions | 82mm x 52mm x 22mm (L x W x H) |
| Material | Plastic |
| Forwarding mode | Store-and-forward |
| Switch capacity | 10Gbps |
| Packet forwarding rate | 7.44Mpps |
| Buffer | 1Mb |
| Mac address table | 2K |
| Jumbo frame | 15K |
| Power | Input: 100-240V AC 50/60Hz |
| Mounting | Desktop: Supported |
| Environment | Operating Temperature: 0°C – 45°C |
| Mac address learning | Auto-learning and Auto-updating |
| Functions | Plug-and-play |
| Ethernet | CAT3 UTP or better |
| Fast ethernet | CAT5 UTP or better |
| Gigabit ethernet | CAT5e UTP or better |
| Input | 100-240V AC 50/60Hz |
| Output | 5.0V 0.6A (External Power Adapter) |
| Power consumption | Max < 1.7W |
| Desktop | Supported |
| Wall | Supported |
| Rack | Not Supported |
| Operating temperature | 0°C – 45°C |
| Storage temperature | -40°C – 70°C |
| Operating humidity | 10% – 90% RH, non-condensing |
| Storage humidity | 5% – 90% RH, non-condensing |
| Title configuration | 5x Ethernet Ports; IEEE802.3 u/x /ab Network Standards; 10Gbps Switch Capacity; 7.44Mpps Forwarding Rate; Plug-and-Play; Black |
Choosing this product
Compare port speeds and uplink types. For PoE devices, check both the per-port limit and the total power budget against the connected equipment.
