Product overview

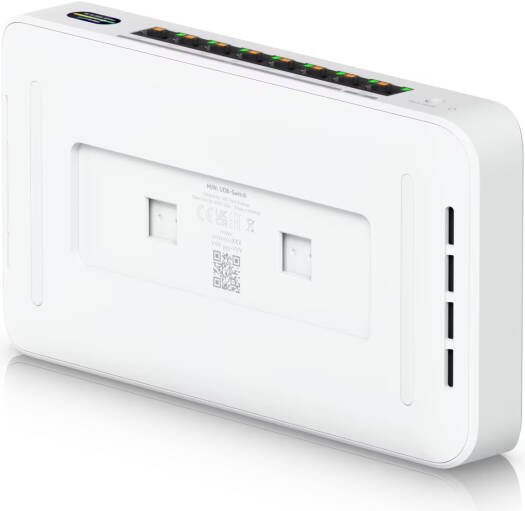

Ubiquiti UniFi Device Bridge Switch UDB-Switch WiFi 7 PoE+ Switch 10GbE + 2.5GbE Ports Wireless for connecting network devices.
Configuration and features: White.
Product details: dimensions: 212.9 x 113 x 32.5 mm (8.4 x 4.4 x 1.3"); wifi standard: WiFi 7; spatial streams: 4; mounting: Desktop, wall.
Specifications
| Brand | Ubiquiti |
|---|---|
| Product type | network switch |
| Dimensions | 212.9 x 113 x 32.5 mm (8.4 x 4.4 x 1.3") |
| Wifi standard | WiFi 7 |
| Spatial streams | 4 |
| Mounting | Desktop, wall |
| Power method | DC jack (54V DC/1.1A) |
| Power supply | 54V DC/1.1A (adapter included) |
| Mimo (6 ghz) | 2 x 2 |
| Mimo (5 ghz) | 2 x 2 |
| Max data rate (6 ghz) | 5.8 Gbps (BW320) |
| Max data rate (5 ghz) | 4.3 Gbps (BW240) |
| Antenna gain (6 ghz) | 8 dBi |
| Antenna gain (5 ghz) | 8 dBi |
| Max tx power (6 ghz) | 23 dBm |
| Max tx power (5 ghz) | 26 dBm |
| Max conducted tx power | 26 dBm (combined) |
| Wifi 7 data rates (6 ghz) | 7.3 Mbps – 5.8 Gbps (MCS0–MCS13, NSS1/2, EHT 20/40/80/160/320) |
| Wifi 7 data rates (5 ghz) | 7.3 Mbps – 4.3 Gbps (MCS0–MCS13, NSS1/2, EHT 20/40/80/160/240) |
| Wifi 6 data rates | 7.3 Mbps – 2.4 Gbps (MCS0–MCS11, NSS1/2, HE 20/40/80/160) |
| Wifi 5 data rates | 6.5 Mbps – 1.7 Gbps (MCS0–MCS9, NSS1/2, VHT 20/40/80/160) |
| Wifi 4 data rates | 6.5 Mbps – 300 Mbps (MCS0–MCS15, HT 20/40) |
| Wireless security | WPA3 SAE (always on) |
| Max power consumption | 25W (excluding PoE output) |
| Supported voltage range | 42.5–57V DC |
| Networking interface | (1) 10 GbE RJ45, (7) 2.5 GbE RJ45 |
| Poe interface | (8) PoE+ ports |
| Max poe per port | 30W |
| Total poe availability | 60W (35W / 185W depending on adapter) |
| Antennas | Internal (1) |
| Management | Ethernet, WiFi |
| Channel bandwidth | 20/40/80/160/240/320 MHz |
| Weight (device) | 548 g (1.21 lb) |
| Weight (with mount) | 563 g (1.24 lb) |
| Enclosure material | Polycarbonate |
| Mount material | Polycarbonate |
| Lcm display | 0.96" status display |
| Button | 1 × Factory reset |
| Ndaa compliant | Yes |
| Operating frequency | 5150–5875 MHz, 5945–7125 MHz |
| Operating temperature | -30 to 40°C (-22 to 104°F) |
| Operating humidity | 5 to 95% noncondensing |
| Software requirement | UniFi Network v10.0.156 or later |
| Title configuration | White |
Choosing this product
Compare port speeds and uplink types. For PoE devices, check both the per-port limit and the total power budget against the connected equipment.
