Product overview

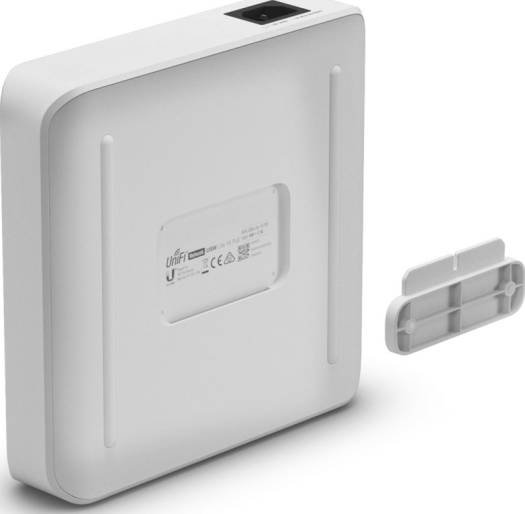

Ubiquiti USW-Lite-16-PoE UniFi 16-Port Cloud Managed Desktop Gigabit PoE+ Switch w/ 8 x PoE+ Ports for connecting network devices.
Features: 16 x Gigabit Ethernet Ports; 8 x PoE+ Compliant Ports; 16 Gb/s Switching Capacity; 45W Power Budget.
Configuration and features: 45W Power Budget; 16 Gb/s Switching; Supports UniFi Network Controller.
Product details: dimensions: 192 x 185 x 44 mm (7.6 x 7.3 x 1.7"); weight: 1.2 kg (2.6 lb); enclosure material: Polycarbonate; management interface: Ethernet In-Band.
Specifications
| Brand | Ubiquiti |
|---|---|
| Product reference | USW-Lite-16-PoE |
| Product type | network switch |
| Dimensions | 192 x 185 x 44 mm (7.6 x 7.3 x 1.7") |
| Weight | 1.2 kg (2.6 lb) |
| Enclosure material | Polycarbonate |
| Management interface | Ethernet In-Band |
| Networking interface | (16) GbE RJ45 ports |
| Poe interface | (8) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Total non-blocking throughput | 16 Gbps |
| Switching capacity | 32 Gbps |
| Power method | Universal input, 100—240V AC |
| Power supply | AC/DC, internal, 60W |
| Max. power consumption | 15W (Excluding PoE output) |
| Total available poe | 45W |
| Max. poe wattage per port by pse | PoE+: 30W |
| Button | Factory reset |
| Operating temperature | -15 to 40° C (5 to 104° F) |
| Operating humidity | 10 to 90% noncondensing |
| System | Status |
| Ethernet | PoE Speed/link/activity |
| Poe | Link/activity |
| Unifi network | Version 7.2.94 and later |
| Poe+ | 30W |
| Title configuration | 45W Power Budget; 16 Gb/s Switching; Supports UniFi Network Controller |
| Listed features | 16 x Gigabit Ethernet Ports; 8 x PoE+ Compliant Ports; 16 Gb/s Switching Capacity; 45W Power Budget |
Choosing this product
Compare port speeds and uplink types. For PoE devices, check both the per-port limit and the total power budget against the connected equipment.
