Description
Description

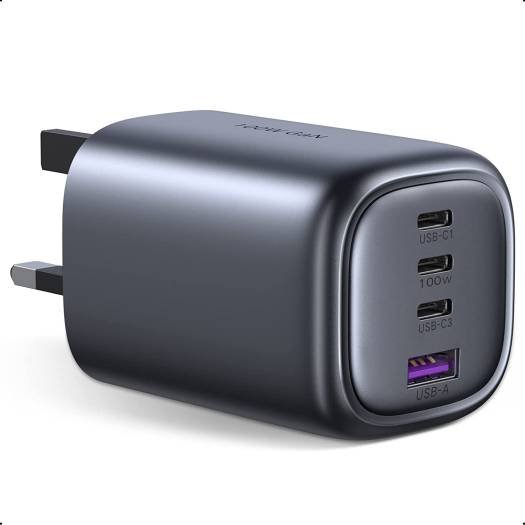

The UGREEN Nexode 100W 4-Port GaN Fast Charger (Model: 40749) is a high-density, multi-device power adapter designed to centralize and accelerate the charging of modern electronics. Engineered around 3rd Generation Gallium Nitride (GaN) semiconductor technology via the Navitas GaN Power IC, this premium desktop/wall hub delivers immense power out of a remarkably compact footprint, running significantly cooler and boasting an 80% reduction in power loss compared to legacy silicon-based blocks.
Specifications
| Feature | Specification |
| Product Category | High-Density Multi-Port GaN Desktop/Wall Fast Charger |
| Brand / Collection | UGREEN Nexode Series |
| Model / SKU | 40749 (Alternative: CD226) |
| Input Infrastructure | 100-240V ~ 50/60Hz, 2.3A Max (Universal Voltage) |
| Interface Port Layout | 4 Ports: 3x USB Type-C, 1x USB Type-A (3C1A Layout) |
| Core Semiconductor Tech | 3rd Generation Gallium Nitride (GaN) via Navitas Power IC |
| Fast Charging Protocols |
USB-C: PD 3.0/2.0, QC 4.0+/3.0/2.0, PPS, AFC, Apple 5V2.4A, BC1.2
USB-A: SCP, QC 3.0, AFC, FCP, Apple 5V2.4A, BC1.2 |
| Single Port Max Output |
USB-C1 / USB-C2: Up to 100W Max
USB-C3: Up to 22.5W Max
USB-A: Up to 22.5W Max |
| USB-C1/C2 Profiles | 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A (100W Max) |
| USB-C3 Voltage Profiles | 5V/3A, 9V/2.5A, 12V/1.88A (22.5W Max) |
| USB-A Voltage Profiles | 4.5V/5A, 5V/4.5A, 5V/3A, 9V/2EX, 12V/1.5A (22.5W Max) |
| Total Combined Wattage | 100W Max (Intelligent SmartCharge Dynamic Allocation) |
| Thermal Monitoring System | Thermal Guard™ Active Protection (800 readings per second) |
| Circuit Protections | Input Overvoltage, Output Overcurrent, Overvoltage, Short Circuit |
| Enclosure Composition | Fire-retardant PC (UL94-V0 Rated) Structural Shell |
| Device Compatibility | MacBook Pro/Air, iPad Pro/Air, iPhone 14/15 Pro Max, Galaxy S23/S24, Steam Deck, Switch |

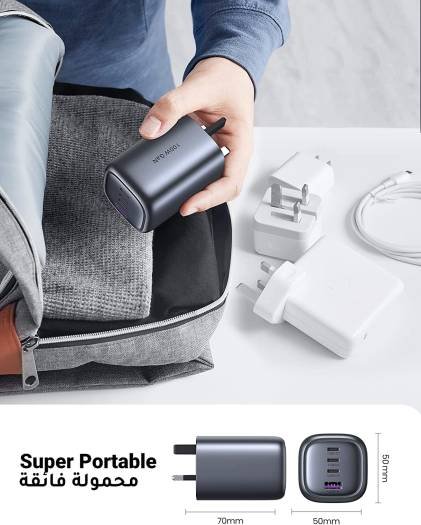

| Unit Dimensions | 92.2 mm × 50.1 mm × 50.1 mm |
| Unit Net Weight | 271 grams |
