Product overview

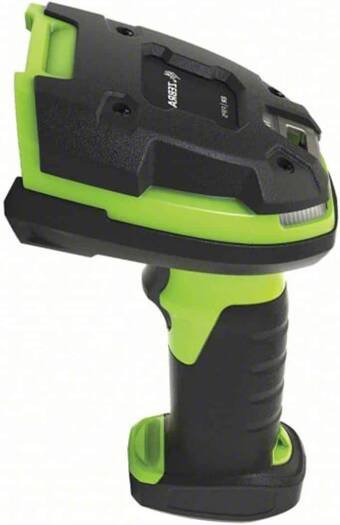

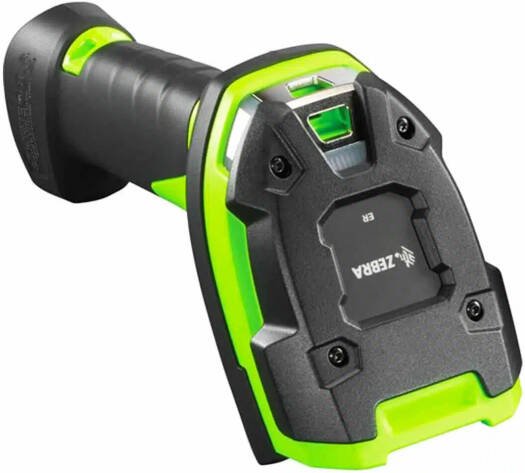

Zebra DS3608-HP Wired Handheld Barcode Scanner for capturing the stated document or barcode data.
Configuration and features: 1D & 2D Scanner Type; Laser Sensor Type; 1280 pixels Sensor Resolution; Wired Connectivity; Black / Green.
Product details: optical sensor resolution: 1280 pixels; scanner type: 1D/2D; sensor type: Laser; linear (1d) barcodes supported: Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.
Specifications
| Brand | ZEBRA |
|---|---|
| Product reference | DS3608-HP3U4602VZW |
| Product type | scanner |
| Optical sensor resolution | 1280 pixels |
| Scanner type | 1D/2D |
| Sensor type | Laser |
| Linear (1d) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C |
| Wavelength | 655 nm |
| Tilt reading angle | -65° to 65° |
| Pitch reading angle | -65° to 65° |
| Yaw reading angle | -45° to 45° |
| Connectivity technology | Wired |
| Standard interfaces | RS-232, USB, Keyboard wedge |
| International protection (ip) code | IP67 |
| Protection features | Dust resistant, Shock resistant, Water resistant |
| Led indicators | Yes |
| Product colour | Black, Green |
| Performance | Programming function |
| Power source type | Battery |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 3100 mAh |
| Number of reads per charge | 70,000 |
| Width | 132 mm |
| Depth | 76 mm |
| Height | 185 mm |
| Weight | 309 g |
| Operating temperature (t-t) | -30°C to 50°C |
| Storage temperature (t-t) | -40°C to 70°C |
| Operating relative humidity (h-h) | 5% – 95% |
| Title configuration | 1D & 2D Scanner Type; Laser Sensor Type; 1280 pixels Sensor Resolution; Wired Connectivity; Black / Green |
Choosing this product
Check the supported document or code types, connection and software compatibility. Confirm whether a stand, cable or receiver is included.
