Product overview

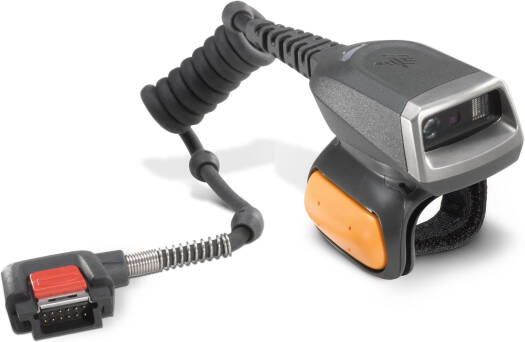

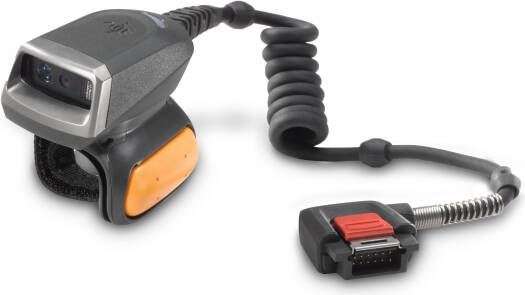

Zebra RS5000 Barcode Scanner for capturing the stated document or barcode data.
Configuration and features: 1D; 2D & Omnidirectional Scanner Capabilities; Laser & Linear Scanner Type; Imager Sensor; SE4710 Engine; Dark Gray.
Product details: connectivity technology: Cable; scanning capability: 1D, 2D; scan engine model: SE4710; image sensor type: Imager.
Specifications
| Brand | ZEBRA |
|---|---|
| Product reference | RS5000-LCFSWR |
| Product type | scanner |
| Connectivity technology | Cable |
| Scanning capability | 1D, 2D |
| Barcode symbology supported | 1D: Code 39, Code 128, Code 93, Codebar/NW7, Code 11, MSI, UPC/EAN, I 2 of 5, Korean 3 of 5, GSI DataBar, Base 32 (Italian Pharma) 2D: PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes |
| Scan engine model | SE4710 |
| Image sensor type | Imager |
| Scan rate | 116 scan/s |
| Scan pattern | Omni-directional |
| Scanner range | Standard Range |
| Scanning distance | 25" |
| Cable type included | USB |
| Field of view (horizontal) | 42° |
| Field of view (vertical) | 28° |
| Reading angle (skew) | 60° |
| Reading angle (pitch) | 60° |
| Reading angle (roll) | 360° |
| Maximum ambient light | 96900 lux |
| Drop specification | Multiple 4 ft. /1.2 m drops to concrete over the operating temperature range |
| Minimum element resolution (code 39) | 5 mil |
| Maximum element resolution (code 39) | 20 mil |
| Maximum element resolution (datamatrix) | 10 mil |
| Maximum element resolution (pdf417) | 5 mil |
| Rugged | Yes |
| Product color | Dark Gray |
| Width | 1.3" |
| Depth | 1.1" |
| Length | 2" |
| Weight (approximate) | 2.68 oz |
| Title configuration | 1D; 2D & Omnidirectional Scanner Capabilities; Laser & Linear Scanner Type; Imager Sensor; SE4710 Engine; Dark Gray |
Choosing this product
Check the supported document or code types, connection and software compatibility. Confirm whether a stand, cable or receiver is included.
