Product overview

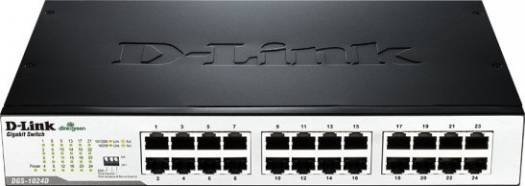

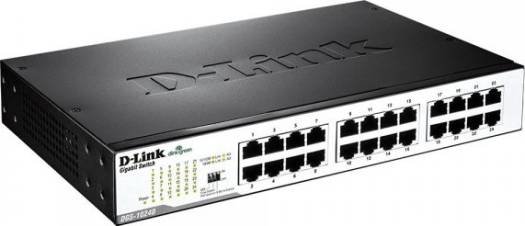

D-Link 24-Port Gigabit Unmanaged Desktop Switch for connecting network devices.
Configuration and features: 24x 10/100/1000 Mbps Ports; 48 Gbps Switching Capacity; 35.71 Mpps Forwarding Rate; CSMA/CD Protocol; Black.
Product details: number of ports: 24 10/100/1000 Mbps ports; d-link green features: Power saving by link status and cable length; security: Storm Control; qos (quality of service): 802.1p priority 8 queues.
Specifications
| Brand | D-Link |
|---|---|
| Product reference | DGS-1024D |
| Product type | network switch |
| Number of ports | 24 10/100/1000 Mbps ports |
| Standards | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.1p QoS IEEE 802.3x Flow Control Auto-negotiation IEEE 802.3az EEE |
| Data transfer rates | Ethernet: 10/20 Mbps (half/full-duplex) Fast Ethernet: 100/200 Mbps (half/full-duplex) Gigabit Ethernet: 2000 Mbps (full-duplex) |
| Network cables | Ethernet: 2-pair UTP Cat.3/4/5/5e Fast Ethernet: 2-pair UTP Cat.5/5e Gigabit Ethernet: 4-pair UTP Cat.5/5e |
| D-link green features | Power saving by link status and cable length |
| Security | Storm Control |
| Qos (quality of service) | 802.1p priority 8 queues |
| Cable diagnostics | Indicated through port LEDs |
| Protocol | CSMA/CD |
| Switching capacity | 48 Gbps |
| Max. forwarding rate | 35.71 mpps |
| Packet buffer ram | 512 KBytes per device |
| Filtering address table | 8K MAC addresses per device |
| Packet filtering/forwarding rate | Ethernet: 14,880 pps per port Fast Ethernet: 148,800 pps per port Gigabit Ethernet: 1,488,000 pps per port |
| Mac address learning | Self-learning, auto-aging |
| Forwarding mode | Store-and-forward |
| Indicator leds | Power LED (per device) Link/Activity/Speed LEDs (per port) |

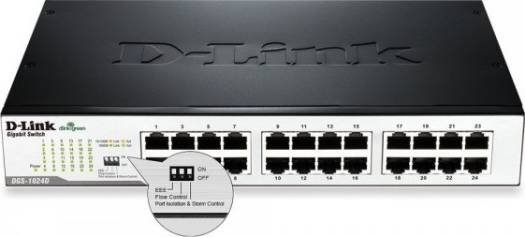

| Dip switch | Energy-Efficient Ethernet (EEE) Flow Control Port Isolation and Storm Control |
| Ac inputs | Internal universal power supply 100~240 V AC; 50 to 60 Hz, 0.3 A max |
| Maximum power consumption | 13.3 W |
| Standby power consumption | 4.4 W |
| Maximum heat dissipation | 45.35 BTU/h |
| Mtbf | 863,100 hours |
| Acoustic value | 0 dB(A) Fanless |
| Dimensions | 280 x 180 x 44 mm (11.02 x 7.09 x 1.73 inch) |
| Weight | 1.30 kg (2.87 lbs) |
| Operating temperature | 0 ºC to 40 ºC (32 ºF to 104 ºF) |
| Storage temperature | -10 ºC to 70 ºC (14 ºF to 158 ºF) |
| Operating humidity | 0% to 95% RH, non-condensing |
| Storage humidity | 0% to 95% RH |
| Safety | cUL/UL CE LVD CCC CB BSMI |
| Title configuration | 24x 10/100/1000 Mbps Ports; 48 Gbps Switching Capacity; 35.71 Mpps Forwarding Rate; CSMA/CD Protocol; Black |
Choosing this product
Compare port speeds and uplink types. For PoE devices, check both the per-port limit and the total power budget against the connected equipment.
