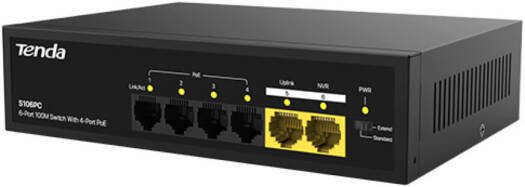

Description for Tenda S106PC 6-Port 10/100/1000Mbps Gigabit Ethernet Desktop Switch with Metal Case and Plug-and-Play Design, 50W Maximum Output Power | S106PC
Tenda
Switch
S106PC is a 100M dual-port uplink unmanaged PoE switch independently designed by Tenda. Compatible with AF/AT standard PoE power supply mode, intelligently identify powered devices. The maximum output of a single port is 30W,and that of the whole machine is 55W. Support 250m network extension, QoS priority and other functions, designed for outdoor, indoor, etc.Small-scale monitoring network needs to be built, it is an ideal choice for small enterprises,convenience stores, and street restaurants video surveillance network.
Specification
| Specification | Details |
|---|---|
| Network Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| LED Indicators | 6 × Link/Act LEDs, 1 × Power LED |
| Interfaces | 4 × 10/100 Base-TX Ethernet Ports (Data/Power) |
| 2 × 10/100 Base-TX Ethernet Ports (Data only) | |
| Transmission Media | Recommended: CAT5/5e UTP or better |
| Dimensions (L×W×H) | 175 × 127 × 43 mm |
| Level of Protection | 4 KV Lightning Protection |
| Forwarding Mode | Store-and-forward |
| Switch Capacity | 1.2 Gbps |
| Packet Forwarding Rate | 0.89 Mpps |
| MAC Address Table | 1K |
| PoE Budget | Compatible with IEEE 802.3af/at, Total 55W |
| Input Voltage | 190–240V AC, 50/60 Hz |
| Mounting | Desktop and Wall Mounting Supported, Rack Not Supported |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, Non-condensing |
| Storage Humidity | 5% to 90% RH, Non-condensing |
