Product overview

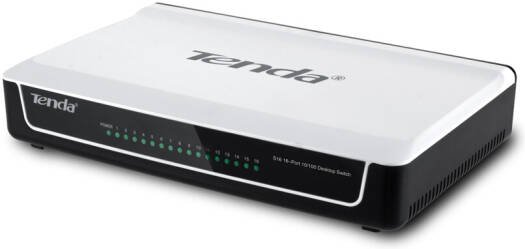

Tenda S16 16-Port 10/100Mbps Switch for connecting network devices.
Configuration and features: 3.2Gbps Switch Capacity; 2.38Mpps Forwarding Rate; 1.25Mb Buffer; Plug And Play; LED Indicator; Desktop & Wall Mounting Support; 30 Pieces; White/Black; S16.
Product details: colour: White/Black; pack quantity: 30 pieces; network standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x; led indicator: 1× Power, 16× Link/Act.
Specifications
| Brand | Tenda |
|---|---|
| Product reference | S16 |
| Product type | network switch |
| Network standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Led indicator | 1× Power, 16× Link/Act |
| Interfaces | 16× 10/100 Base-TX Ethernet ports (Auto MDI/MDIX) |
| Transmission media | Recommended: CAT5/5e UTP or better |
| Dimension | 218.0mm × 135.0mm × 41.6mm |
| Material | Plastic |
| Level of protection | ESD Protection: Air discharge: ±8kV Contact discharge: ±6kV |
| Forwarding mode | Store-and-forward |
| Switch capacity | 3.2Gbps |
| Packet forwarding rate | 2.38Mpps |
| Buffer | 1.25Mb |
| Mac address table | 4K |
| Power | Input: 100-240V AC 50/60Hz Output: 9V 0.6A (External power adapter) |
| Power consumption | / |
| Mounting | Desktop mounting: Supported Wall mounting: Supported Rack mounting: Not Supported |
| Environment | Operating Temperature: 0°C – 45°C Storage Temperature: -40°C – 70°C Operating Humidity: 10% – 90% RH, non-condensing Storage Humidity: 5% – 90% RH, non-condensing |
| Protocols | CDMA/CD |
| Mac address learning | Auto-Learning and Auto-Aging |
| Functions | Plug-and-play |
| Recommended | CAT5/5e UTP or better |
| Air discharge | ±8kV |
| Contact discharge | ±6kV |
| Input | 100-240V AC 50/60Hz |
| Output | 9V 0.6A (External power adapter) |
| Desktop mounting | Supported |
| Wall mounting | Supported |
| Rack mounting | Not Supported |
| Operating temperature | 0°C – 45°C |
| Storage temperature | -40°C – 70°C |
| Operating humidity | 10% – 90% RH, non-condensing |
| Storage humidity | 5% – 90% RH, non-condensing |
| Colour | White/Black |
| Pack quantity | 30 pieces |
| Title configuration | 3.2Gbps Switch Capacity; 2.38Mpps Forwarding Rate; 1.25Mb Buffer; Plug And Play; LED Indicator; Desktop & Wall Mounting Support; 30 Pieces; White/Black; S16 |
Choosing this product
Compare port speeds and uplink types. For PoE devices, check both the per-port limit and the total power budget against the connected equipment.
